Assembly and adjustments

Mounting belt and disc sander to

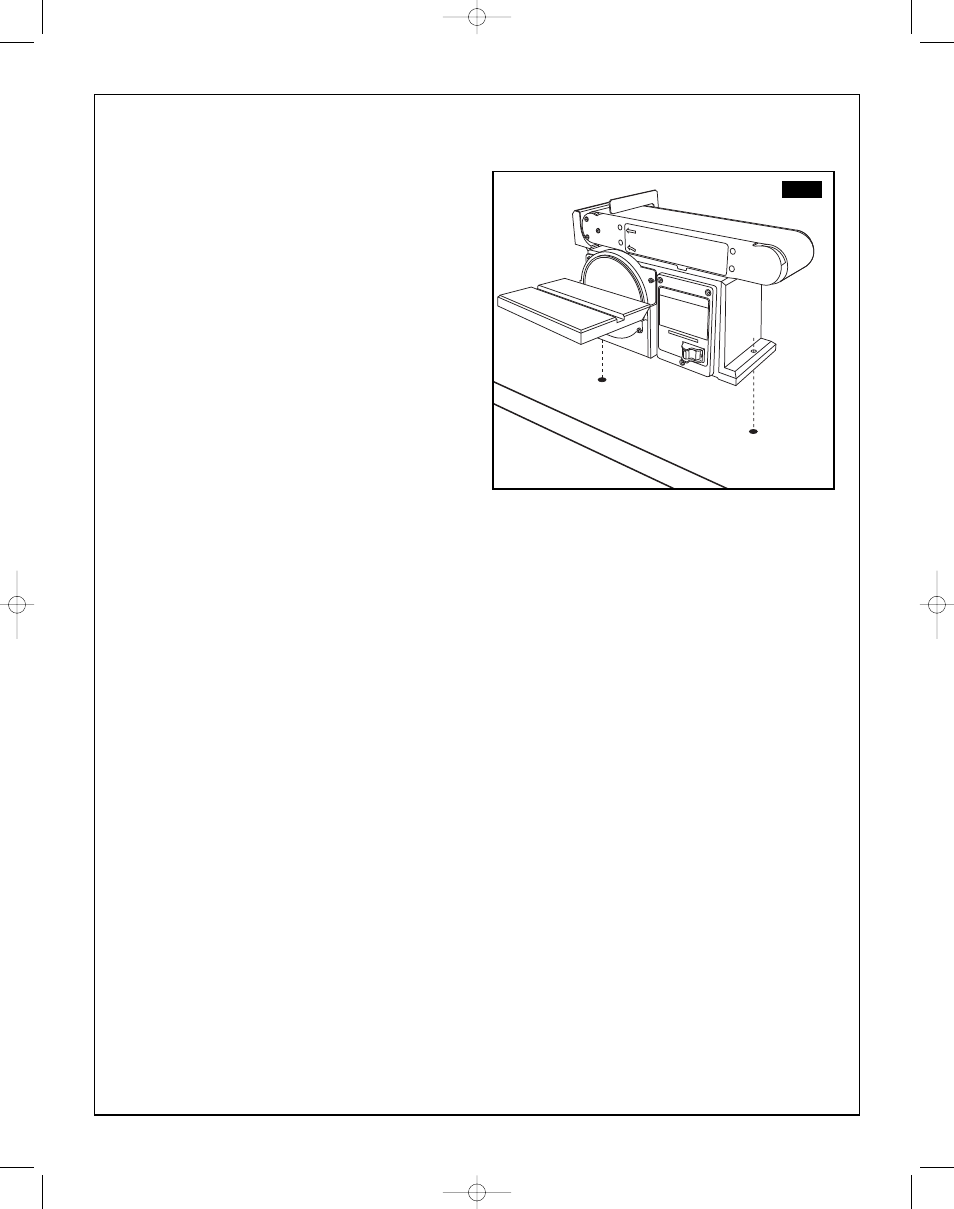

workbench (Fig. 13)

If belt and disc sander is to be used in a permanent
location, it should be fastened securely to a firm
supporting surface such as a workbench.

If mounting to a workbench, holes should be drilled
through supporting surface of the workbench.

1. The unit should be bolted securely using M8

screws and hex nuts (not included). Screw length
should be 38mm plus the thickness of the bench
top.

2. Locate and mark the holes where belt and disc

sander is to be mounted.

3. Drill (2) x 9.5 mm diameter holes though

workbench.

4. Place belt and disc Sander on workbench aligning

holes drilled in workbench.

5. Insert two M8 screws and tighten hex nuts.
