DESCrIPTION

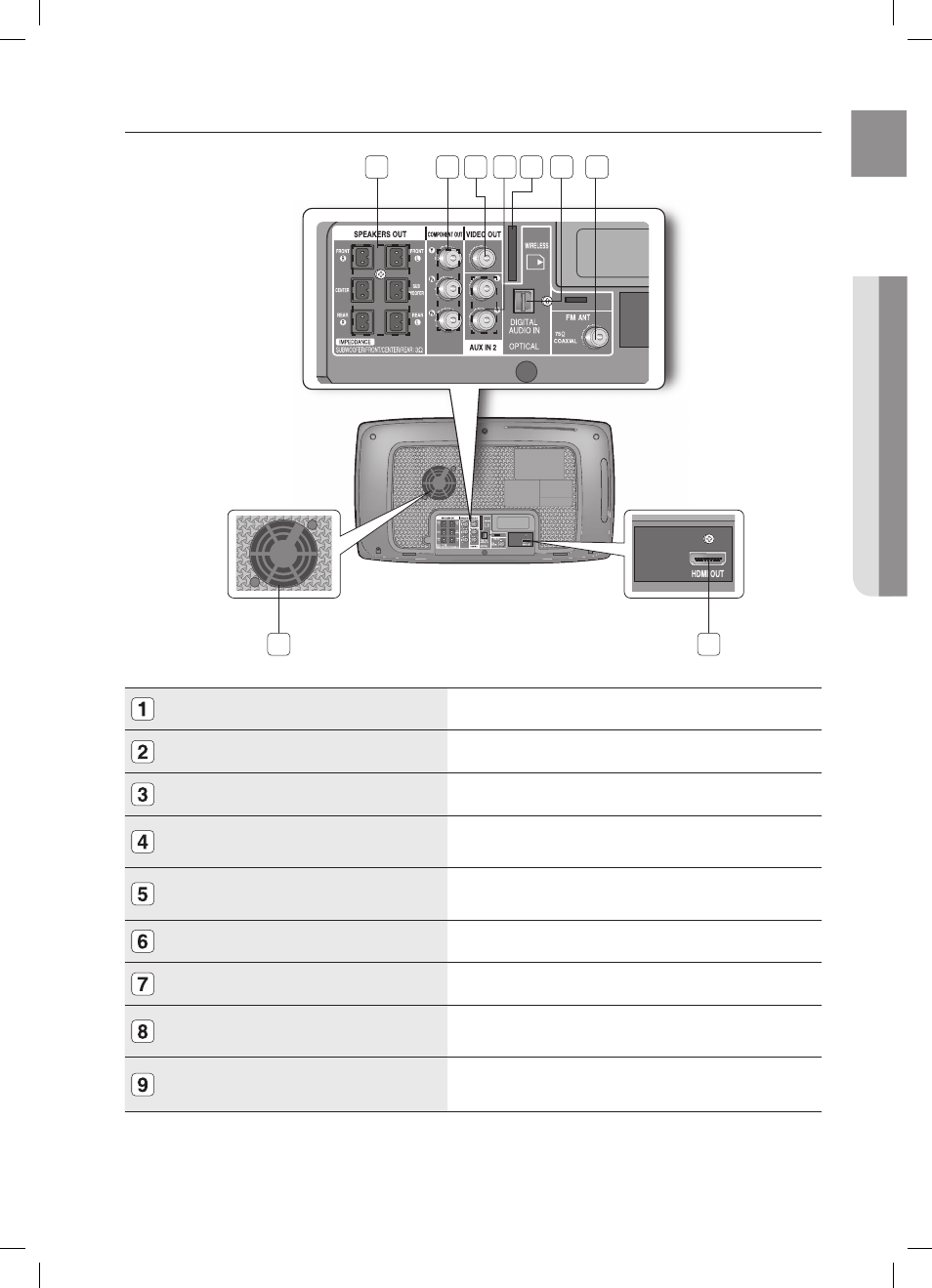

rEAr PANEL
5.1 CHANNEL SPEAKER OUTPUT CONNECTORS Connect the front, centre, rear, subwoofer speakers.
COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.
VIDEO OUTPUT JACK Connect the TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
AUX IN 2 JACKS
Connect to the 2CH analogue output of an external device (such as a
VCR)
TX CARD CONNECTION (WIRELESS)
The TX card enables communication between the main unit and the
optional wireless receiver amplifi er.
EXTERNAL DIGITAL OPTICAL INPUT JACK Use this to connect external equipment capable of digital output.
FM 75Ω COAXIAL JACK Connect the FM antenna.
COOLING FAN
The fan always revolves when the power is on. Ensure a minimum of
10 cm of clear space on all sides of the fan when installing the product.
HDMI OUT JACK
Use the HDMI cable, connect this HDMI output terminal to the HDMI input
terminal on your TV for the best quality picture.
