PMWT-660/680 Installation Guide

11

11. Position the combined brackets over the posts on the wall mount, and use three acorn nuts to

secure them.

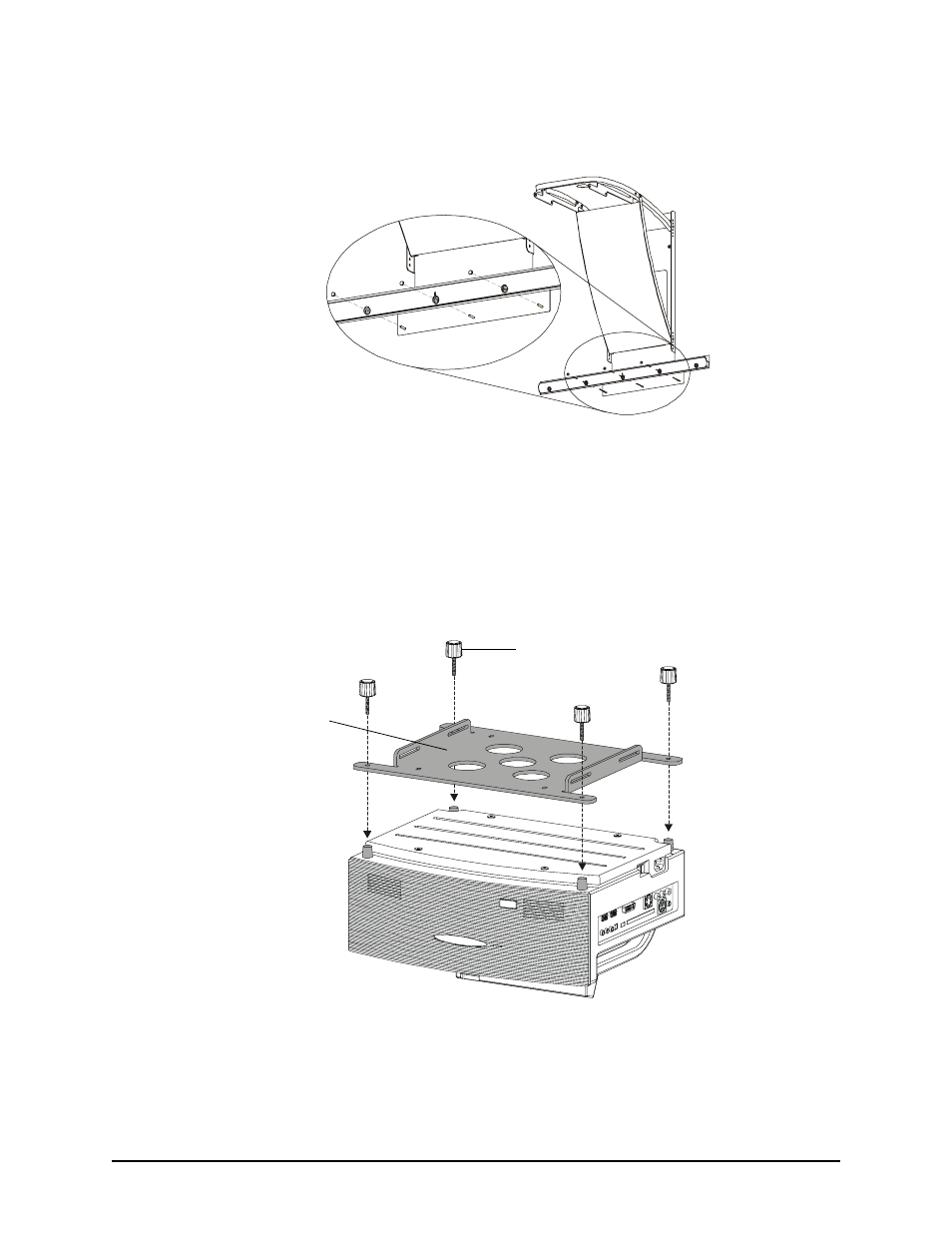

Attaching the Projector Plate to the Projector

1. Close and lock the projector’s mirror cover.

2. Turn the projector over.

3. Remove the projector’s feet.

4. Align the projector plate with the feet position, and replace the feet. The feet attach the

projector plate to the bottom of the projector.

Projector Plate

Projector Feet (Ч4)
