Installation

Remove the bracket by pressing on the arrows and gently pull-

ing out the wide end of the bracket.

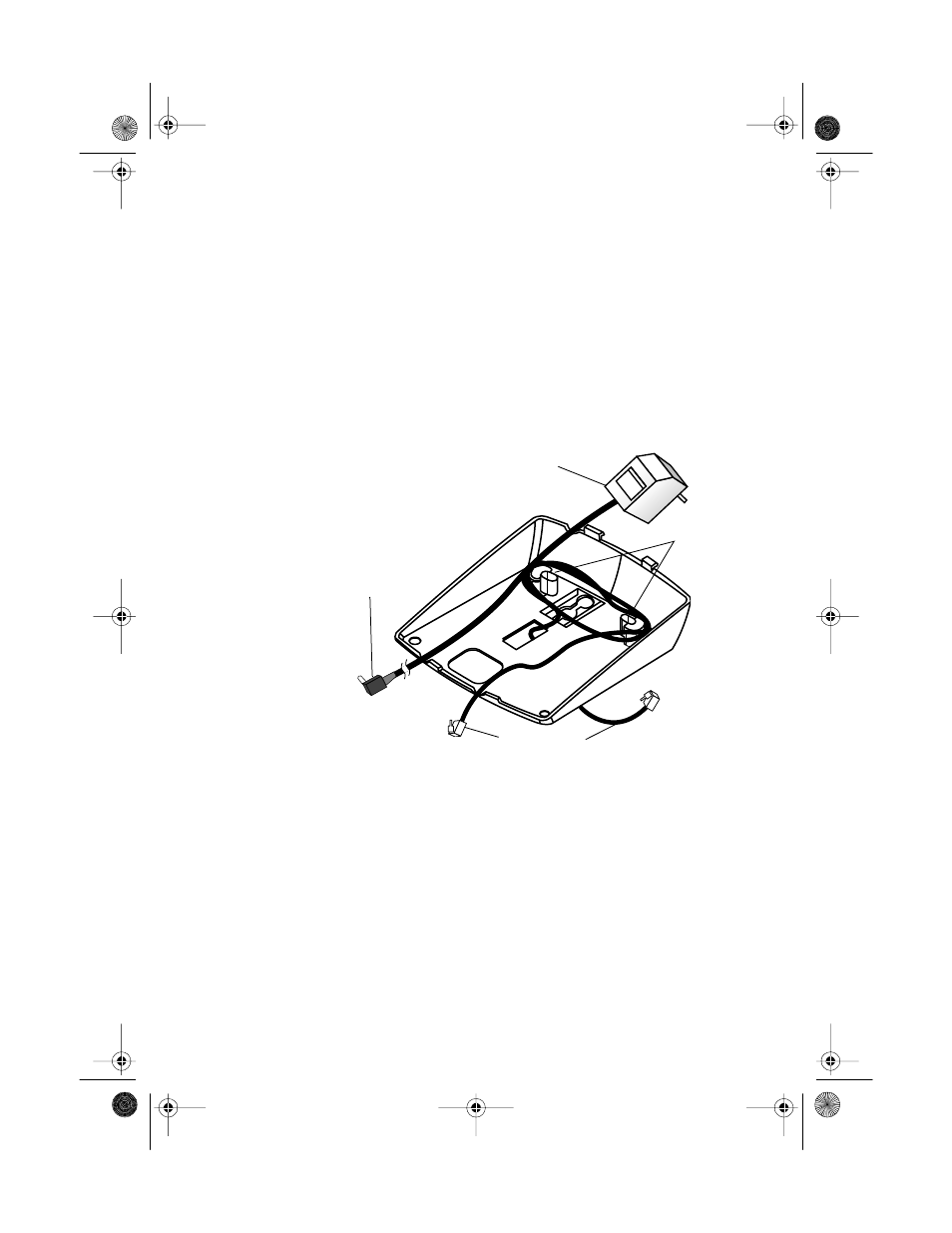

Plug one end of the supplied modular cord into the

TEL LINE

jack. Route the modular cord through the curved channel on the
bottom of the base. Then wrap any excess modular cord around
the two crescent-shaped tabs in the mounting bracket. Plug the
supplied AC adapter’s barrel plug into the

POWER

jack on the back

of the base. Route the adapter cord through the straight channel
on the bottom of the base.

Insert the tabs on the narrow end of the bracket into the upper

slots on the bottom of the base. Insert the loose end of the modular
cord through the center of the bracket. Route the end of the adapt-
er cord through the opening on the wide end of the bracket. Then
push the tabs on the wide end of the bracket into the lower slots on
the bottom of the base.

Plug the modular cord’s other end into the wall plate jack (or a

modular phone line jack), align the base’s keyhole slots with the
wall plate studs (or the screws in the wall), and slide the base
downward to secure it.

Plug the adapter into a standard AC outlet. Raise the base’s

antenna to a vertical position.

Modular Cord

Tabs

Barrel
Plug

AC Adapter
