SHR-1040/1040K USER’S MANUAL
English 5-3
3
Key Functions
● Use the CHANNEL Key when you want to view the channel in full screen.
● Press the desired channel key to view the channel in full screen.
● Audio of the channel is also selected. The S mark appears next to the title of the selected
channel, and the audio of the channel is off.
● Audio recording is available for the one selected channel.

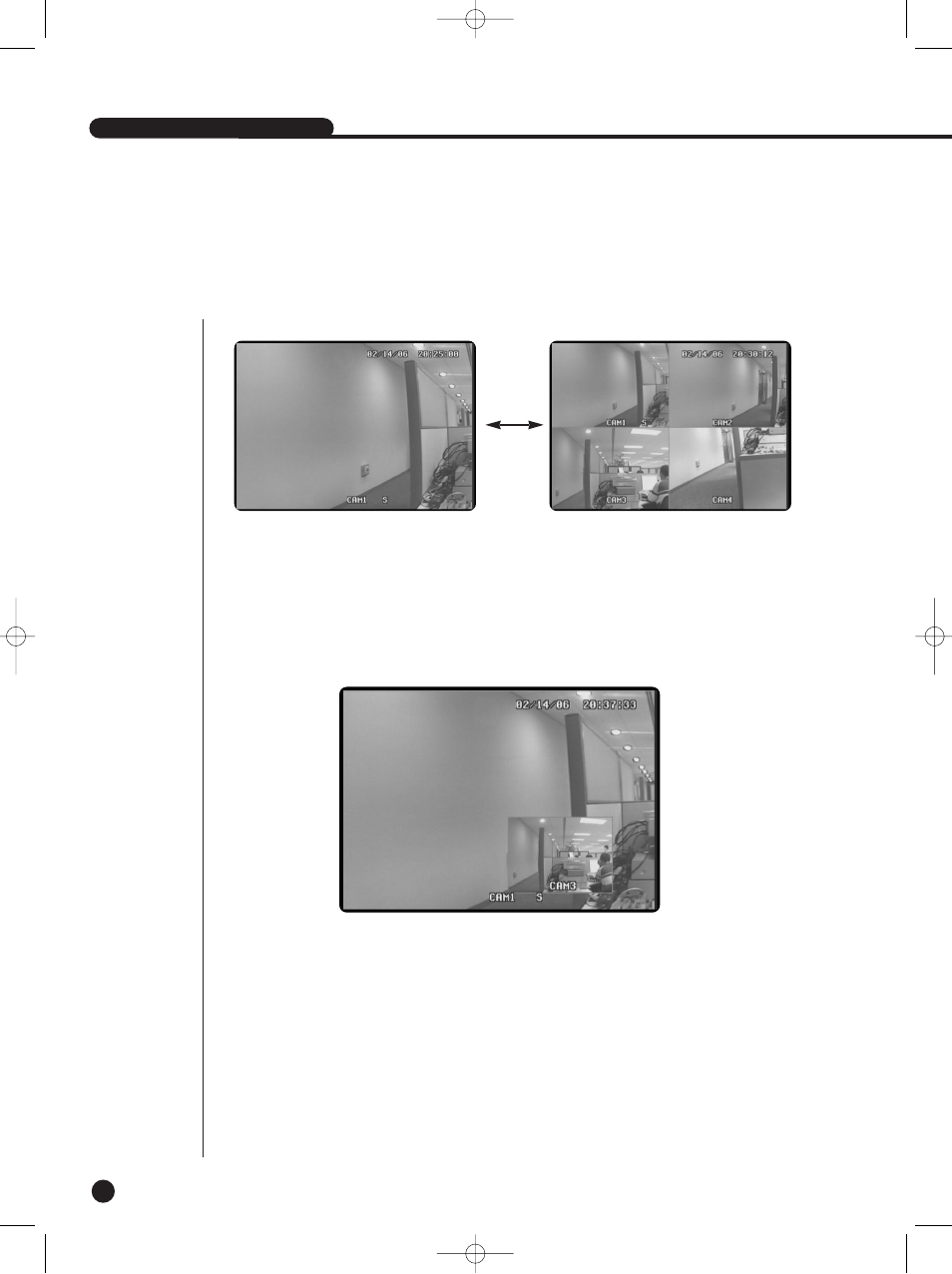

● Press the MODE Key to view the 1CH MODE and the QUAD MODE in turn as shown in the
picture.
● Use the PIP Key to view the main and the sub screen at the same time.
● You can view the two channels when pressing the PIP button in the 1CH mode.
● Press the ENTER Key in PIP mode to switch the main and sub screen.
● Press the PIP Key again to exit the PIP state and enable the Single screen mode.
● Press the FREEZE Key to freeze the main screen only. On the top right of the screen,
‘||’(FREEZE MARK) appears.
● Clear the Freeze before operating another key.
● Press the Sequence Key in the PIP mode PIP to automatically sequence to the sub screen.
(Auto sequence is cleared when pressing the Sequence Key again.)
☛ Sequence in the PIP MAIN CHANNEL 1 screen
SUB2 ➝ SUB3 ➝ SUB4 ➝ SUB2
1. CHANNEL KEY & MODE KEY
2. PIP KEY
