3) installation – Samsung SHR-1040K User Manual
Page 27
English
English
English
3-6

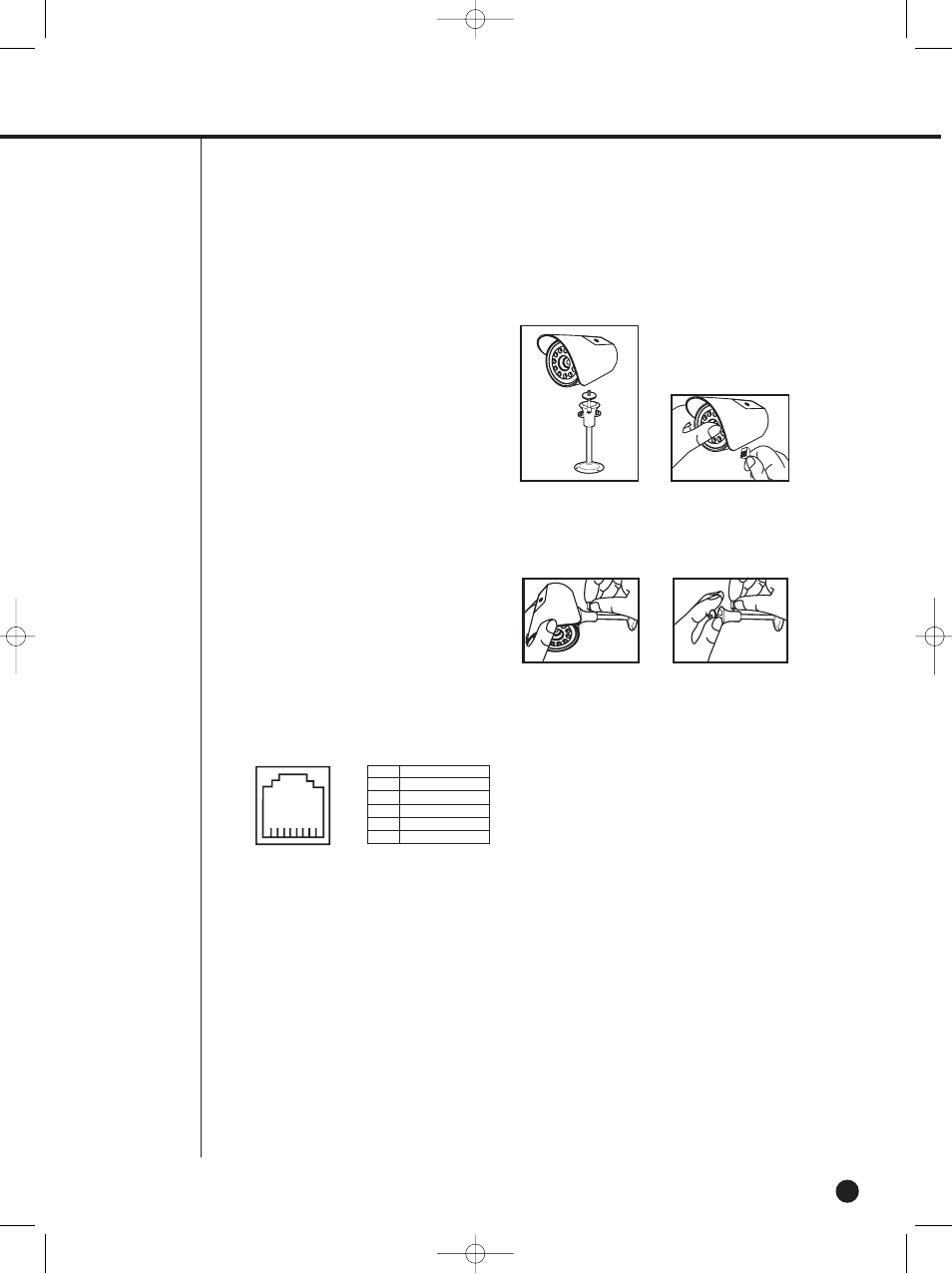

SOC-N120 Pin Configuration
1 SP-
2 VIDEO_OUT
3 GND
4 SP+
5 ALM/AUDIO
6 VDD
3) Installation
1. Make sure the installation location is a place
where 5 times (about 2.2lbs) of the total weight
of the camera can be tolerated before installing
the camera.
2. Connect the cable below the camera after
attaching the provided Mount Bracket to the
desired place.
3. Use the handle on the Mount Bracket to
adjust the direction you want to setup for
monitoring.
SHR-1040/SHR-1040K-ENG 2006.4.4 11:12 AM ˘
`
2-14
