SHR-1040/1040K USER’S MANUAL
English 3-7

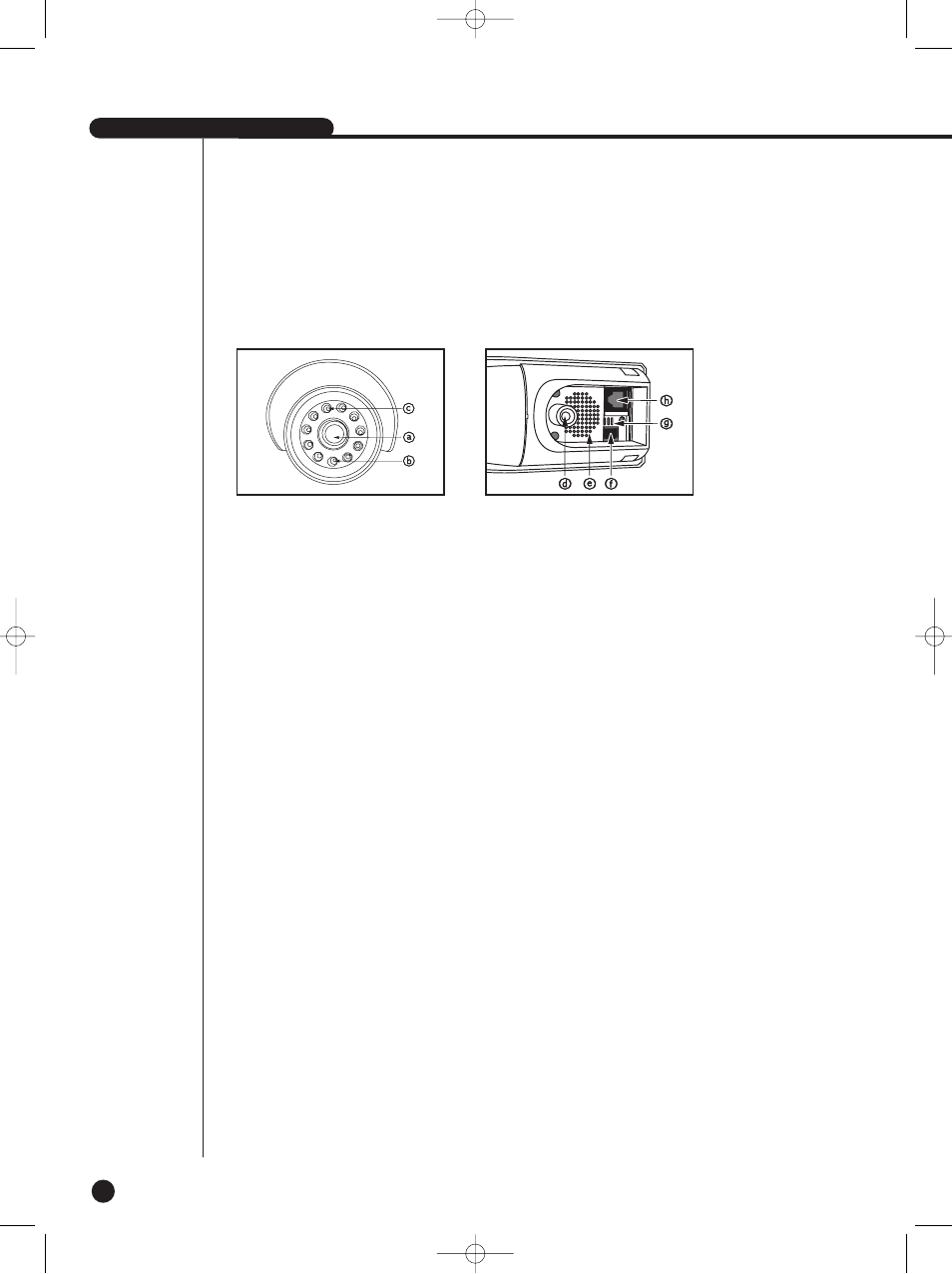

a). Lens
- It has a focal length of 3.8mm and makes it possiblefor you to observe a relatively
wide area.
b). Illumination Sensor
- Detects incoming light to control the IR LED.
c). IR LED
- This is an infrared LED that is controlled by the illumination sensor.
d). Camera fitting groove
- Enables the camera to be fixed onto the bracket. You may install it either above or
below the camera if necessary.
e). Speaker
- Used to connect the sensor to the camera.
f). SENSOR jack
- It outputs the sound signal which was transfered from alarm sensor.
g). Microphone
- Capable of picking up all sound in the vicinity of the camera location and
transmitting to the monitor.
h). 6-pin modular jack
- Used to connect the camera to the monitor or DVR.
4) Title of Each Component
