Page 27
25
Putting the components into operation
input signal and the line input signal – are mixed
together equally in the transmitter.
̈

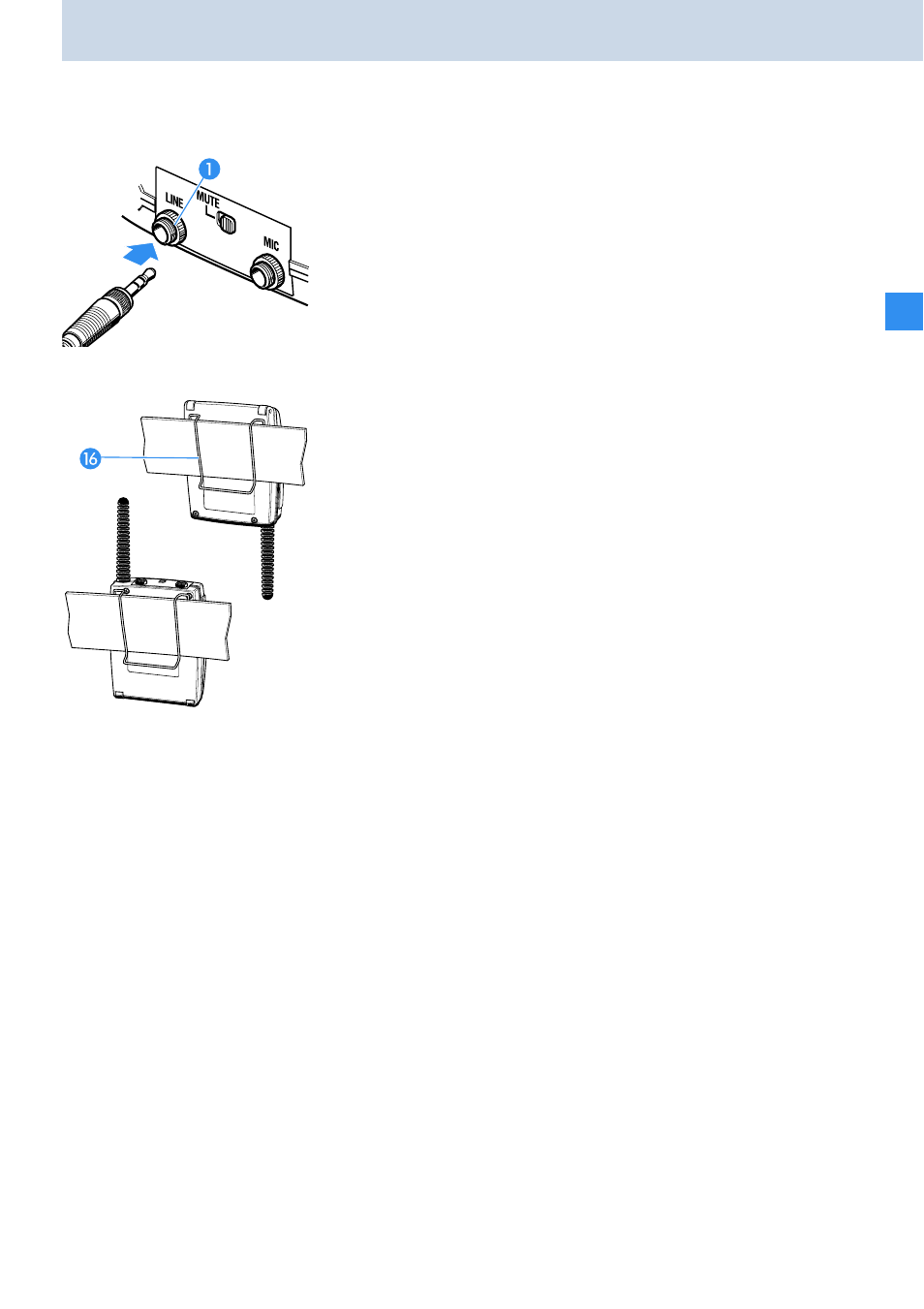

Connect the line output of the external audio
source to the bodypack transmitter's line input
³
.
̈
Lock the plug by screwing down the coupling ring.
̈
Switch the line input on, as described on page 36.
̈
Adjust the sensitivity of the line input, as described
on page 36.
Attaching the bodypack transmitter to clothing
The bodypack transmitter is attached to clothing (e.g.
belt, waistband) with the supplied belt clip
ƻ
.
The clip is detachable so that you can also attach the
bodypack transmitter with the antenna pointing
downwards. To do so, withdraw the clip
ƻ
from its
fixing points and attach it the other way round.
