18

4. Do not plug in power cord until vent system is completely installed.

The Power Vent operates on 120 Vac, therefore a grounded outlet

must be within reach of the 6 foot flexible power cord supplied

with the vent. The power cord supplied may be used on unit

only where local codes permit. If local codes do not permit use

of flexible power supply cord:

A. Remove screws that hold cover plate on control box and

remove plate.

B. Cut flexible power cord on inside of control box, as close to

inside wall as possible.

C. If flexible cord and strain relief are removed, then opening

in box must be covered by a plastic cap on the front side of

the control box.

D. Remove plastic cap on the right side of control box and install

suitable conduit fitting in enclosure.

E. Splice field wiring into existing wiring using code authorized

method (wire nuts, etc.).

F. Be certain that neutral and line connections are not reversed

when making these connections.

G. Ground heater properly. This water heater must be grounded

in accordance with the National Electrical Code ANSI/

NFPA70 and/or local codes. These must be followed in all

cases.

The water heater must be connected to a grounded metal,

permanent wiring system; or an equipment grounding

conductor must be run with the circuit conductors and

connected to the equipment grounding terminal or lead on

the water heater, see Figure 19.

H. Replace cover plate and secure with two screws.

5. The blower discharge boot is made to accept only straight

sections of 3” pipe. To start off with an elbow, a short section

of the furnished pipe, a minimum of 2 inches, must be cut and

glued into the end of the elbow that will mount on the discharge

boot (see figure 16).

InstallatIon of vent sYsteM

Before beginning installation of piping system thoroughly read the

section of this manual VENT PIPE PREPARATION.

If you are installing your system so that it vents through the roof, please

refer to section titled INSTALLATION OF VERTICAL VENT SYSTEM.

vent terMInal InstallatIon, sIdewall

1. Install the vent terminal by using the cover plate as a template to

mark the hole for the vent pipe to pass through the wall. BEWARE

OF CONCEALED WIRING AND PIPING INSIDE THE WALL.

2. If the Vent Terminal is being installed on the outside of a finished

wall, it may be easier to mark both the inside and outside wall.

Align the holes by drilling a hole through the center of the template

from the inside through to the outside. The template can now be

positioned on the outside wall using the drilled hole as a centering

point for the template.

3. A) MASONRY SIDE WALLS

Chisel an opening approximately one half inch (1.3 cm) larger

than the marked circle.

B) WOODEN SIDE WALLS

Drill a pilot hole approximately one quarter inch (0.64 cm) outside

of the marked circle. This pilot hole is used as a starting point

for a saws-all or sabre saw blade. Cut around the marked circle

staying approximately one quarter inch (0.64 cm) outside of the

line. (This will allow the vent to easily slide through the opening.

The resulting gap will be covered up by the Vent Terminal cover

plate.) Repeat this step on inside wall if necessary.

SEQUENCE OF INSTALLATIONS, FIGURE 17

Cut a length of PVC pipe about 3.5 inches (8.9 cm) longer than the

wall thickness at the opening. Glue the vent terminal to this section

of pipe. Slide the wall plate over the pipe to stop against the vent

terminal. Place a bead of caulking (not supplied) around the gap

between the pipe and cover plate. Apply enough to fill some of the

gap between the pipe and wall. Place some of the caulking on the

back of the plate to hold it against the wall after installation. If the

vent pipe is installed up to the wall, with a coupling on the end against

the wall opening, the pipe with the vent terminal can be prepared

for gluing before inserting through the wall. Slide the pipe through

the wall and insert into the coupling on the other side of the wall,

making sure that the vent terminal ends up pointed in the correct

position, see Figure 17.

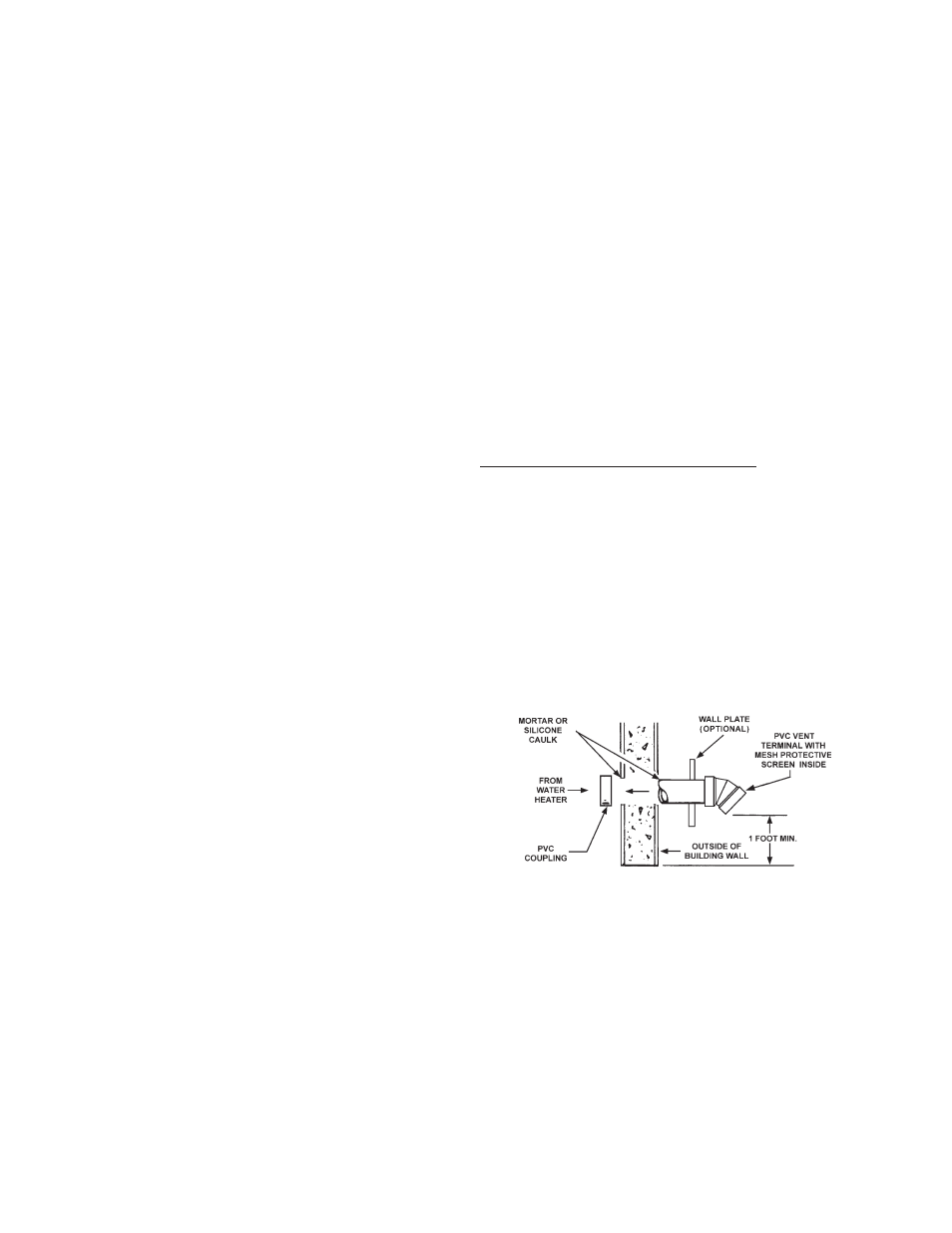

fIGure 17. vent terMInatIon
