Instructions for the installer
3.2 Burner and nozzle characteristics table
Burner Rated
heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1.05 50 30 360 76 75
Semi rapid 1.8 65 33 450 131 129
Rapid 3 85 45 800 218 215
Ultrarapid 3.3 91 65 1600 240 236
Burner
Rated
heating
capacity
(kW)
Natural gas – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced flowrate
(W)
Auxiliary 1.05 72 360
Semi rapid 1.8 97 450
Rapid 3 115 800
Ultrarapid 3.5 133 1600

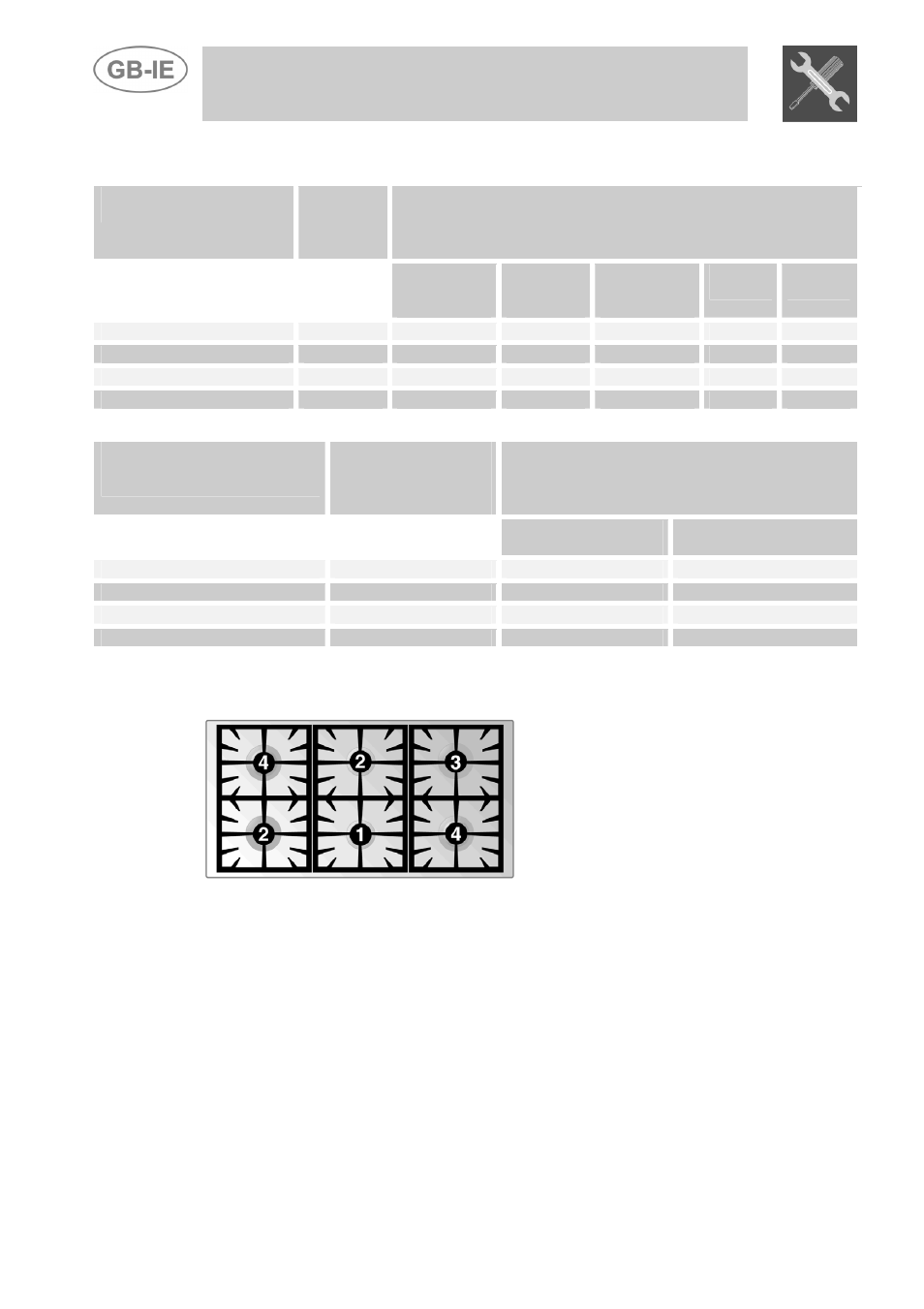

3.3 Arrangement of burners on cooking hob
BURNERS
1 Auxiliary
2 Semi
rapid
3 Rapid
4 Ultrarapid
24
