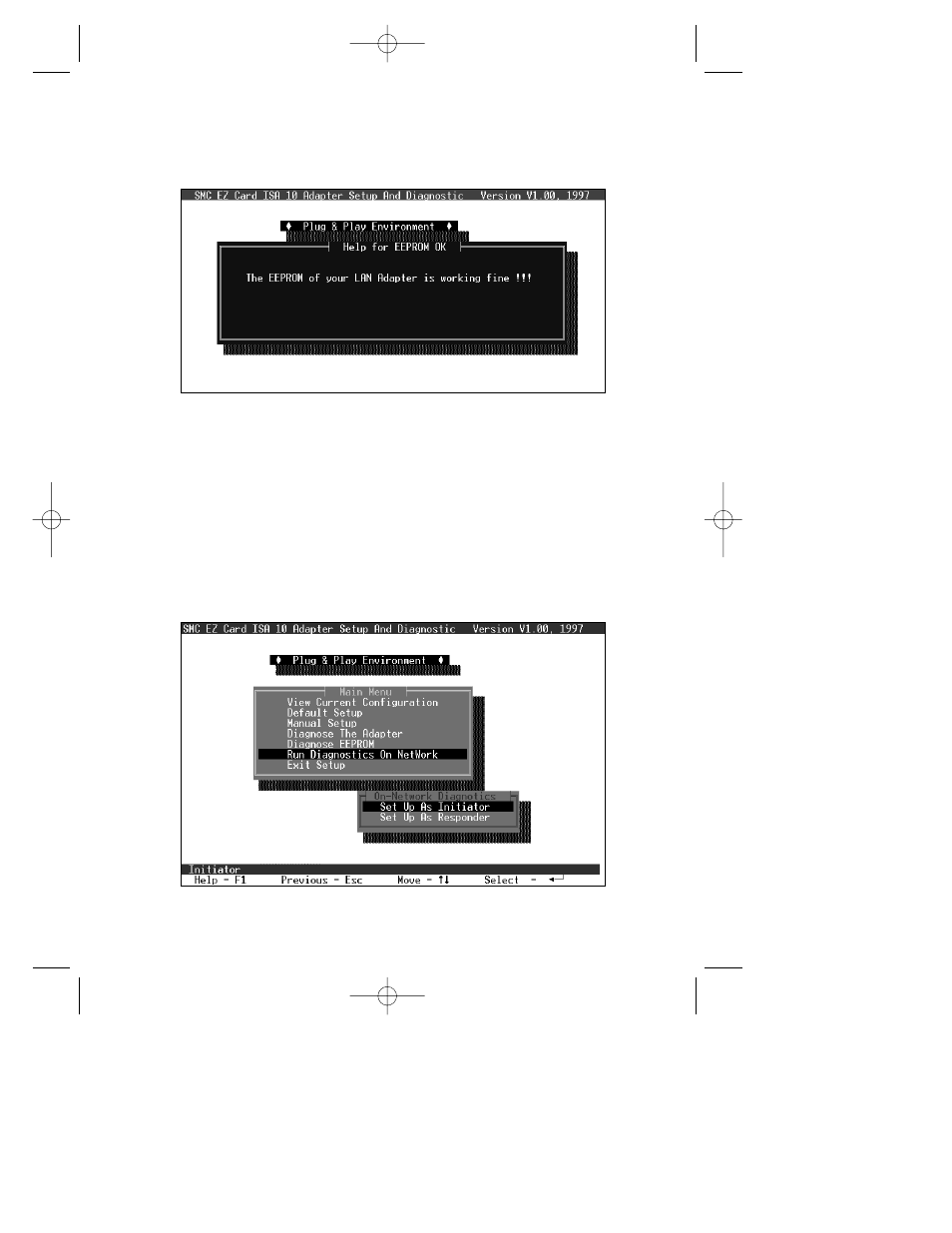

Figure A-3. EEPROM Test
Network Diagnostics
To verify your card's ability to communicate with another device
on the network, select Run Diagnostics on Network from the
Main Menu. Set up at least one computer as a Responder and
at least one as an Initiator. In the test, one PC generates test
messages across the network. Another PC receives the test mes-
sages and echoes them back to the source PC. This test dis-
plays the status of network communications.
Figure A-4. On-Network Diagnostics
A-3
DIAGNOSTICS
Press space bar to continue
