Manual Setup

This option is used for systems without Plug and Play support
or when it is necessary to change the default settings.

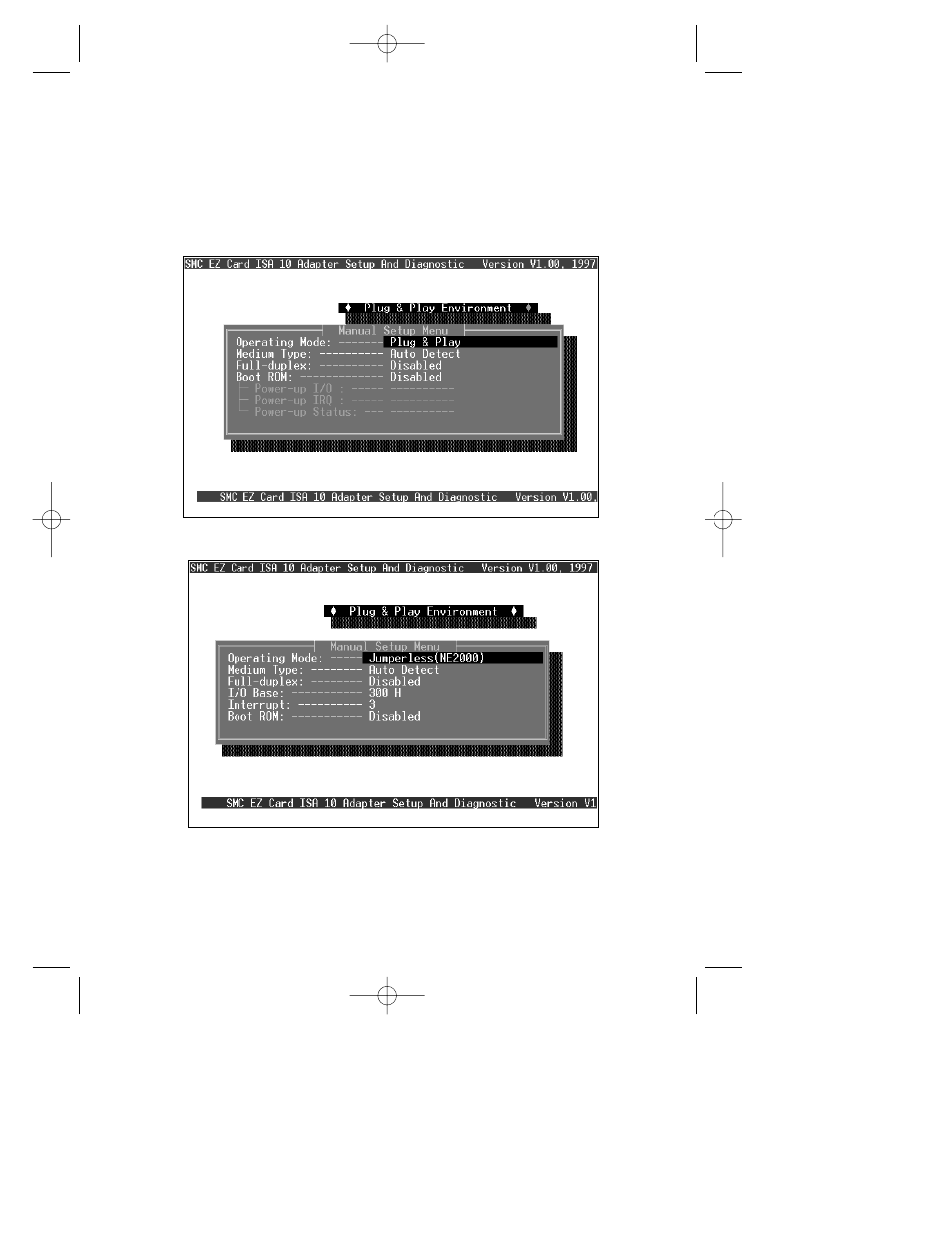

Figure 2-2. Manual Setup - Plug and Play Environment

Figure 2-3. Manual Setup - Jumperless Environment

H

ARDWARE

S

ETTINGS

2-2

ISA-FINAL 3/31/98 4:07 PM Page 1-8
