Instruction for the installer
35

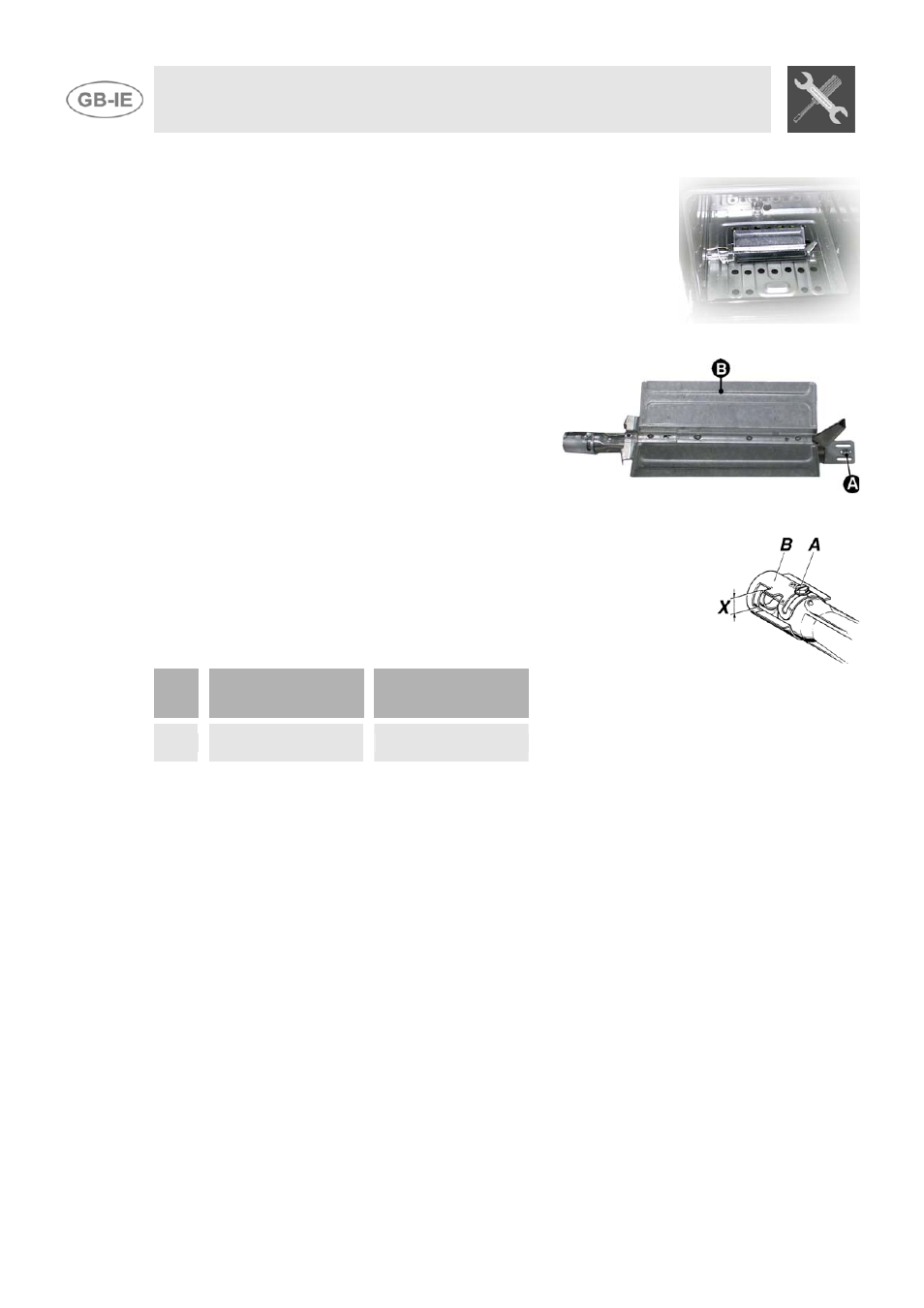

3.6 Adjustment of the oven burner (only for gas oven models)
To adjust the oven burners follow the procedure described below from
inside the oven:
• Open the oven door;
• Remove the oven dish and shelf.
• Lift up the oven floor and remove.
3.6.1
Replacement of the oven burner nozzle
• Loosen the fixing screws A on the oven burner.
• Push the burner B towards the right to get to the
nozzle.
• Use a 13 socket wrench to change the nozzle, fitting
the one for the type of gas to be used (see point
“3.2/3.3 Table of burner and nozzle characteristics”).
3.6.2
Regulation of the primary air on the oven burner
• Loosen the register screws “A” on the air regulation coupling.
• Turn the register coupling “B” to the position corresponding to the type of gas
to be used according to the table below.
• Tighten the register screws and mount the seals.
• Once the operation is completed reassemble the burner correctly.
NATURAL (N)
G30/G31 (LPG)
X =
5 mm
15 mm
