Snapper Lawn Mower Accessory - Manual (Page 61)

61

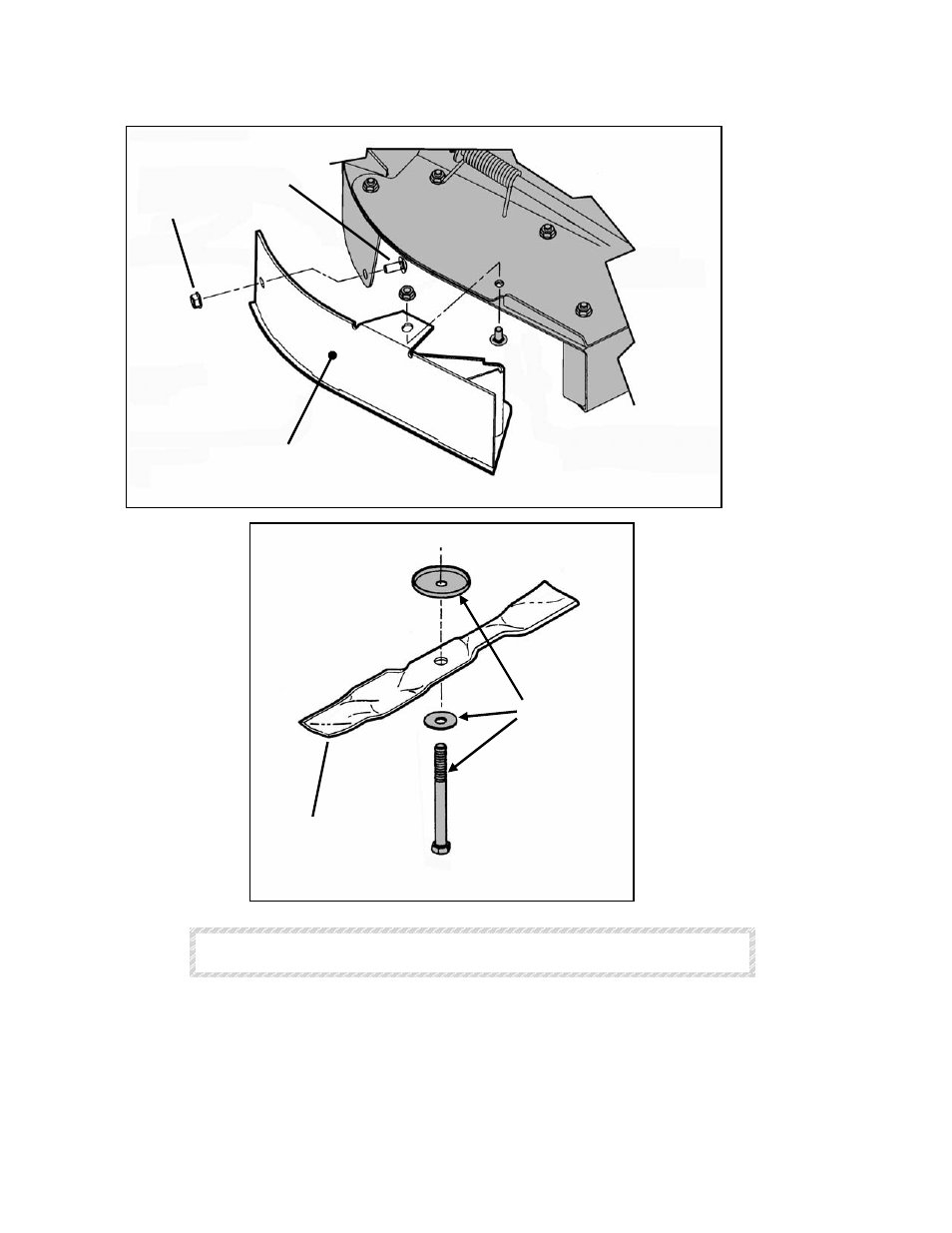

6-3110 ACCESSORY 48” (WAVE) MULCHING
NOTE: A 11/32” diameter hole must be drilled to install Mulching Cover.
Refer to kit instructions.
ITEM
PART NO. DESCRIPTION
- 6-3110 KIT, (Includes Items 1 Thru 4)
1 7-3287 BLADE, Mulching (Positive Wave, 5/8” Hole, 16-1/2” Length) (3)
2 5-8276 WELDMENT, Mulching Cover
3 9-1508 BOLT, 5/16-18 x 3/4” Short Neck Carriage, Grade 5
4 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5
LT (Small Frame) ACCESSORIES MANUAL No. 06613
“EXISTING”
FASTENERS
1
4
3
2
