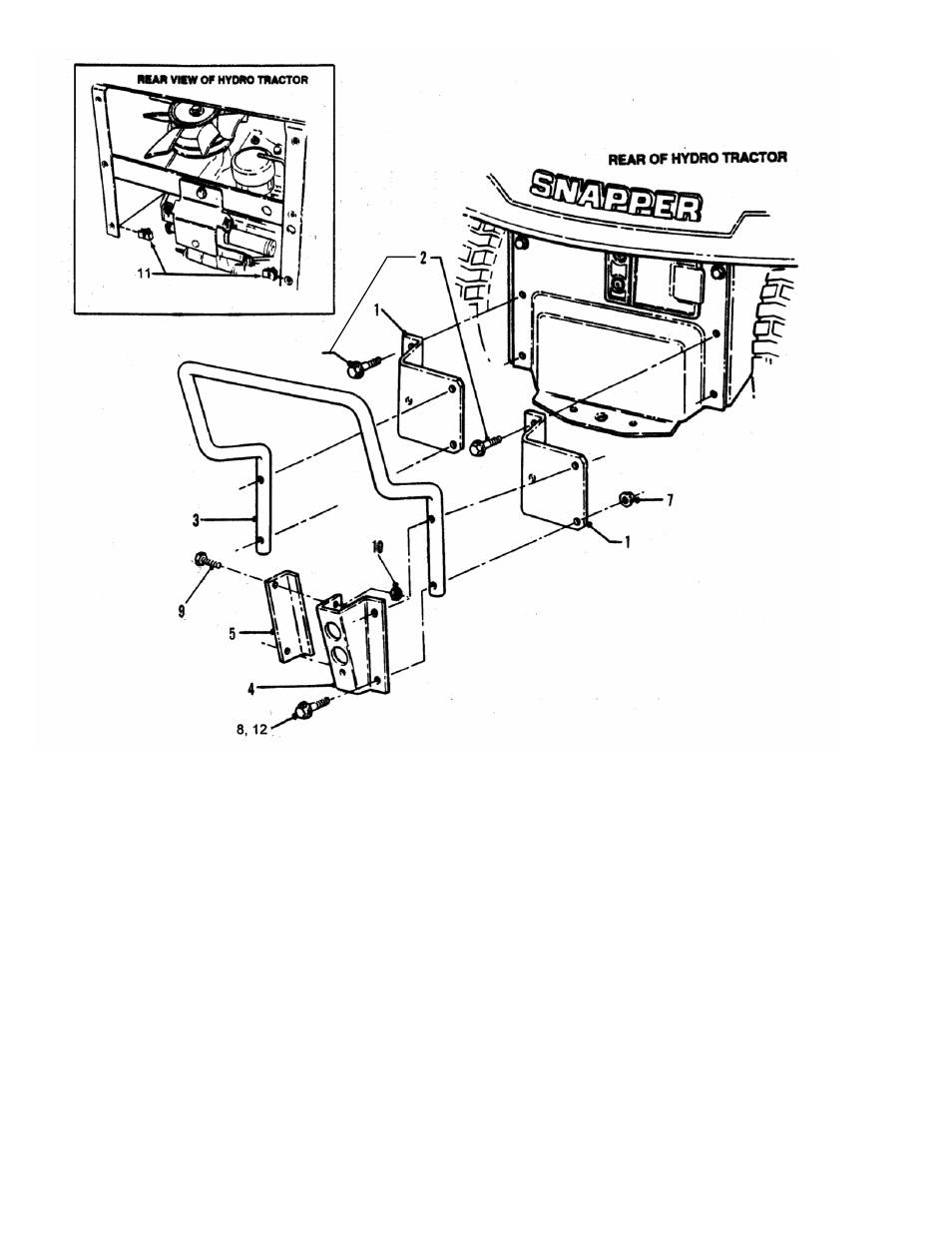

6-1068 ACCESSORY, GRASS CATCHER ADAPTER
(for Hydro and Gear Drive Models)
NOTE:
LT Hydro Bagger Adapter Kit #6-1311,
(included in Kit #6-1068) consists of items:
#1 (quantity. 2), #2 (qty. 4), #7 (qty. 4) and
#8 (qty. 4).This kit is required on Hydro Drive
Tractors with wide tires (20-10.00 x 8).
ITEM
PART
NO.
DESCRIPTION
--
6-1068
KIT, Grass Catcher Adapter (Includes items 1 thru 7)
1
3-4062
BRACKET, Bagger Adapter (2)
2
9-1591
BOLT, 5/16-18 x 1” Hex Flange Lock, Grade 5 (4)
3
1-7593
BUMPER
4
3-4020*
BRACKET,
Support
5
3-3140*
BRACKET,
Stand-off
6
6-1070
BAG, Hardware (includes indented items below)
7
9-1601
NUT, 5/16-18 Hex Flange Lock, Grade 5 (4)
8
9-1602
BOLT, 5/16-18 x 1-1/2” Hex Flange Lock, Grade 5 (2 in bag; 4 in kit)
9
2-7172
SCREW, 1/4-20 x 5/8” Hex Head Cap, Grade 5 (2)
10
9-1584
NUT, 1/4-20 Hex Flange Lock, Grade 5 (2)
11
1-6116
NUT, 5/16” Push-on (4)
12
9-1264
BOLT, 5/16-18 x 1-3/4” Hex Flange Lock, Grade 5 (2)
*NOTE: Required for Twin Bag Models only.
