19

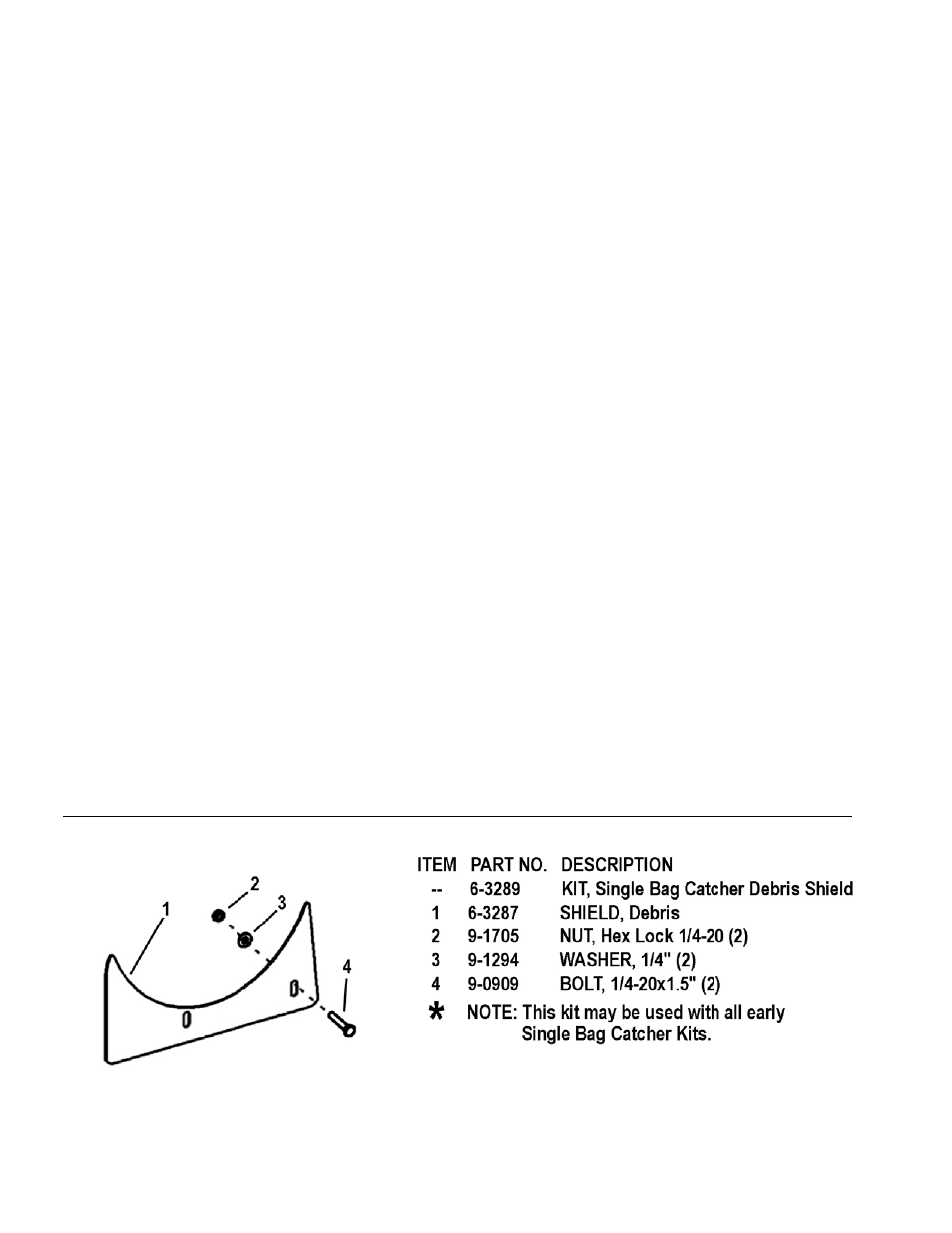

6-0944 ACCESSORY, 42” SINGLE BAG GRASS CATCHER
ITEM
PART NO. DESCRIPTION
- 6-0944 KIT, Grass Catcher Single Bag (Includes 1 Thru 33)
1 5-1948 TOP, Container (Includes Decal #1-1910)
2 1-9251 BAG, Grass (Includes Item 3)
3 1-6108 SKIRT, Dust
4 4-7973 FRAME, Structure
5 3-7758 ROD, Bag (Includes Item 6)
6 1-2556 CONNECTOR, Bag Rod
7 3-1725 LATCH
8 9-0532 SCREW, #10-32 x 1-3/8” Hex Cap
9 9-0376 NUT, #10-32 Hex Lock
10 2-9840 WASHER, Faceted (5)
11 1-7316 TUBE, Grass
12 5-1663 ADAPTER, Deck (Includes Decal 4-6720)
13 3-7745 HANDLE, Tube
14 3-1952 BASE, Handle
15 3-1951 LATCH, Tube
16 7-1677 SHIELD, Muffler (See Figure 2)
17 9-0803 BOLT, 1/4-20 x 3/4” Carriage (3)
18 9-1503 PIN, 3/32 x 1-1/2” Hair (2)
19 9-1584 NUT, 1/4-20 Hex Lock (6)
20 6-0735 KIT, Air Lift (Includes Items 22 Thru 25) (See Figure 1)
21 2-9841 PIN, 5/16 x 1-11/16” Clevis (2)
22 9-0228 SCREW, 5/16-24 x 21/32” Cross Recess (6) (See Figure 1)
23 9-0391 WASHER, 5/16 Internal Tooth Lock (6) (See Figure 1)
24 9-0223 NUT, 5/16-24 Hex (6) (See Figure 1)
25 3-1724 LIFT, Air (2) (See Figure 1)
26 3-8277 BAFFLE (See Figure 3)
27 9-1613 SCREW, 5/16-18 x 3/4” Round Head (3) (See Figure 3)
28 9-1601 NUT, 5/16-18 Hex Lock (3) (See Figure 3)
29 9-1589 SCREW, 3/8-24 x 1-1/4” Hex Cap (Not Shown - Replacement Blade Bolt)
30 1-9795 BLADE, 21” Cutting (See Figure 1)
31 2-3797 PAD, Bumper Mount (2)
32 9-0577 BOLT, 5/16-18 x 1-1/2” Carriage (2)
33 9-1575 NUT, 5/16-18 Hex Center Lock (2)
LT SERIES (Small Frame) MANUAL No. 06613
