Wheels, Tyres and Treads
NR25796,0000684 –19–15JAN07–1/1

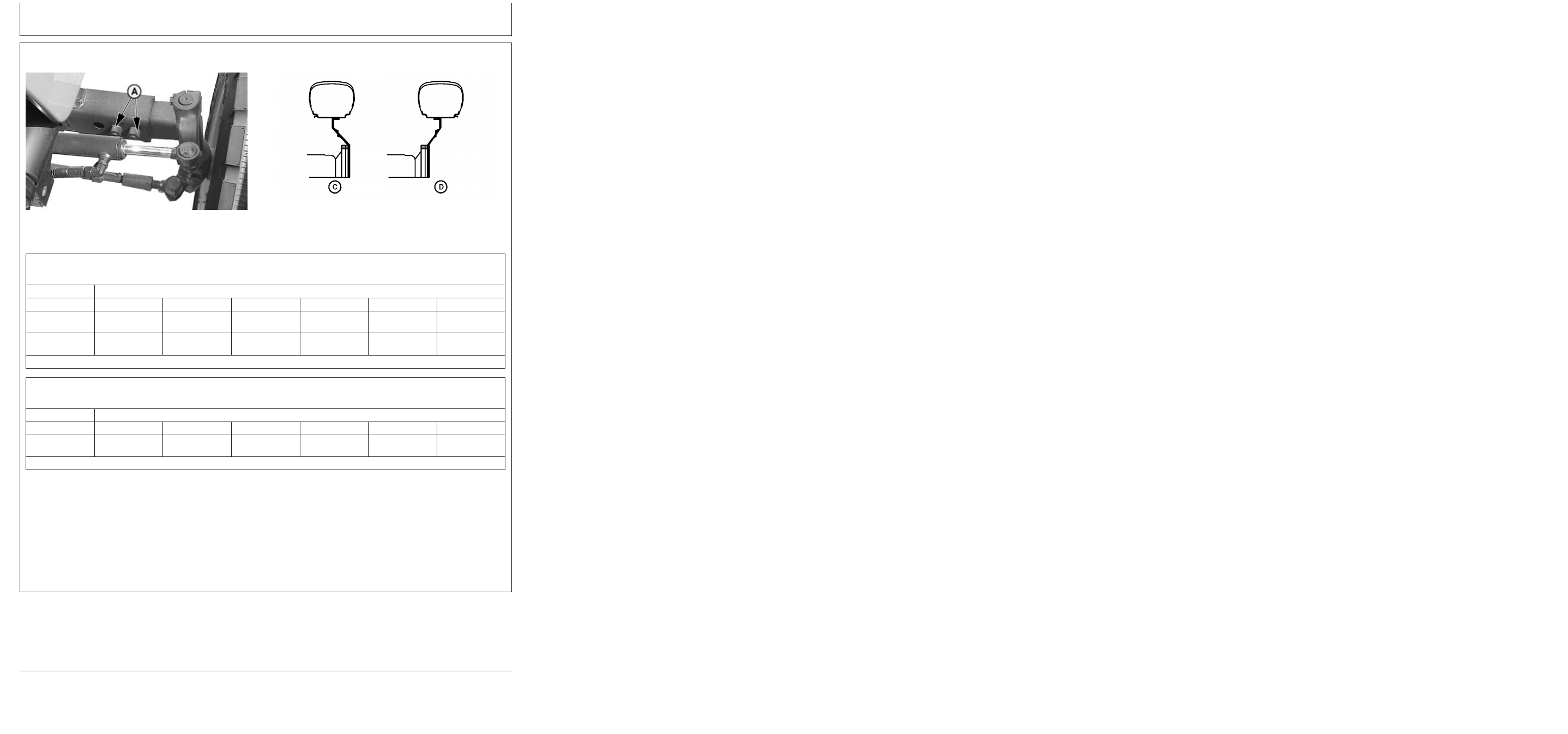

Tread Settings—Adjustable Front Axle––If Equipped
PY5021
–UN–21MAY05
LV1515
–UN–05MAR96
Front rims are offset. With some tires, this provides
two tread spacings, at each axle setting.
ADJUSTABLE FRONT AXLE TREAD SETTINGS
Diagram C
Centerline-to-centerline
Tread Positionª For 2 WD
Tire 1 2 3 4 5 6
7.5-16 1449 mm 1549 1649 1749 1849 1949
(57.0 in.) (61.0 in.) (64.9 in.) (68.9 in) (72.8 in.) (76.7 in.)
6.0-16 1435 mm (56.5 1535 mm (60.4 1635 mm (64.4 1735 mm (68.3 1835 mm (72.2 1935 mm (76.2
in.) in.) in.) in.) in.) in.)
ªTread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section.
ADJUSTABLE FRONT AXLE TREAD SETTINGS
Diagram D
Centerline-to-centerline
Tread Positionª
Tire 1 2 3 4 5 6
7.5-16 1583 1683 mm 1783 mm 1883 mm 1983 mm 2083 mm
(62.3 in.) (66.3 in.) (70.2 in.) (74.1 in.) (78.1 in.) (82.0 in.)
ªTread position 1 is with axle adjustment at its most inward location. See adjust Front Axle Tread Width in this section.
