Service—Every 1250 Hours
PY80265,05GO935 –19–12JUN06–1/2

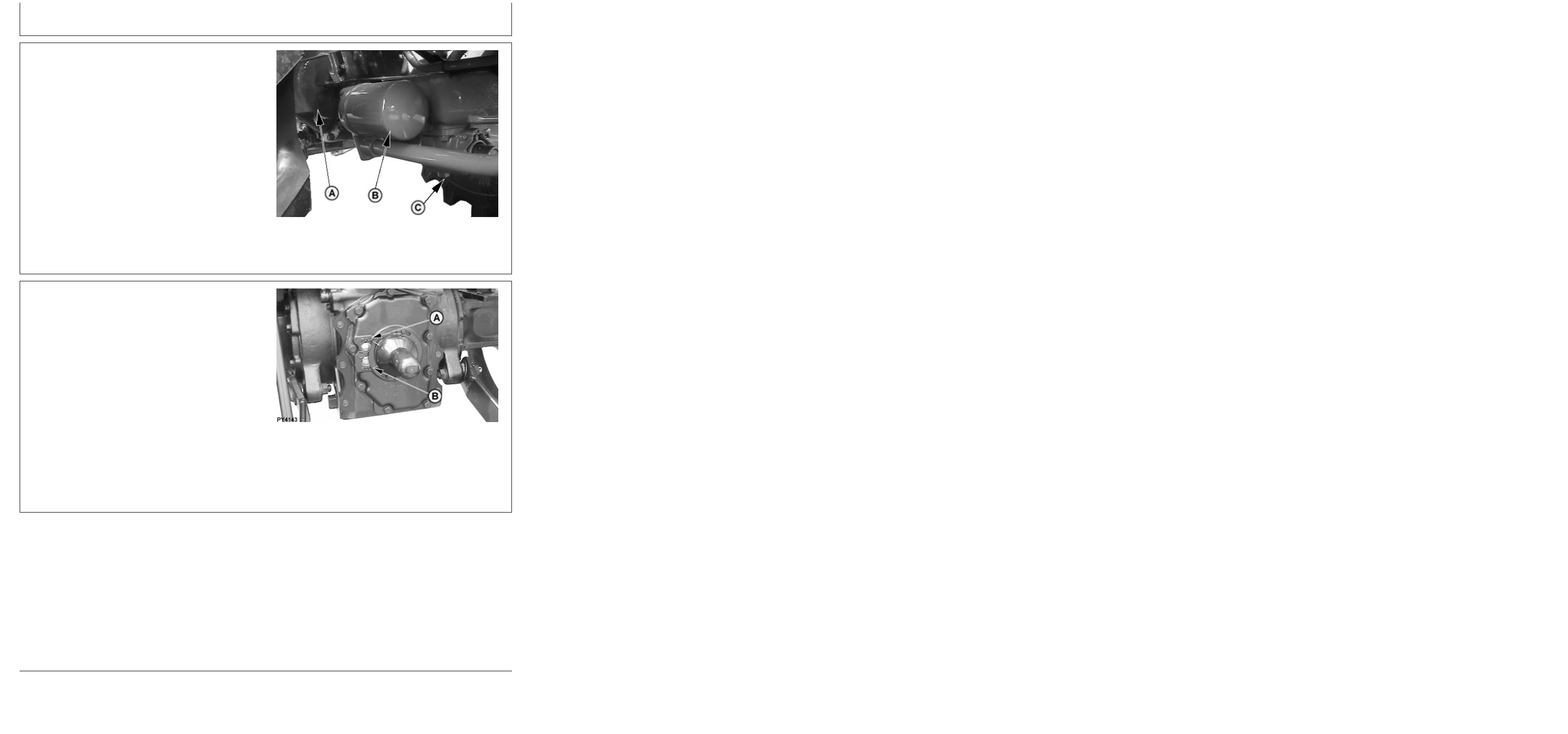

Change Transmission-Hydraulic Oil and
Filter
PY4417
–UN–31DEC04
A—Axle Housing
B—Transmission Oil Filter
C—Transmission Case Drain Plug
1. Lower rockshaft to remove trapped oil.
2. Remove drain plug (C) from transmission case and
drain oil. Dispose of waste oil properly.
3. Replace filter (B) while changing oil. Apply a film of oil
to new filter gasket and install new filter. Hand tighten
only.
PY80265,05GO935 –19–12JUN06–2/2
PY4143
–UN–12JUN06
A—Full Level Mark
B—Add Level Mark
4. Fill system with transmission-hydraulic oil. (See Fuels,
Lubricants and Coolant section.)
Specification
Transmission Oil (Rear tyre size:
12.4 X 28 or 13.6 X 28)—
Capacity
33 L ..............................................................................................
Transmission Oil (Rear tyre Size
14.9 X 28—Capacity
34 L ..........................................................................
5. Check oil level at sight glass after filling. Make sure oil
level is to full level mark (A). Check again after
operating for five minutes. Add oil if necessary.
