Lights
PY80265,05GO812 –19–04JUL06–1/1

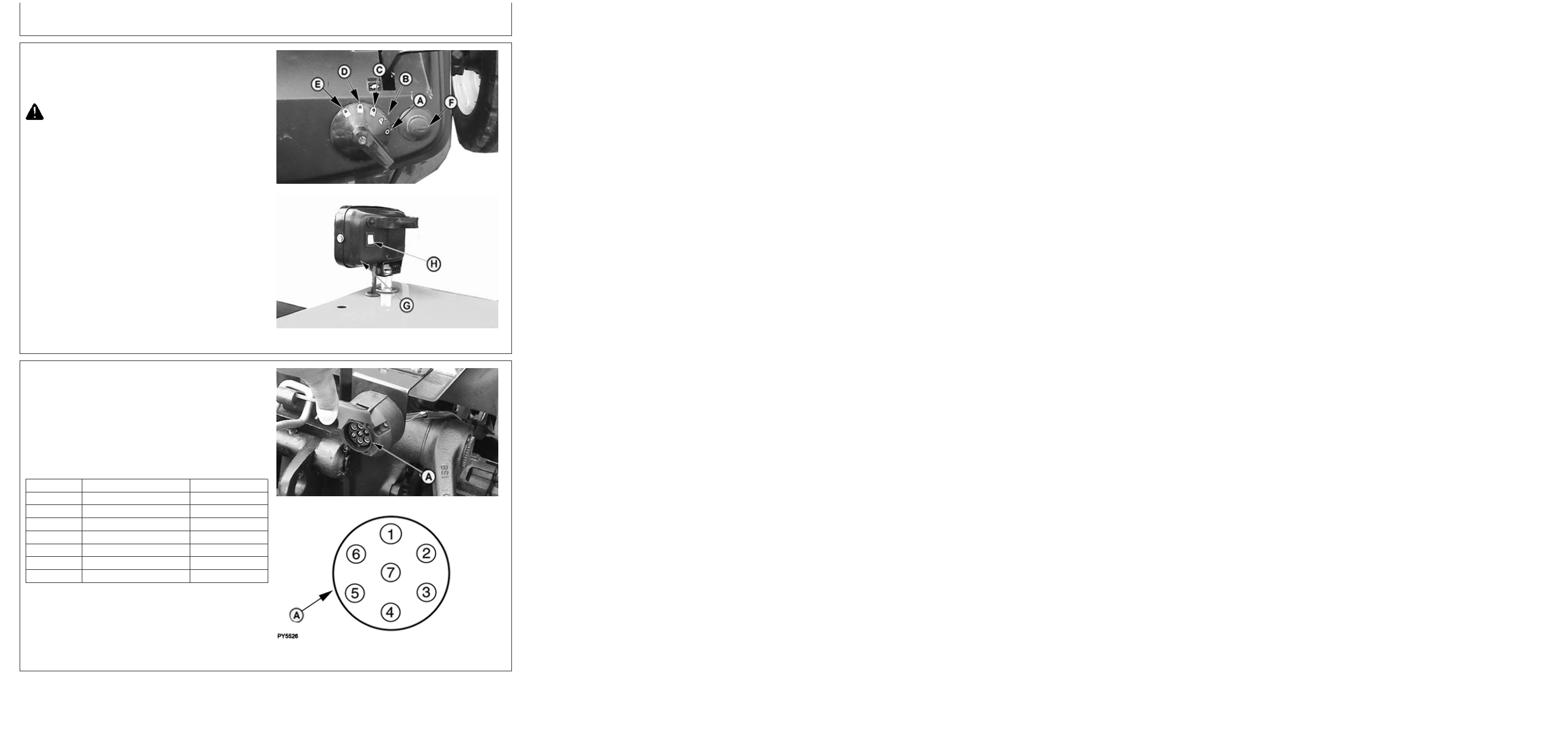

Using Flood Lamp
PY5365
–UN–20FEB06
PY4150
–UN–20FEB06
A—Lights Off
B—Warning Lights Position
C—Dim Headlights, Tail Lights and Warning Light
Position
D—Bright Headlights, Tail Lights and Warning Lights
Position
E—High Beamlight
F—Horn
G—Flood Lamp
H—Flood Light switch
Flood lamp (G) is switched on by flood light switch (H).
CAUTION: When operating on a road, move
light switch to either “Bright or Dim Head
Lamp” positions Never use flood lamp when
transporting. A clear, bright light at the rear of
the tractor could confuse drivers of other
vehicles as they approach from the rear.
PY80265,05GO813 –19–11JUL06–1/1
Seven-Terminal Outlet
PY4132
–UN–09DEC05
PY5526
–UN–11JUL06
A—Seven-Terminal Outlet
Outlet (A) is used to connect lights, turn signals and
remote electrical equipment on trailers or implements.
Always use auxiliary light on towed implement when
tractor rear signals and other lights are obscured.
NOTE: Matching plug is available through your John
Deere dealer.
Terminal Function Wire Color
1 Ground Black
2 Flood Lamp Purple
3 Left Turn Dark Green
4 Accessory Red
5 Right Turn Dark Green
6 Tail Lamp Gray
7 Accessory Red
