Page 84
Wheels, Tyres and Treads
PY80265,05GO886
–19–10SEP05–1/1

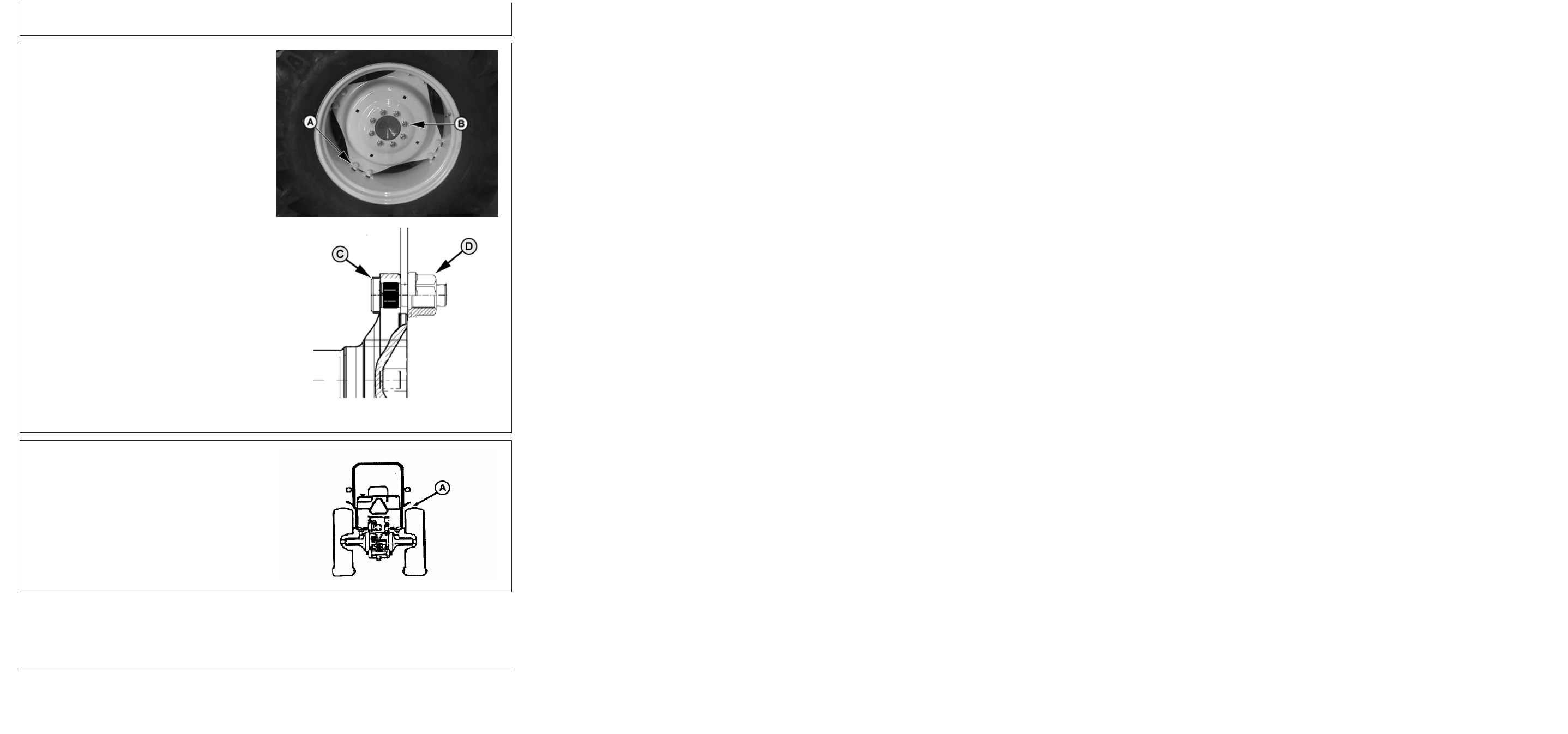

Tighten Bolts—Rear Axle (M-20 Stud)
PY4282
–UN–06DEC04
PY1956
–UN–12JAN04
New Arrangement with M-20 Stud and Nut
A—Rim-to-Disk Bolts
B—Disk-to-Flange Bolts
C—Stud
D—Nut
Tighten bolts in the following locations to specifications:
Specification
Rear Axle Rim-to-Disk (Steel
Disk)—Torque
245 N•m (180 lb-ft)
..............................................................
Rear Axle Disk-to-Flange (Steel
Disk)—Torque
550 N•m (406 lb-ft)
..............................................................
PY80265,05GO887
–19–10SEP05–1/1
Observe Rear Wheel Tread Width Limitations
M47179
–UN–31JAN92
IMPORTANT: Tyres must have at least 25 mm (1 in.)
clearance with fenders (A) and fuel
tank. When large diameter rear tyres are
installed, check clearance between tyre
and fenders and fuel tank.
75-6
022607
PN=82
