Quick Setup Connections
Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user’s manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.
ATSC/
DIGITAL CABLE IN
75Ω (VHF/UHF)
Cable or Antenna
Output
IN
OUT
R L V
IN
OUT
Two-Way Splitter
(Attachment)
IN
OUT OUT
Coaxial Cable
(Attachment)
Pr Pb Y
R AUDIO L VIDEO
OVER
S-
VIDEO INPUT1
R AUDIO L VIDEO
S-
VIDEO
OVER INPUT3
OR
Green
Blue
Red
DVD Player (OPTIONAL)
Y
P
B
P
R
OUT
AUDIO OUT
R L
Receiver Rear Panel
VCR
VCR Connection
Note:
• If this connection setup does not work for you, try the connection setup on page 19.

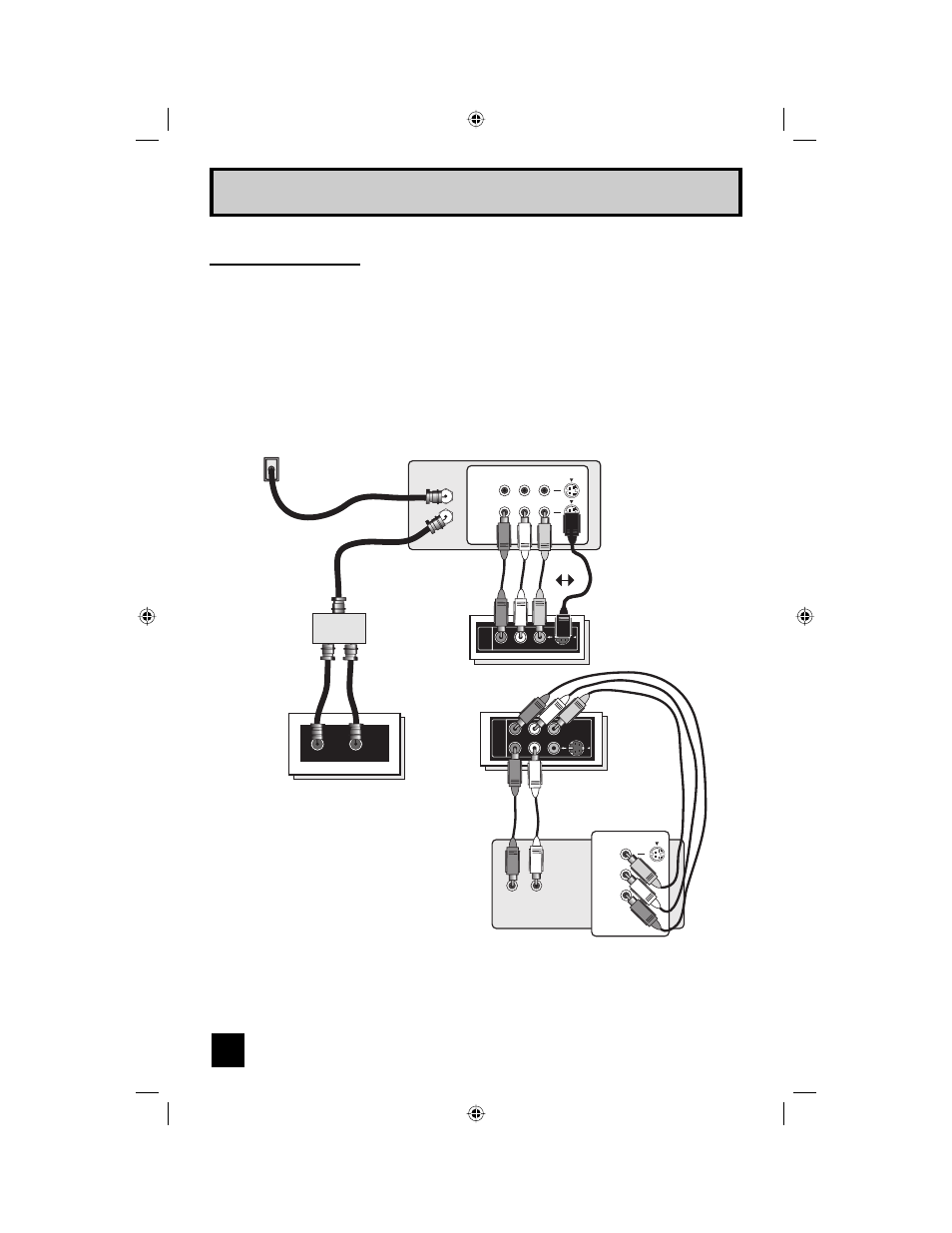

Diagram #1
