4
TM-2100PN PHASE CHROMA BRIGHT CONTRAST MENU INPUT SELECT VOLUME/SELECT
– + B A
POWER
ON
OFF
Y/ C VIDEO VIDEO
1 3
2 4 6 8
5 7 9 11
12 13 14
10

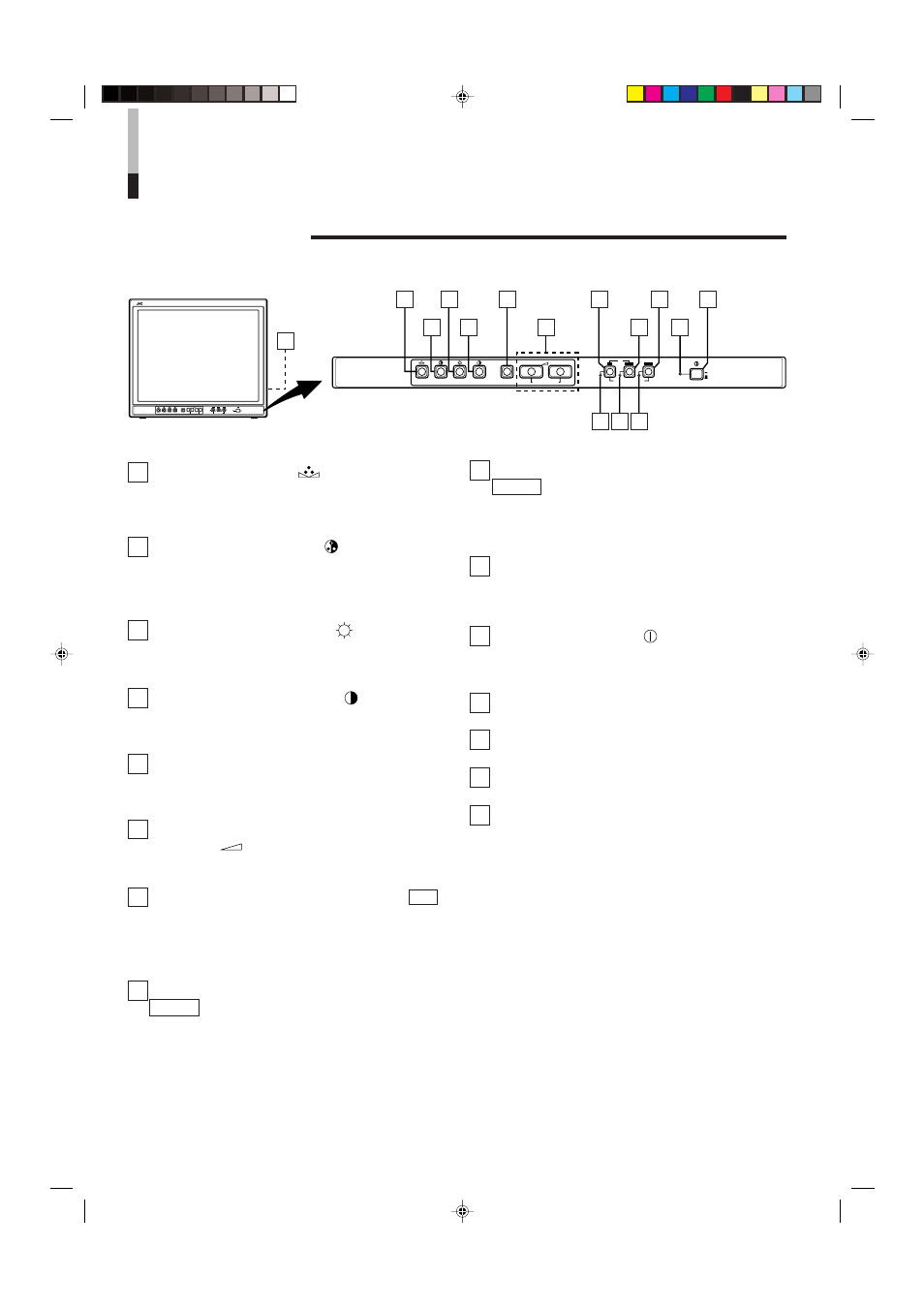

CONTROLS AND FEATURES
FRONT VIEW
1 Phase button [PHASE ]
Press this button to set the picture hue adjustment mode.
Adjust the value with the VOLUME/SELECT buttons. Also
used as a control button in the menu function mode.
2 Chroma button [CHROMA ]
Press this button to set the picture colour density adjust-
ment mode. Adjust the value with the VOLUME/SELECT
buttons. Also used as a control button in the menu
function mode.
3 Brightness button [BRIGHT ]
Press this button to adjust picture brightness. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
4 Contrast button [CONTRAST ]
Press this button to adjust picture contrast. Adjust the
value with the VOLUME/SELECT buttons. Also used as a
control button in the menu function mode.
5 Menu button [MENU]
Displays and exits the
6 Volume/Select buttons [VOLUME/
SELECT – +]
Adjusts the speaker volume. Also used as a control button
in the menu function mode.
7 Input B (Y/C) button [INPUT SELECT B Y/C ]
Selects the video signal input to the VIDEO B (Y/C)
terminal (mini DIN 4 pin connector) and the audio signal
input to the AUDIO B terminal (RCA connector) on the
rear panel. When selected, the input B (Y/C) indicator
@
lights.
8 Input B (VIDEO) button [INPUT SELECT B
VIDEO ]
Selects the video signal input to the VIDEO B terminal
(BNC connector) and the audio signal input to the AUDIO
B terminal (RCA connector) on the rear panel. When
selected, the input B (VIDEO) indicator
# lights.
9 Input A (VIDEO) button [INPUT SELECT A
VIDEO ]
Selects the video signal input to the VIDEO A terminal
(BNC connector) and the audio signal input to the AUDIO
A terminal (RCA connector) on the rear panel. When
selected, the input A (VIDEO) indicator
$ lights.
10 Power indicator
Lights in green when the power is ON.
Lit
: When the power is on.
Unlit : When the power is off.
11 Power switch [POWER ]
Press this switch to turn the power on or off.
_ ON : Power is turned on.
— OFF : Power is turned off.
12 Input B (Y/C) indicator
Lights in green when the Input B (Y/C) is selected.
13 Input B (VIDEO) indicator
Lights in green when the Input B (VIDEO) is selected.
14 Input A (VIDEO) indicator
Lights in green when the Input A (VIDEO) is selected.
15 Speaker
A built-in speaker is located inside the right side panel
when the monitor is viewed from the front.
TM-2100PN PHASE CHROMA BRIGHT CONTRAST MENU INPUT SELECT VOLUME/SELECT
– + B A
POWER ON OFF
Y/ C VIDEO VIDEO
15
