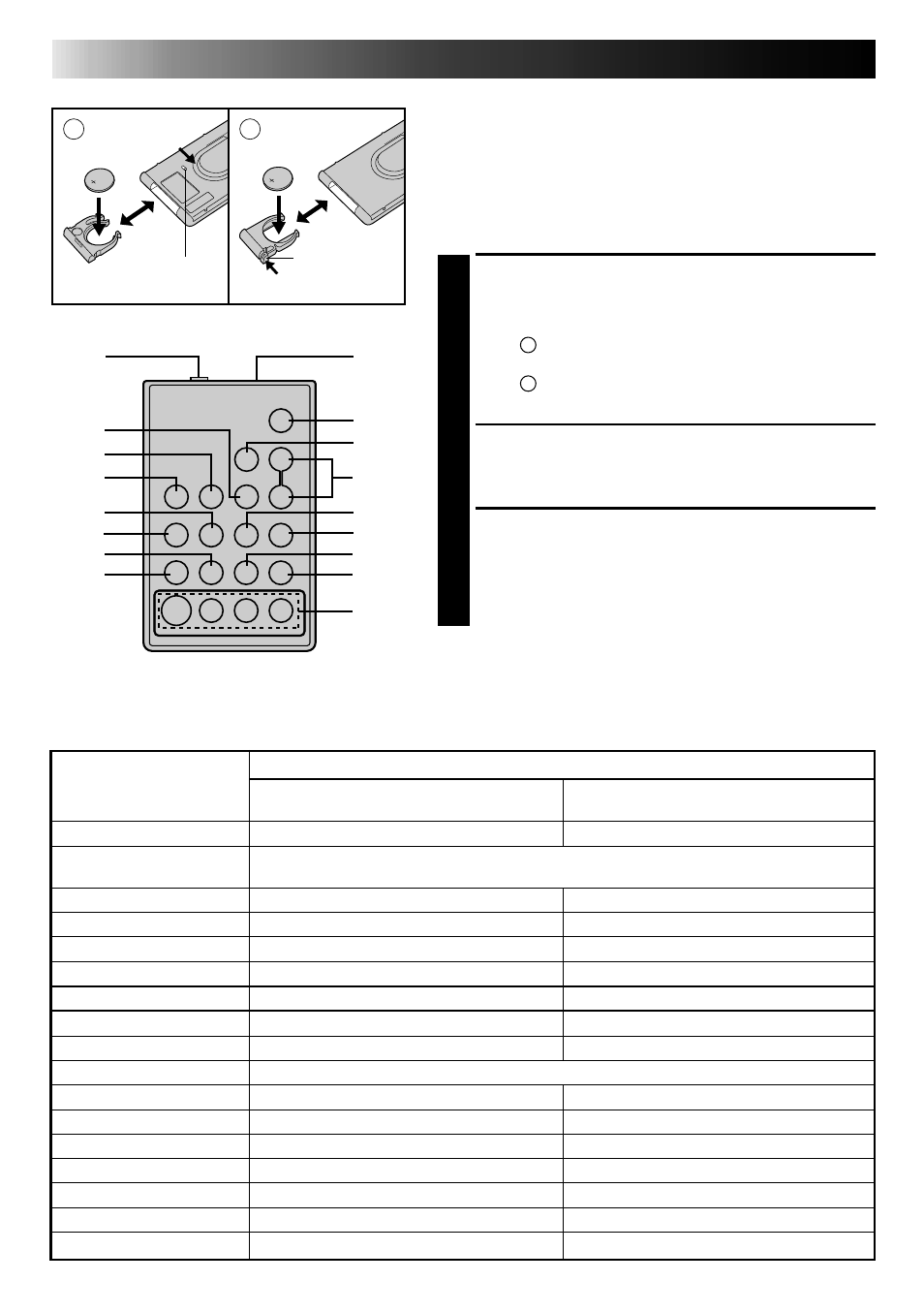

USING REMOTE CONTROL UNIT
The Full-Function Remote Control Unit can operate this
camcorder from a distance as well as the basic
operations (PLAY, STOP, PAUSE, FF, and REW) of your
VCR. This remote control unit makes additional
recording functions possible.
Installing The Battery
PULL OUT BATTERY HOLDER
1
Pull out the battery holder according to the type of
remote control unit you have.
Type
A : Pull out the battrery holder while sliding
the lock hole.
Type B : Pinch the release tab and pull out the
battery holder.
INSERT BATTERY
2 Making sure the plus (+) side is up, insert the lithium
battery (CR2025)* into the battery holder.
REPLACE BATTERY HOLDER
3
Insert the battery holder into the remote control unit,
and push the holder until it clicks into place.
* Read the caution concerning lithium batteries
(
੬
pg. 2).
Lock hole
Release tab
1 PAUSE IN Connector
2 Infrared beam
transmitting window
3 MBR SET Button
4 INT. TIME Button
5 REC TIME Button
6 FF Button
7 REW Button
8 PAUSE Button
9 PLAY Button
0 START/STOP Button
! VISS Button
@ ZOOM (T/W) Buttons
# VCR CTL Button
$ A.DUB Button
% STOP Button
^ INSERT Button
& R.A.EDIT Buttons
BUTTONS FUNCTIONS
With the camcorder’s power switch set to
“PLAY”.
੬
pg. 39
੬
pg. 38
—
—
FF/FF Shuttle Search (
੬
pg. 34)
Rew/Rew Shuttle Search (
੬
pg. 34)
Pause (
੬
pg. 35)
Playback start (
੬
pg. 34)
—
—
੬
pg. 38
Audio Dubbing (
੬
pg. 45)
Stop (
੬
pg. 34)
Insert Editing (
੬
pg. 44)
੬
pg. 40
With the camcorder’s power switch set to
“CAMERA”.
—
Transmits the beam signal.
—
Self-Timer/Time-Lapse (
੬
pg. 43)
Animation/Time-Lapse (
੬
pg. 43)
Retake (forward) (
੬
pg. 15)
Retake (rewind)/Quick Review (
੬
pg. 15)
—
—
Index Code marking (
੬
pg. 43)
Zoom (invariable speed,
੬
pg. 15)
—
—
—
—
—
Functions same as the Recording Start/Stop button on the camcorder.
1 2
3
4
5
6
7
8
9
0
!
#
@
$
%
^
&
RM-V704U or RM-V700U
(provided)
