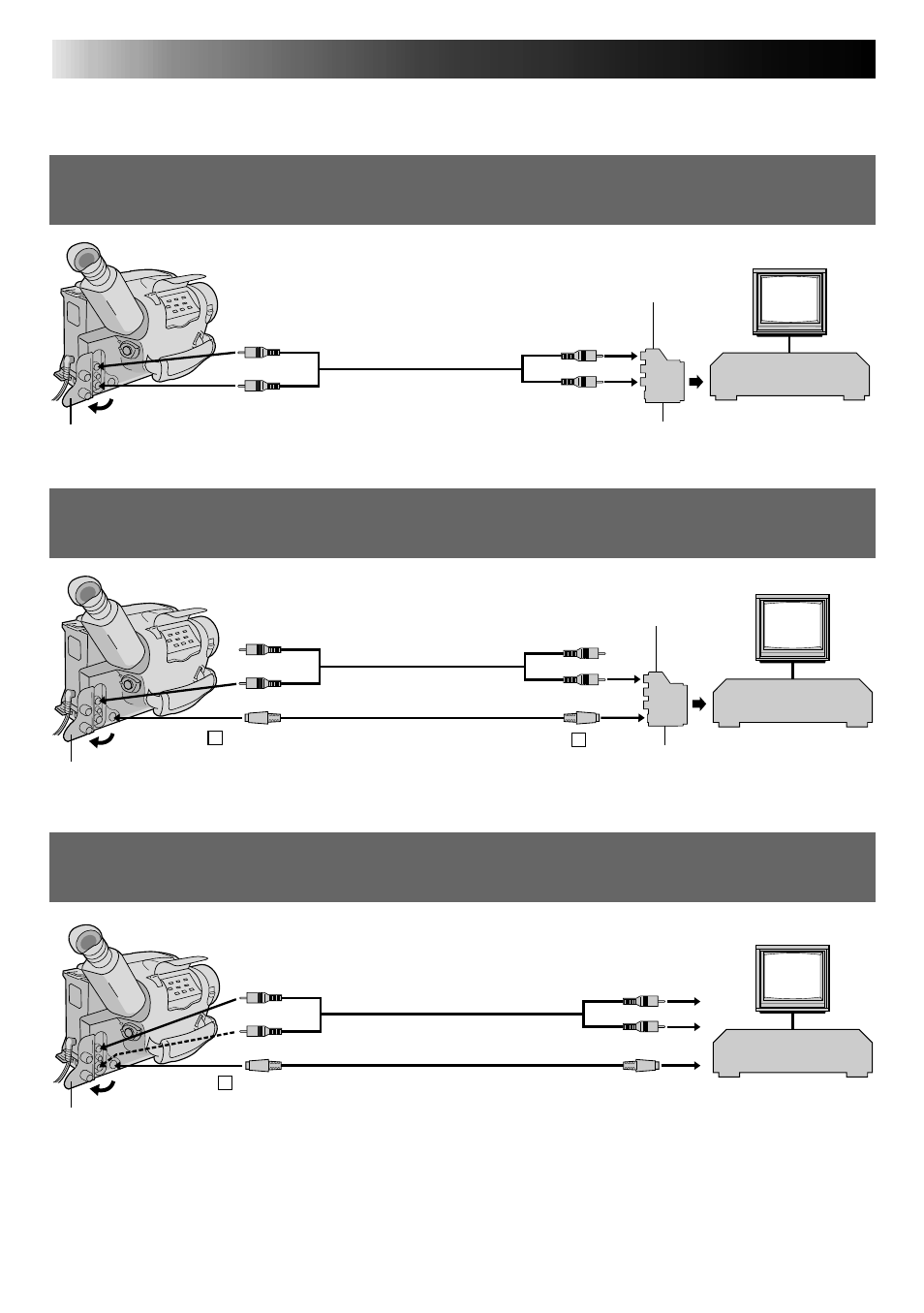

PLAYBACK Basic Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
jack cover*
TV
VCR
Yellow to VIDEO
To
TV or VCR White to AUDIO
jack cover*
To S VIDEO OUT
jack cover*
TV
VCR
*jack cover: When connecting the cables, open the jack cover.
B. Connection To a TV or VCR equipped with a SCART connector compatible
with Y/C signal
C. Connection To a TV or VCR equipped with an S-VIDEO IN and/or A/V
input (RCA type) connectors
To S -IN
To S VIDEO OUT To S-VIDEO IN
A. Connection To a TV or VCR equipped with a SCART connector compatible
only with regular video signal
Cable Adapter
(provided)
Set to CVBS
Yellow: not connect Yellow: not connect
White to AUDIO
S-VIDEO cable
(optional)
White to AUDIO
A/V cable
(optional)
White to AUDIO
(L/MONO)
Yellow to VIDEO
Set to Y/C
VCR
TV
Cable Adapter
(provided)
To
TV or VCR
White to AUDIO (L/MONO)
Yellow to VIDEO in Yellow to VIDEO
←
( When the S-VIDEO cable is not used. )
→
To TV or VCR
White to AUDIO L in
A/V cable (optional)
S-VIDEO cable (optional)
A/V cable
(optional)
