Inside tub view – Jackson Hot Water Sanitizing Undercounter Dishmachines JPX-200 User Manual
Page 46
ITEM
QTY
DESCRIPTION
Mfg. No.
01
1
Bottom Boss Assembly
2020-202-26-53
02
1
Bottom Spindle Spacer
2020-202-26-70
03
1
Top Spindle
2020-162-26-67
04
1
Wash Filter
2020-202-28-43
05
1
Drain Filter
2020-202-27-85
06
1
Tube, Transfer
2020-202-26-85
07
1
Elbow Assembly
2020-202-26-47
08
1
O-Ring
2020-162-27-83
09
1
Nut, 1” Plastic
2020-142-27-64
10
1
Support, Right Filter
2020-162-28-20
11
1
Support, Left Filter
2020-162-28-19
12
2
Filter Nut
2020-162-27-82
13
1
Support, Front Filter
2020-202-26-35
14
1
Wash Element with Washers and Nuts
2020-202-28-39

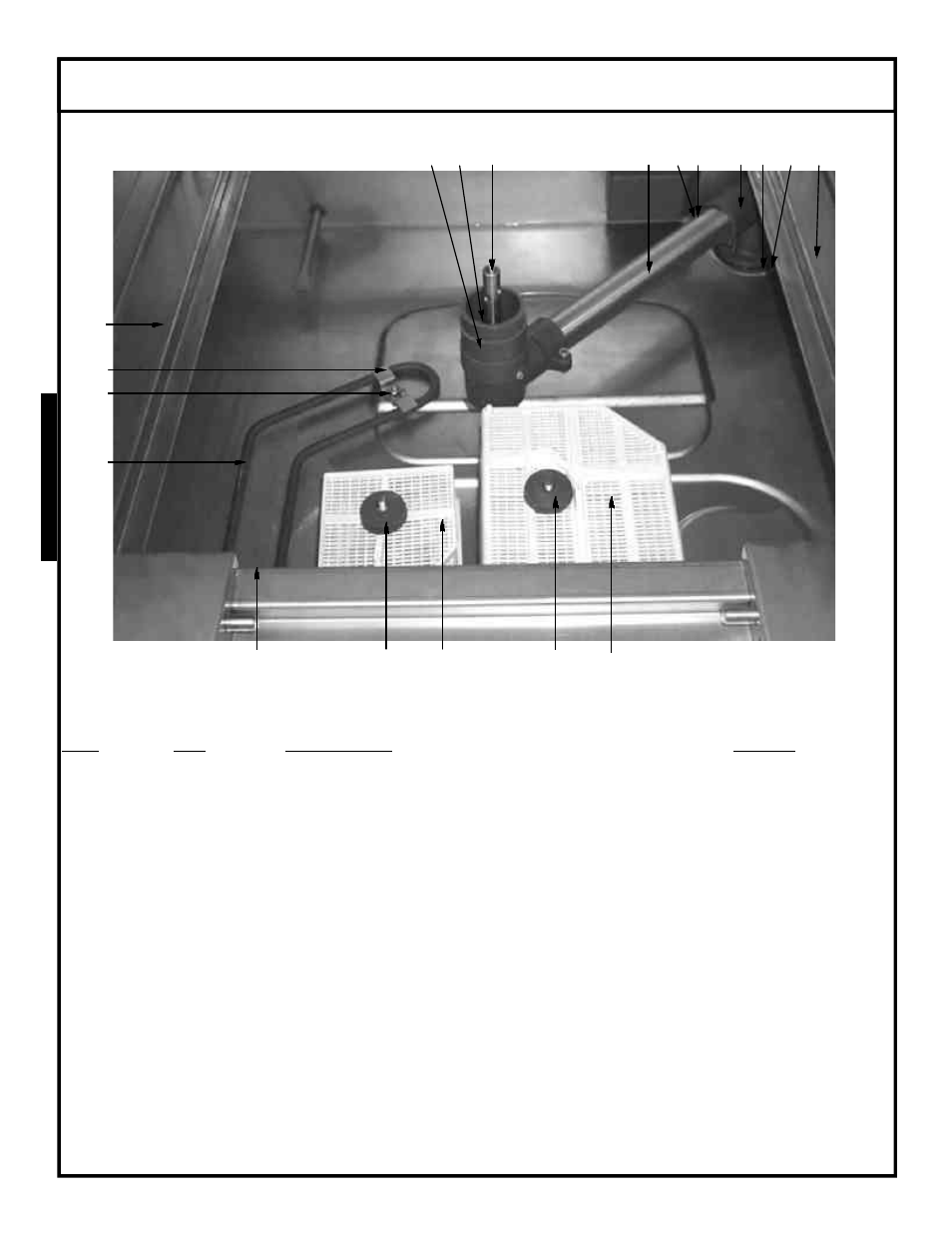

INSIDE TUB VIEW
43
12
11
13
14
01 02
04 05
06
07 08 *09 10
03
12
*13
05
04
12
* Indicates Item Not Shown
