RIMLESS OVAL BATHS
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
SPECIFICATIONS (Oval)
DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING CUTOUT
HEATER
Not
Available
Factory Installed
(S750000 HEATER KIT)
72" (1829 mm) L
42" (1118 mm) W
23" ( 584 mm) H
1176 lb
(535 kg)/
56 lb/ft 2
(273 kg/m 2 )
96 U.S. gal
(364 liters)
126 lb
(57 kg)
19-1/8" (486 mm) A
11"
(279 mm) B
Template
Provided
P/N
P819000
LUNA™ PLUS

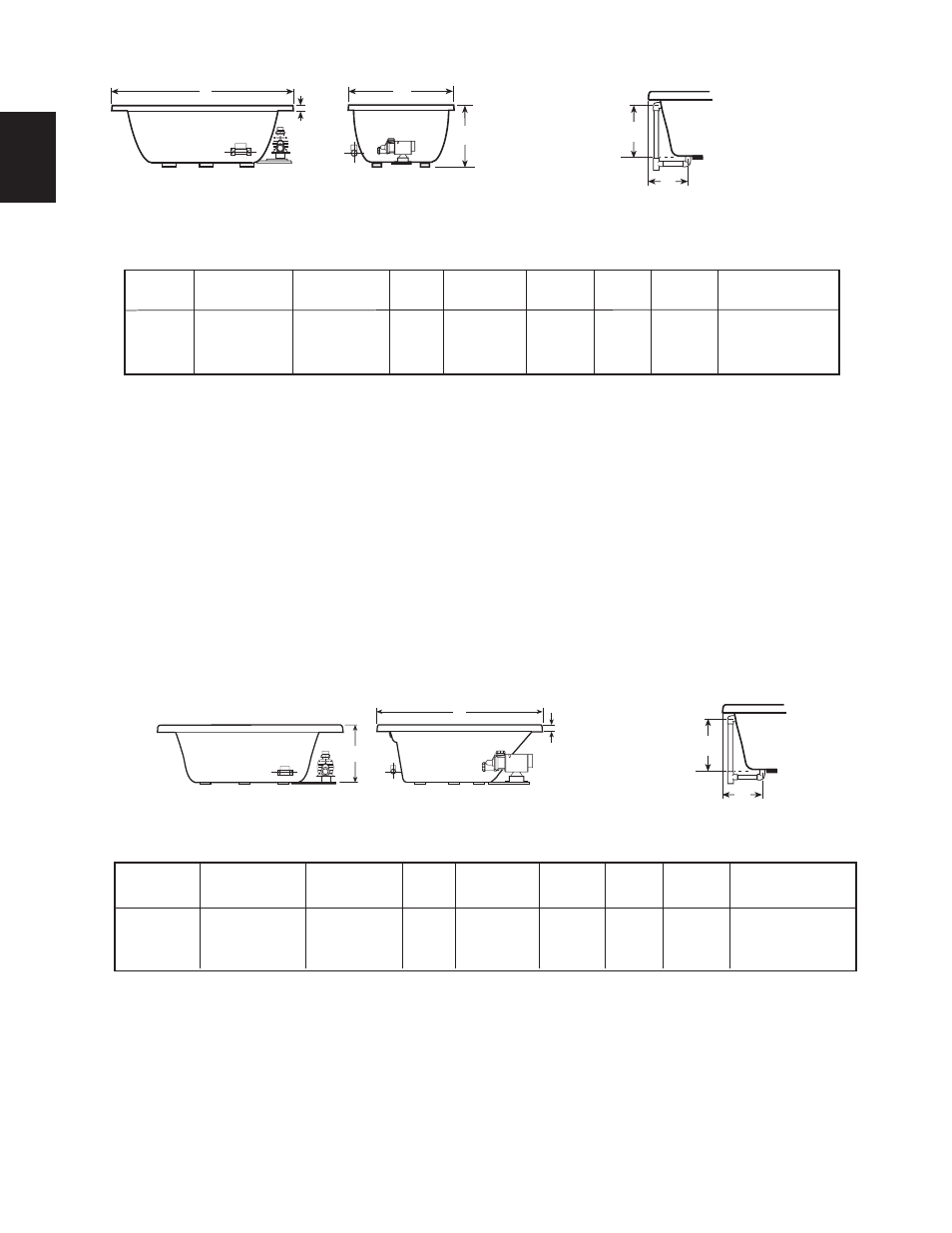

END VIEW
H
W
SIDE VIEW
L
2"
(51 mm)
LUNA PLUS
(Heater)
(Motor)
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4".
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
RapidHeat
TM : 120 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 Amp, 60 Hz. dedicated GFCI protected separate circuit.
2
Jacuzzi Whirlpool Bath © BP43000 2/05
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING
SPECIFICATIONS (Corner)
DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING CUTOUT HEATER
60" (1524 mm) L
60" (1524 mm) L
20-3/4" ( 527 mm) H
984 lb
(447 kg)/
39 lb/ft 2
(190 kg/m 2 )
74 U.S. gal
(280 liters)
118 lb
(54 kg)
TARA™ PLUS 16" (406 mm) A
12-3/8" (314 mm) B Optional See
Page 3
DRAIN/OVERFLOW
A
B
Factory Installed
(S750000 HEATER KIT)
CORNER BATHS
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4".
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
RapidHeat
TM : 120 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 Amp, 60 Hz. dedicated GFCI protected separate circuit.
H
L
2"
(51 mm)
SIDE VIEW END VIEW
TARA PLUS CORNER BATH
(Heater)
(Motor)
DRAIN/OVERFLOW
A
B
