ENGLISH

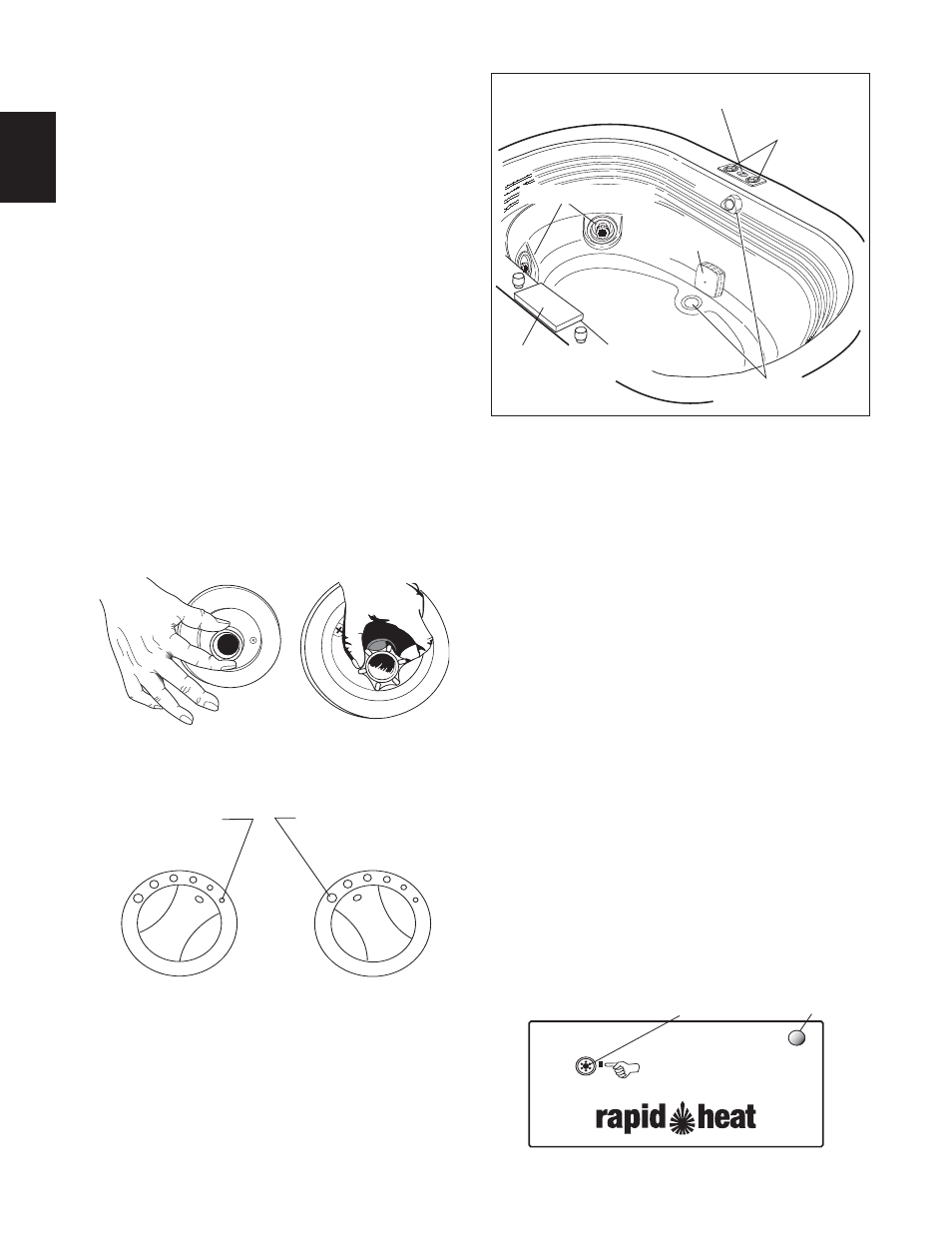

Controlling Whirlpool Action
The whirlpool action in your bath is influenced by three factors –
direction of flow, force of water, and force of air. All whirlpool baths
manufactured by Jacuzzi Whirlpool Bath
© are equipped with adjust-
able PowerPro ® jets, that may be adjustable for one or more of the
three factors.
Direction: To change the direction of the water flow, swivel the
jet nozzle to the desired angle. The jets can be directed individually
toward any location on your body to provide a hydromassage. The
jets can also be adjusted so that they all point in the same direction
(clockwise or counterclockwise) to circulate the water in a circular
motion around the bath, causing a total whirlpool effect.
Water Force: The high volume, fully adjustable jets can be ad-
justed to control the force of the water coming into the bath. For
robust action, increase the force of the flow by rotating the jet handles
to the left (counterclockwise). For a more gentle effect, rotate the
handles to the right (clockwise). Never run the whirlpool system
with all the jets closed.
Force of Air: Two knobs located on the bath serve as controls
for the air induction system. The intensity of the hydromassage whirl-
pool action is determined by the amount of air inducted into the wa-
ter. As the amount of air is increased, the hydromassage action
increases. For maximum air induction, rotate the control knobs fully
counterclockwise to the largest circles. For fewer air bubbles, de-
crease the amount of air induction by rotating the control knob clock-
wise. When the knobs are turned to the smallest circles, only water
is being circulated.
DIRECTIONALLY
ADJUSTABLE
FULLY
ADJUSTABLE
JETS
TURN CLOCKWISE TO
REDUCE AIR FLOW
TURN COUNTER-CLOCKWISE
TO INCREASE AIR FLOW
AIR INDUCTION CONTROLS
10
Jacuzzi Whirlpool Bath © BP43000 2/05
RapidHeat TM Operation
Once the heater is installed and the whirlpool pump is operating,
the heating function is totally automatic. The heater will help main-
tain the temperature of the water in the bath.
Vacuum Switch
The heater is equipped with a preset vacuum switch which will
not allow the heater to turn ON if the pump is not running with water
flowing through the whirlpool system.
High-Limit Switch
The heater includes an exclusive High-Limit switch. This safety
circuit will not false trip from hot tap water. It will only turn off the
heater if the thermostat fails. To reset, press the button. If the high-
limit trips frequently, contact your Authorized Electrical/Mechanical
Service Provider. Visit our web site at http://www.jacuzzi.com/ to
find a Service Provider.
PUSH TO RESET
OVER HEAT
PROTECTION
HIGH LIMIT RESET
HEATER ON
HEATER ON
WATER RAINBOW
FILL SPOUT (OPTIONAL)
COMFORT PLUS
ON/OFF SWITCH
AIR CONTROL
KNOBS
DRAIN/OVERFLOW
(OPTIONAL)
FULLY ADJUSTABLE JETS
TYPICAL BATH FITTINGS
SUCTION
COVER
