ENGLISH
Operation
Note: These instructions pertain to all bath products manufac-
tured by Jacuzzi Whirlpool Bath. Not all features discussed in
this instruction pamphlet apply to all baths.
All baths manufactured by Jacuzzi Whirlpool Bath © are designed
for "fill and drain," which means the bath should be drained after
each use and filled with fresh water by the next bather. This is a
health precaution, as these baths are not designed to hold water
continuously like pools or spas.
OPERATING INSTRUCTIONS
1"
FILL TO AT LEAST
1" ABOVE HIGHEST JET
9
Jacuzzi Whirlpool Bath © BP43000 2/05

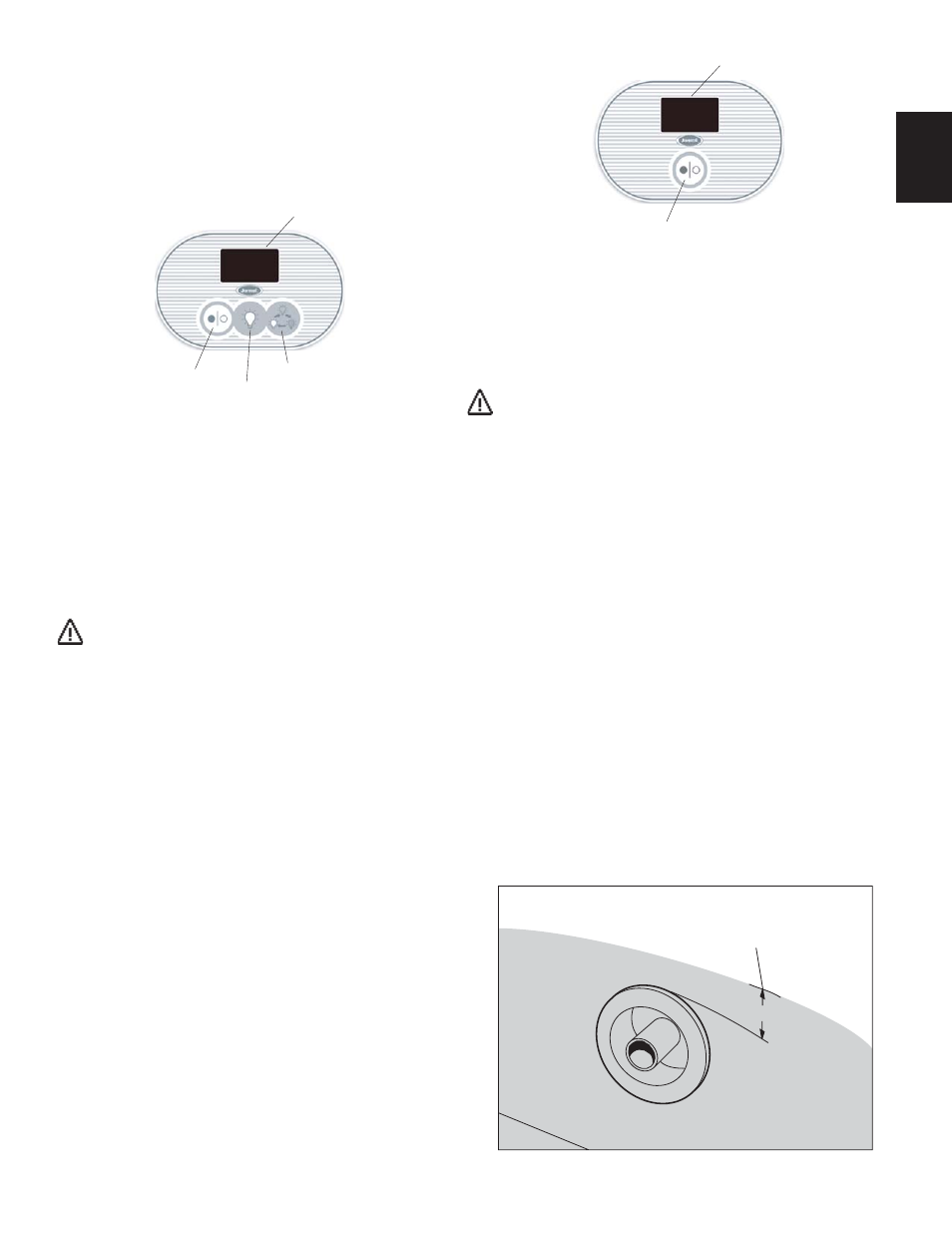

Control Panel
Comfort Plus No Light System
The Comfort Plus control panel, located on the bath, allows you to
control the pump and observe the water temperature while in the
bath . During operation the system displays water temperature
allowing for an approximate temperature fill. The system (pump,
heater, and display) automatically shuts off after 30 minutes of
operation. To restart simply press the ON/OFF button again.
CAUTION: Temperature sensors and values are approximate and
may vary. Use caution when entering heated water.
On/Off Pump/Motor
Pressing this button will turn ON the pump/motor. Pressing a sec-
ond time will turn OFF the pump/motor.
LED Display
The Comfort Plus control panel water temperature displays when
the water level covers the internal water sensor even if the
Comfort
Plus No Light System controls are not turned ON. This feature is
designed to give a temperature indication even if the whirlpool system
is not being used.
Pressing and holding the ON/OFF button for three (3) seconds
displays a "time remaining" minute countdown.
After displaying the
"time remaining" countdown for 30 seconds, the readout reverts back
to the temperature display.
Control Panel
Comfort Plus With Light System
The Comfort Plus With Light System control panel, located on the
bath, allows you to control the pump, observe the water temperature,
and control the Chromotherapy lighting system while in the bath .
During operation the system displays water temperature allowing for
an approximate temperature fill. The Chromotherapy lighting system
controls the 2 Channel Chromotherapy lamps where you can turn on
bath lighting in white, a color of choice, or a continuous flow through
all colors. The system (pump, heater, and display) automatically
shuts off after 30 minutes of operation, the Chromotherapy lighting
system has a 4 hour lamp timeout. To restart the system (pump,
heater, and display) simply press the ON/OFF button again.
CAUTION: Temperature sensors and values are approximate and
may vary. Use caution when entering heated water.
On/Off Pump/Motor
Pressing this button will turn ON the pump/motor. Pressing a sec-
ond time will turn OFF the pump/motor.
Bath Light ON/OFF
Pressing this button will turn ON the bath light(s). The light(s) will
come ON displaying the White colored light. Pressing a second
time will turn all light(s) OFF. (Use the "Light Color Cycle" button to
turn ON the color lights.)
Light Color Cycle
Pressing this button will turn ON the colored light(s) to the "favorite"
light (default is blue). Pressing this button again will begin the light(s)
cycling through each of the available colors. This will continue until
the Light Color Cycle button is pushed again, which stops the light
cycling action on the current color. Press the button again and you
will begin the Light Color Cycle again.
To create a new “favorite” color: Allow the lights to rotate to the new
"favorite" light color. Stop the cycling on that color. Press and hold
down the button for three seconds (the light will then blink to confirm
the new "favorite").
LED Display
The Comfort Plus control panel water temperature displays when
the water level covers the internal water sensor even if the
Comfort
Plus With Light System controls are not turned ON. This feature is
designed to give a temperature indication even if the whirlpool system
is not being used.
Pressing and holding the ON/OFF button for three (3) seconds
displays a "time remaining" minute countdown.
After displaying the
"time remaining" countdown for 30 seconds, the readout reverts back
to the temperature display.
Water Level
Close the drain and fill the bath until water is at least 1" above the
highest jet (see water line indicated in the illustration). Do not turn
on the whirlpool system at any time if the jets are not completely
immersed in water. Running the whirlpool system when there is
insufficient water in the bath could result in water spraying outside
the bath area. Running the whirlpool system without water will dam-
age the recirculating pump.
Do not immerse the control panel by overfilling the bath.
101 101
ON/OFF
PUMP MOTOR
LED DISPLAY
101 101
ON/OFF
PUMP MOTOR
BATH LIGHT ON/OFF
LIGHT COLOR CYCLE
LED DISPLAY
