Important: Read complete instructions before beginning installation.
Each whirlpool bath arrives ready for installation, completely equipped with motor/pump assembly and plumbing and fittings necessary for
whirlpool operation. An optional drain/overflow kit is available for installation on the bath.
Remove the bath from the carton. Retain the shipping carton until satisfactory inspection of the product has been made. Do not lift the
bath by the plumbing at any time; handle by the shell only.
Immediately upon receipt, inspect the shell before installing. Should inspection reveal any damage or defect in the finish, do not install the
bath. Damage or defect to the finish claimed after the bath is installed is excluded from the warranty. Jacuzzi Whirlpool Bath's responsibility for
shipping damage ceases upon delivery of the products in good order to the carrier. Refer any claims for damage to the carrier. For definitions
of warranty coverage and limitations, refer to the published warranty information packed with the product.
All bath units are factory tested for proper operation and watertight connections prior to shipping. Note: Prior to installation, the bath
must be filled with water and operated to check for leaks that may have resulted from shipping damage or mishandling. Jacuzzi
Whirlpool Bath
© is not responsible for any defect that could have been discovered, repaired, or avoided by following this inspection and testing
procedure.
SPECIFICATIONS (Rectangular)
MODEL
PRODUCT
WEIGHT
OPERATING
GALLONAGE
TOTAL WEIGHT/
FLOOR LOADING DIMENSIONS
DRAIN/OVERFLOW
DIMENSIONS
SKIRT &
MOUNTING CUTOUT HEATER
AMIGA™ PLUS
72" (1829 mm) L
*
36" ( 914 mm) W
20-3/4" ( 533 mm) H
772 lb
(351 kg)/
43 lb/ft 2
(210 kg/m 2 )
50 U.S. gal
(186 liters)
105 lb
(48 kg)
16-7/8" (429 mm) A
14" (356 mm) B Optional,
U-Frame 70" x 34"
NOTE: The overall dimensions are nominal with a tolerance of +0 and -1/4".
FOR ALL UNITS: Electrical Service Requirements: All require a dedicated GFCI protected separate circuit.
RapidHeat
TM : 120 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz. dedicated GFCI protected separate circuit.
*Add 1/4" to this dimension when roughing-in for 3-wall niche.
RECTANGULAR BATHS
SPECIFICATIONS
Factory Installed
(S750000 HEATER KIT)
1
Jacuzzi Whirlpool Bath © BP43000 2/05
CETRA © 536
PLUS
WITH INTEGRAL
SKIRT
60" (1524 mm) L
*
36" ( 914 mm) W
21-1/4" ( 553 mm) H
742 lb
(337 kg)/
50 lb/ft 2
(244 kg/m 2 )
48 U.S. gal
(181 liters)
92 lb
(42 kg)
Integral NA 18-1/2" ( 470 mm) A
9"
( 229 mm) B
Factory Installed
(S750000 HEATER KIT)
SIGNA © 5 PLUS
60" (1524 mm) L *
42" (1067 mm) W
22" ( 559 mm) H
708 lb
(321 kg)/
40 lb/ft 2
(195 kg/m 2 )
42 U.S. gal
(159 liters)
108 lb
(49 kg)
17-1/2" (445 mm) A
12-1/2" (318 mm) B Optional,
U-Frame 58" x 40"
SIGNA © 6 PLUS
72" (1829 mm) L *
42" (1067 mm) W
22" ( 559 mm) H
826 lb
(375 kg)/
39 lb/ft 2
(190 kg/m 2 )
55 U.S. gal
(208 liters)
118 lb
(54 kg)
16-7/8" (429 mm) A
14" (356 mm) B Not
Available
70" x 40" Factory Installed
(S750000 HEATER KIT)
Factory Installed
(S750000 HEATER KIT)
DRAIN/OVERFLOW
A
B
L
1"
(25 mm)
H

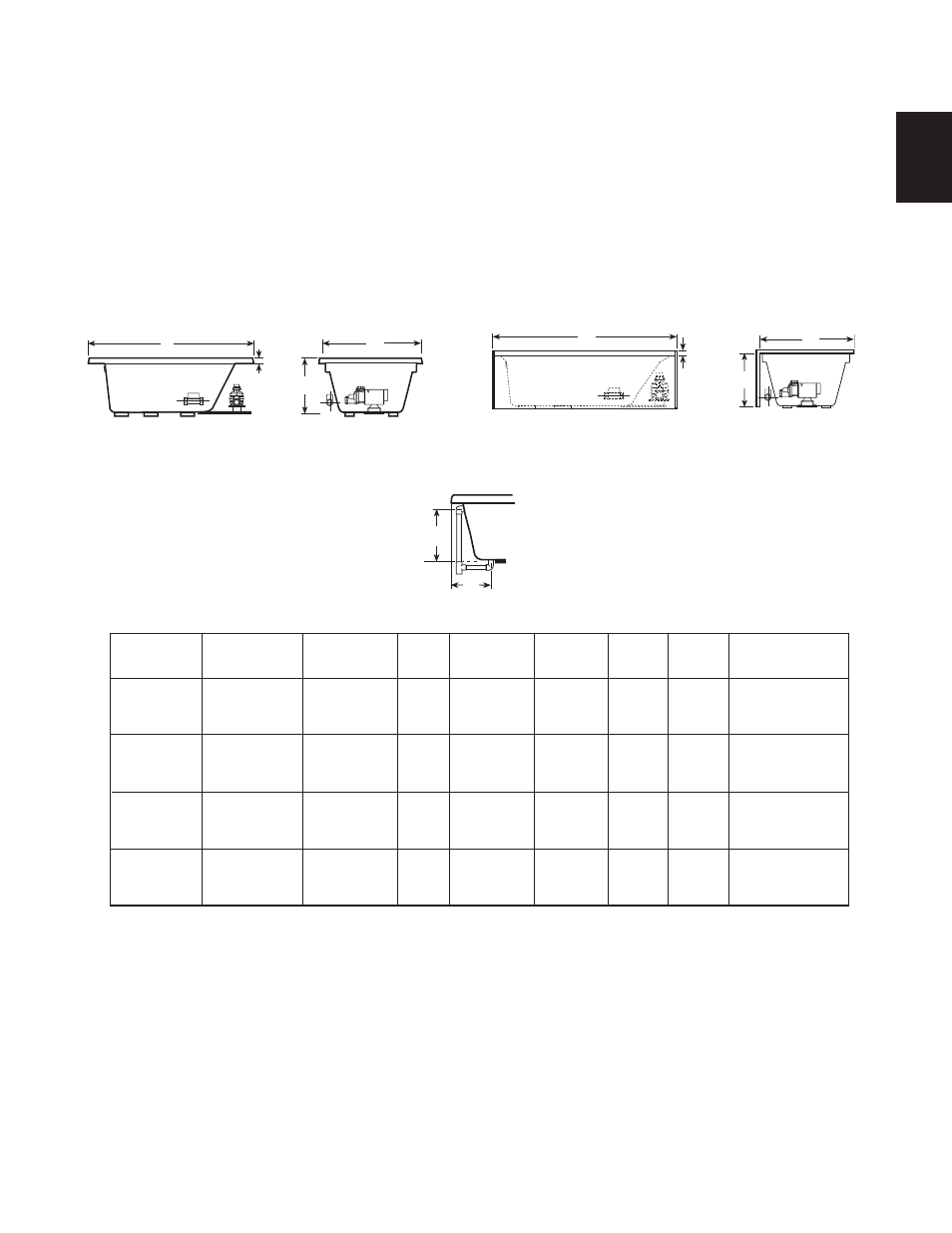

W
SIDE VIEW
PLUS BATHS WITH INTEGRAL SKIRT
END VIEW
(Heater)
(Motor)
PLUS BATHS WITHOUT INTEGRAL SKIRT
END VIEW
H
W
SIDE VIEW
L
2"
(51 mm) (Heater)
(Motor)
