11
ENGLISH

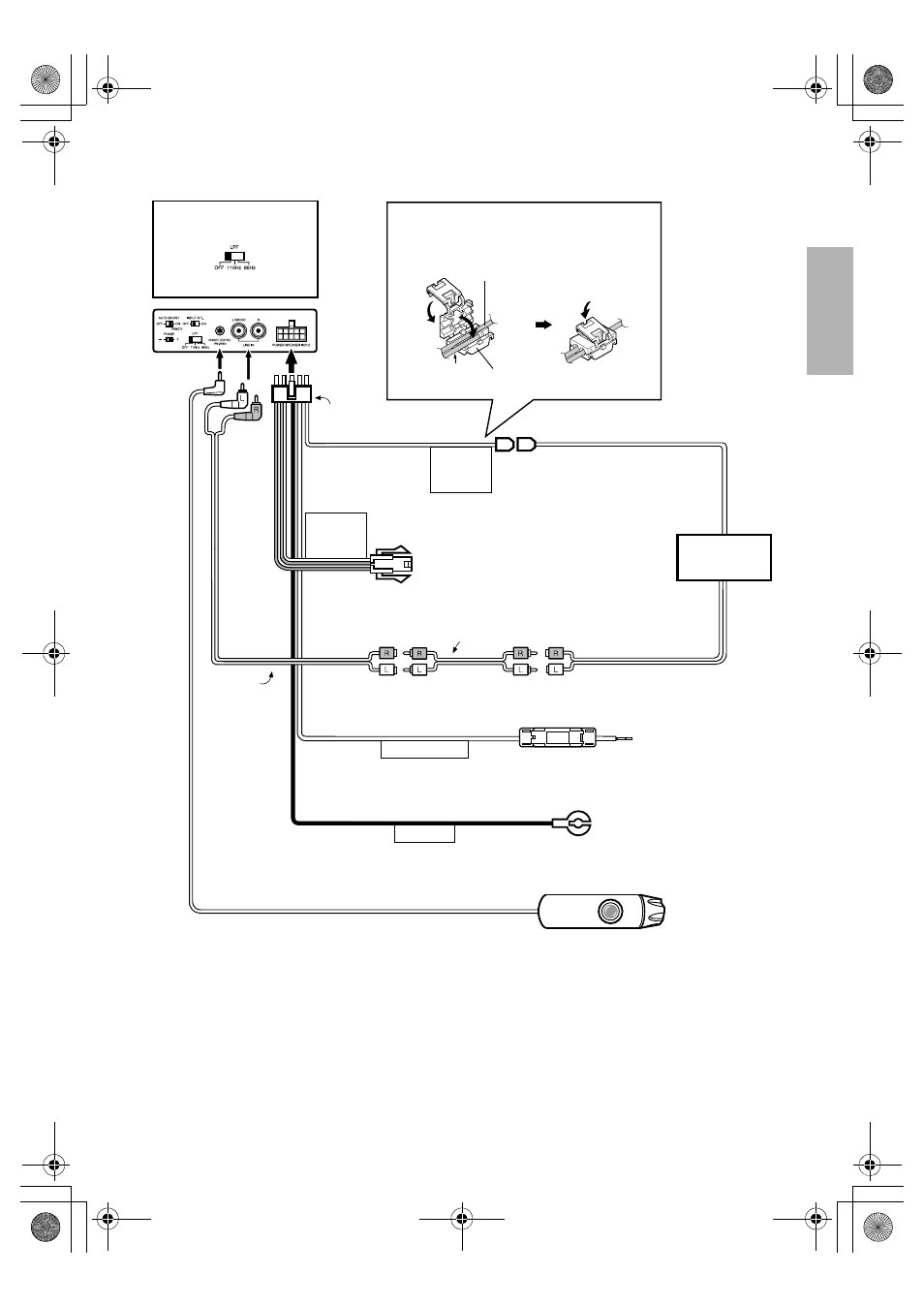

[Connecting to subwoofer output]
NOTES:
• Set the subwoofer output level of the car stereo to the maximum and use the remote control to
adjust the volume of the unit. (However, when the sound of the unit becomes distorted, lower the
subwoofer output level of the car stereo.)
• When the subwoofer output is 1 channel, connect to Lch. Insulate plugs that are not used with
vinyl tapes.
CS-DA1
15A
Blue/White
Remote input Remote output
L-shaped
pin plug
relay cord
Speaker
input
Power cord
Yellow
⅐ Connect only to the plus +
side of the battery.
Black
⅐ Connect to the metal part
(such as the chassis) of the
car.
Remote controller
Pin cord (not supplied)
Subwoofer output
Set the LPF switch to
AOFFB. When no remote output is equipped for
your car receiver, connect to the ACC
power.
ACC power cord
Crimp connector
Fuse
This is not used when LINE IN
terminal is used.
JVC Car
receiver, etc.
TO
SPEAKER
INPUT
TO
REMOTE
OUT
POWER LEAD
GROUND
