POWERED SUBWOOFER

SUBWOOFER MIT EINGEBAUTEM VERSTÄRKER

SUPER WOOFER AMPLIFIÉ
SUBWOOFER MET VERSTERKING

H“

UX-1000/1500R/2000R

Connecting cord (supplied)
AnschluBkabel (im Lieferumfang enthalten)

Cordon de connexion (fourni)
Verbindingskabel (bijgeleverd)

R

MONO/

L

SP-PW3000

■<103=

LOW LEVEL INPUT

Connect the speaker cords in parallel to the speaker terminals on the Micro Component System.
Schließen Sie die Lautsprecherkabel parallel an die Lautsprecheranschlüsse am Mikrokomponentensystem an.

Connecter les cordons d’enceinte en parallèle aux prises d’enceinte de la microchaîne.
Sluit de luidsprekerkabels parallel aan op de luidsprekeraansluitpunfen op het Mikrokomponentensysteem.

HIGH LEVEL INPUT

,CD

<¡ SP-

PW3000

2 4

1

©POWER

—-ON

M.OFF

O

VOLUME

VOLUME

ENGLISH

Thank you for purchasing this JVC product. Please

read

these

instructions

carefully

before

starting

operation to be sure to obtain optimum performance

and a longer service life from the unit.

IMPORTANT (In the United Kingdom)
Mains Supply (AC 230VT;, 50 Hz only)

DO NOT cut off the mains plug from this equipment.

If the plug fitted is not suitable for the power points

in your home or the cable is too short to reach a

power point, then obtain an appropriate safety

approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical

approved type, as originally fitted, and to replace

the fuse cover.

If nonetheless the mains plug is cut off ensure to

remove

the

fuse

and

dispose

of

the

plug

immediately, to avoid a possible shock hazard by

inadvertant connection to the mains supply.

IMPORTANT

DO NOT make any connection to the terminal which

is marked with the letter E or by the safety earth

symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are

coloured in accordance with the following code:

Blue to N (Neutral) or Black

Brown to L (Live) or Red

As these colours may not correspond with the

coloured markings identifying the terminals in your

plug proceed as follows:

The wire which is coloured blue must be connected

to the terminal which is marked with the letter N or

coloured black.

The

wire

which

is

coloured

brown

must

be

connected to the terminal which is marked with the

letter L or coloured red.

IF

IN

DOUBT

-

CONSULT

A

COMPETENT

ELECTRICIAN.

WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure

that

may

be

of

sufficient

magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence

of

important

operating

and

maintenance (servicing) instructions in the
literature accompanying the appliance.

SAFETY PRECAUTIONS

Prevention of Electric Shocks, Fire Hazards and

Damage

1. Do not handle the power cord with wet hands.

2.

When unplugging from the wall outlet, always

grasp and pull the plug, not the power cord.

3.

Consult

your

nearest

dealer

when

damage,

disconnection, or contact failure affects the cord.

4. Do not bend the cord severely, or pull or twist it.

5. Do not modify the power cord in any manner.

6

.

To avoid accidents, do not remove screws to

disassemble the unit and do not touch anything

inside the unit.

7. Do not insert any metallic objects into the unit.

8

. Unplug the power cord when there is a possibility

of lightning.

9. If water gets inside the unit, unplug the power cord

from the outlet and consult your dealer.

10. Do not block the unit’s ventilation holes that allow

heat to escape.

11. Do not install the unit in a badly ventilated place.

12

.

Do not place the unit upside down.

13. Be sure to unplug the power cord from the outlet

when going out or when the unit is not in use for

an extended period of time.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent

damage, locate the apparatus as follows:

1. Front:

No obstructions and open spacing.

2. Sides/Top/Back:

No obstructions should be placed in the areas

shown by the dimensions below.

3. Bottom:

Place on the level surface. Maintain an adequate

air path for ventilation by placing on a stand with a

height of 10 cm or more.

HANDLING PRECAUTIONS

Do not use this unit in direct sunlight where it would

be exposed to high temperatures above 40°C (104°F).

1. Avoid installing in the following places

• Where it could be subject to vibrations.

• Where it is excessively humid, such as in a

bathroom.

• Where it could be magnetized by a magnet or

speaker.

2. Condensation

In the following cases, condensation may occur in

the unit, in which case the unit may not operate

correctly.

• In a room where a heater has just been switched

on.

• In a place where there is smoke or high humidity.

• When the unit is moved directly from a cold to a

warm room.

In these cases, set the © POWER button to OFF

and wait 1 or 2 hours before use.

3. Volume setting

CDs/MDs produce very little noise compared with

analogue sources. If the volume level is adjusted

for these sources, the speakers may be damaged

by the sudden increase of output level. Therefore,

lower the volume before operation and adjust it

as required during play.

4. Keep this unit away from your TV

When this unit is used near a TV, the TV picture

could be distorted. If this happens, move this unit

away from the TV. If this does not correct the

situation, avoid using this unit when the TV is

turned on.

5. Cleaning the cabinet

If the cabinet gets dirty, wipe it with a soft, dry cloth.

Never use benzine or thinner as these could

damage the surface finish.

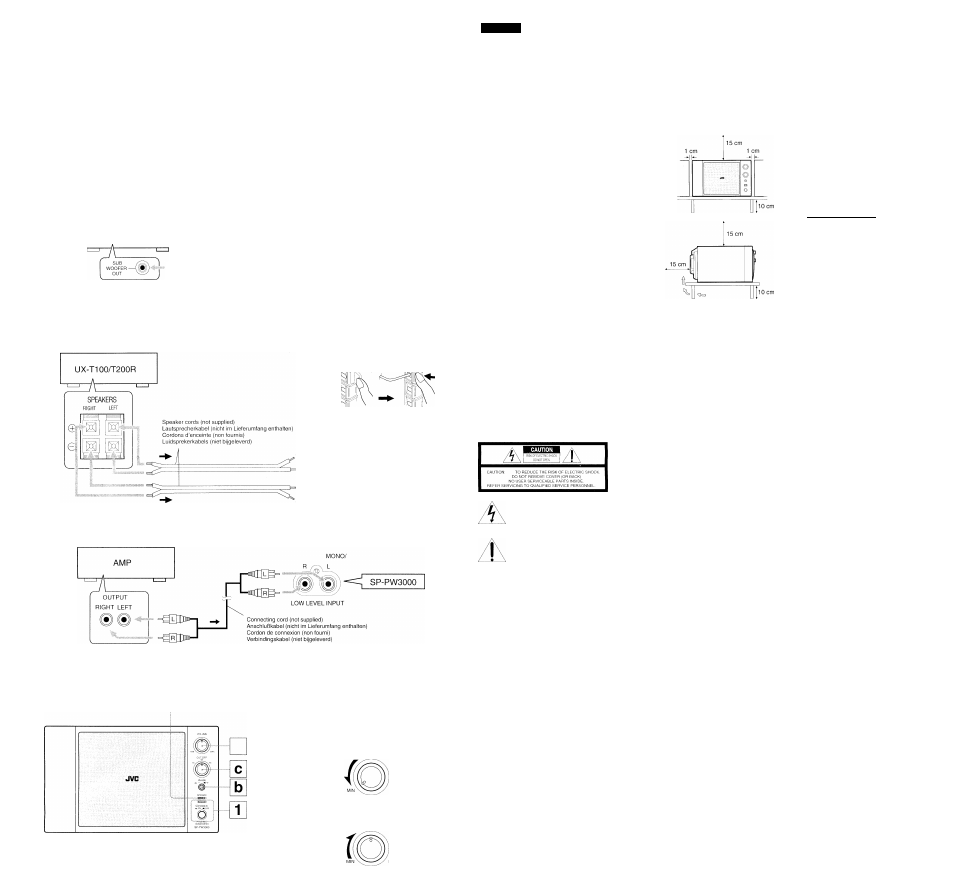

CONNECTIONS:

Plug the AC power cord after all connections are

complete.

□ When connecting JVC Ultra Micro Component

System (UX-1000/1500R/2000R)

Q When connecting JVC Micro Component System

(UX-T100/T200R etc.)

Note:

No sound comes out of this speaker if you

connect the headphones to your Micro Component

System.

B When connecting a Preamplifier of any

manufacturers’

CAUTION:

DO NOT use the REC OUT jacks of

the preamplifier to connect this speaker.

OPERATIONS: B_ _ _ _ _ _ _ _ _ _

Presetting the Volume

You need to preset the volume level of this speaker

to match those of the other speakers.

Once you preset the volume level, it is stored as your

reference level and the volume level of this speaker

will be able to automatically change as the volume

level of the stereo system changes.

iTJ

Turn on the power.

The POWER indicator lights up.

[

2

]

Set the volume to “MIN.”

[

3

]

Adjust the volume of the connected stereo system

to your listening level.

[4] Adjust the volume to balance it with those of the

other speakers.

To turn off this speaker,

press the ® POWER button

again so that the POWER indicator goes off. (The

indicator may not go off ¡mediately.)

About the OPERATE Indicator (@)

The OPERATE indicator lights up while sound signals

are coming into this speaker.

Adding the Richness to the Bass
(PHASE: E)

Normally set the PHASE button in the “M -i-” position.

If you want to add the richness more to the bass,

press the PHASE button to set it either in the

position or the “M

+”

position, whichever can add the

richness to the bass.

Cutting Off the Higher Frequencies
(CUT OFF: 0)

Set the CUT OFF selector to the position giving you

the preferable sound, according to the other speaker

system used and to the played back music.

Automatic Operating Status On/Off

To save energy, this speaker enters the standby mode

(the OPERATE indicator goes off) if no (or very weak)

sound signals come into this unit for a while.

When sound signals come in again (the OPERATE

indicator comes on), this speaker enters the operating

mode and reproduces the sounds.

Spedficotions

Model: Powered subwoofer

Speaker unit: Woofer 10 cm (4 Q)

x

2

Rated impedance: 4 Q

Frequency response: 40- 100 Hz

Output sound pressure level: 81 dB/W»m

Input terminals:

LOW LEVEL: 12 mV/56 kQ

HIGH LEVEL: 230 mV/430

Q

Output power: 25 W -i- 25 W (Max.)

20 W-k20W(10%THD*)

Power requirements; AC 230 V%, 50 Hz

Power consumptions: 30 W

Dimensions; Approx. 258

x

158

x

294 mm (W/H/D)

Mass: Approx. 5.8 kg

* THD: Total Harmonic Distortion

Design and specifications are subject to change

without prior notice.
