Jet Tools JOB SITE TABLE SAW JBTS-10MJS - Manual (Page 14)

14

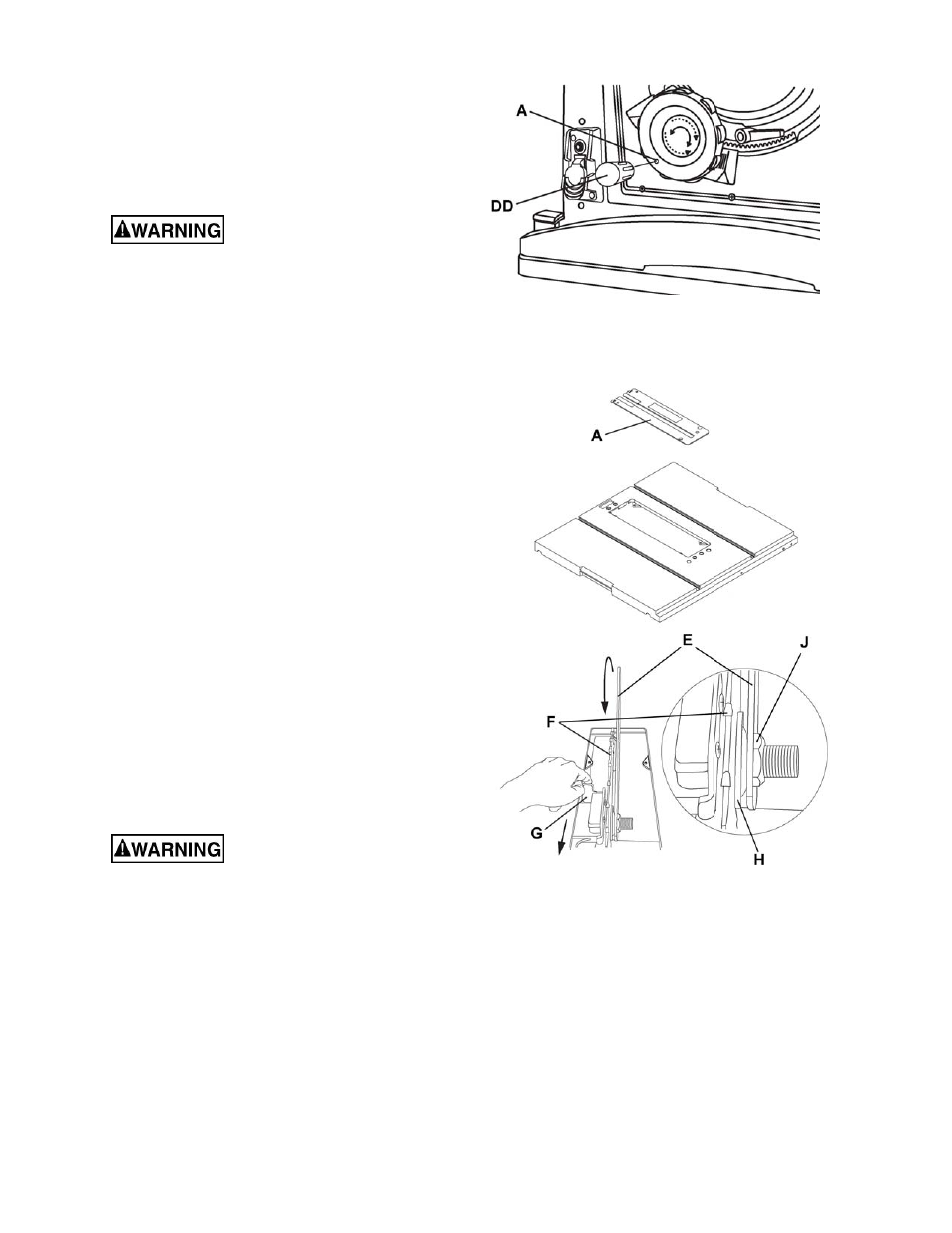

Handwheel Handle
Thread the handwheel handle (DD, Fig. 10) into the
handwheel hole (A. Fig. 10), and then tighten the
nut against the handwheel with a 10 mm wrench.
Installing the Blade
To avoid injury from an
accidental start, make sure the switch is in the
OFF position and the plug is disconnected from
the power source outlet.
Referring to Figure 11:
1. Remove the table insert (A).
2. Place the blade onto the arbor with the blade
teeth pointing forward to the front of the saw.
3. Make sure the blade fits flush against the inner
flange.
4. Clean the outer blade flange (H) and install it
onto the arbor and against the blade.
5. Thread the arbor nut onto the arbor, making
sure the flat side of the nut is against the blade,
then hand-tighten.
6. Pull the arbor locking lever (G) toward the front
of the machine while spinning the blade by
hand until the latch locks into place and the
blade will no longer turn.
7. Place the wrench (E) on the arbor nut and turn
clockwise (toward the rear of the saw table).
8. Lower the blade to the down position. Replace
the table insert (A) and the blade guard.
Important: Do not operate this saw until the blade
and blade guard splitter are aligned and in working
order.
Removing the Blade
To avoid injury from an
accidental start, make sure the switch is in the
OFF position and the plug is disconnected from
the power source outlet.
Referring To Figure 11:
1. Remove the table insert (A) and raise the blade
to the maximum height by turning the blade
elevation handwheel clockwise.
2. Remove blade guard.
3. Adjust the blade to the 90° vertical position by
unlocking the blade tilting lock knob and turning
the bevel tilting handwheel counterclockwise,
and then lock into position.
4. Pull the arbor locking lever (G) toward the front
Figure 10
Figure 11
of the tool while spinning the blade by hand
until the latch locks into place and the blade will
no longer turn.
5. Place the blade wrench (E) on the arbor nut (J).
6. Loosen and remove the arbor nut and the
flange by pulling the wrench towards the front
of the machine.
7. Then remove the blade (F). Clean but do not
remove the inner blade flange before
reassembling the blade.
