Service as Required

RG,RG34710,5594

–19–27JUL06–1/1

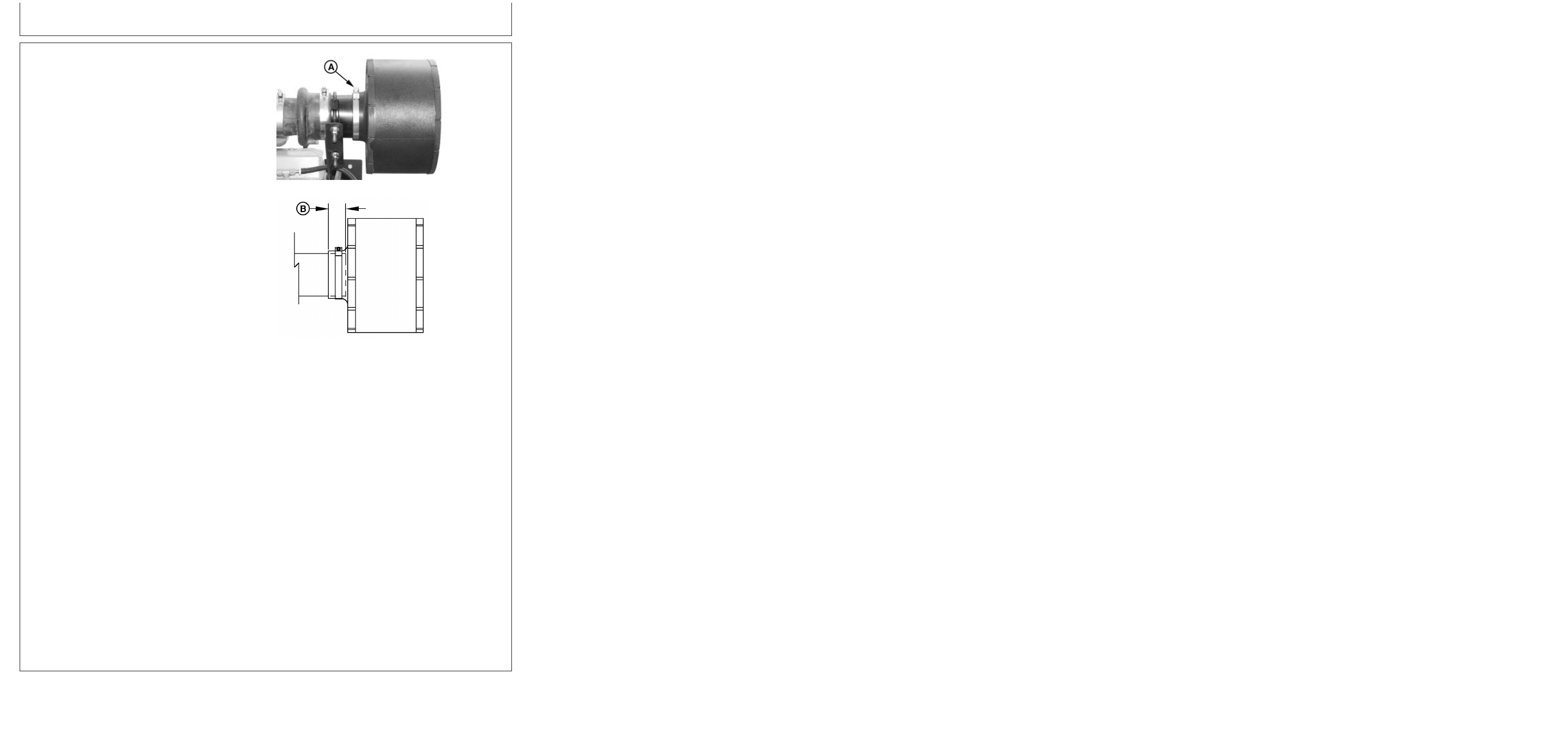

Replacing Single Stage Air Cleaner

RG11319A

–UN–06SEP00

Single Stage Air Filter

RG11320

–UN–07SEP00

Installation of Single Stage Air Cleaner

A—Outlet Neck Clamp
B—Filter to Engine Overlap

IMPORTANT: ALWAYS REPLACE air cleaner when air

restriction indicator shows a vacuum of
625 mm (25 in.) H

2

O, is torn, or visibly

dirty.

NOTE: This procedure applies to John Deere single stage

air cleaner kits. Refer to manufacturers’
instructions for servicing air cleaners not supplied
by John Deere.

1. If equipped, loosen body clamp.

2. Loosen clamp around outlet neck (A).

3. Remove air cleaner.

4. Install new filter so that overlap (B) of air cleaner outlet

neck and engine intake pipe is to specification below.

Specification

Air Cleaner Neck to Engine
Intake—Overlap

38 mm (1.5 in)

..................................................................

5. Tighten neck clamp (A) to specification below.

Specification

Air Cleaner Neck Clamp—Torque

6.8 N•m (60 lb-in.)

.................................

IMPORTANT: Do NOT overtighten body clamp.

Overtightening may cause crushing of
air cleaner body. Tighten body clamp
only until snug.

6. If equipped, tighten body clamp until snug.

IMPORTANT: Whenever the air cleaner has been

serviced or removed, ALWAYS fully
depress the air restriction indicator
reset button (if equipped) to assure
accurate readings.

7. If equipped, fully depress air restriction indicator reset

button and release to reset indicator.

40-5

080706

PN=178
