Jensen HD5212 - Manual (Page 7)

3

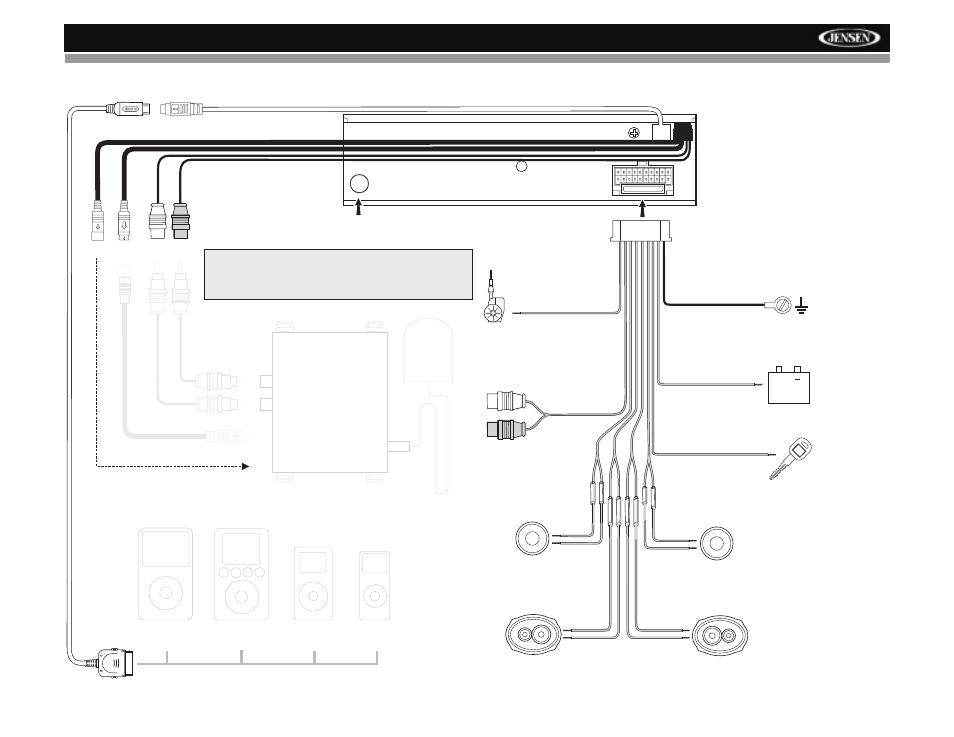

HD5212
Gray/Black (-)
Gray (+)
White/Black (-)
White (+)
Violet (+)
+
Green (+)
Green/Black (-) Violet/Black (-)
15A
iPod Nano iPod Mini iPod iPod Gen5
Power Antenna (BLUE)
Connect to power antenna
or amplifier. If not used,
tape bare end of wire.
Accessory/Ignition (RED)
Connect to existing radio
wire or radio fuse.
Ground (BLACK)
Connect to ground
terminal or clean,
unpainted part of chassis.
Memory/Battery (YELLOW)
Connect to battery or 12 volt
power source that is always live.
The radio will not work if this
wire is not connected.
Amplifier Wiring (GRAY)
Connect line out for optional
external amplifiers. The RED
connector is for the right and
the WHITE connector is
for the left.
Antenna Connector
LF/AVG RF/AVD
LR/ARG RR/ARD
TERK XMDJEN100 cables sold separately.
TERK XMD1000 Direct Tuner and antenna sold separately.
tuner sold separately. SiriusConnect SC-C1
SIRIUS XM XM L XM R
JLink iPod
Cable (Included)
Satellite
Radio
Tuner
Wiring
