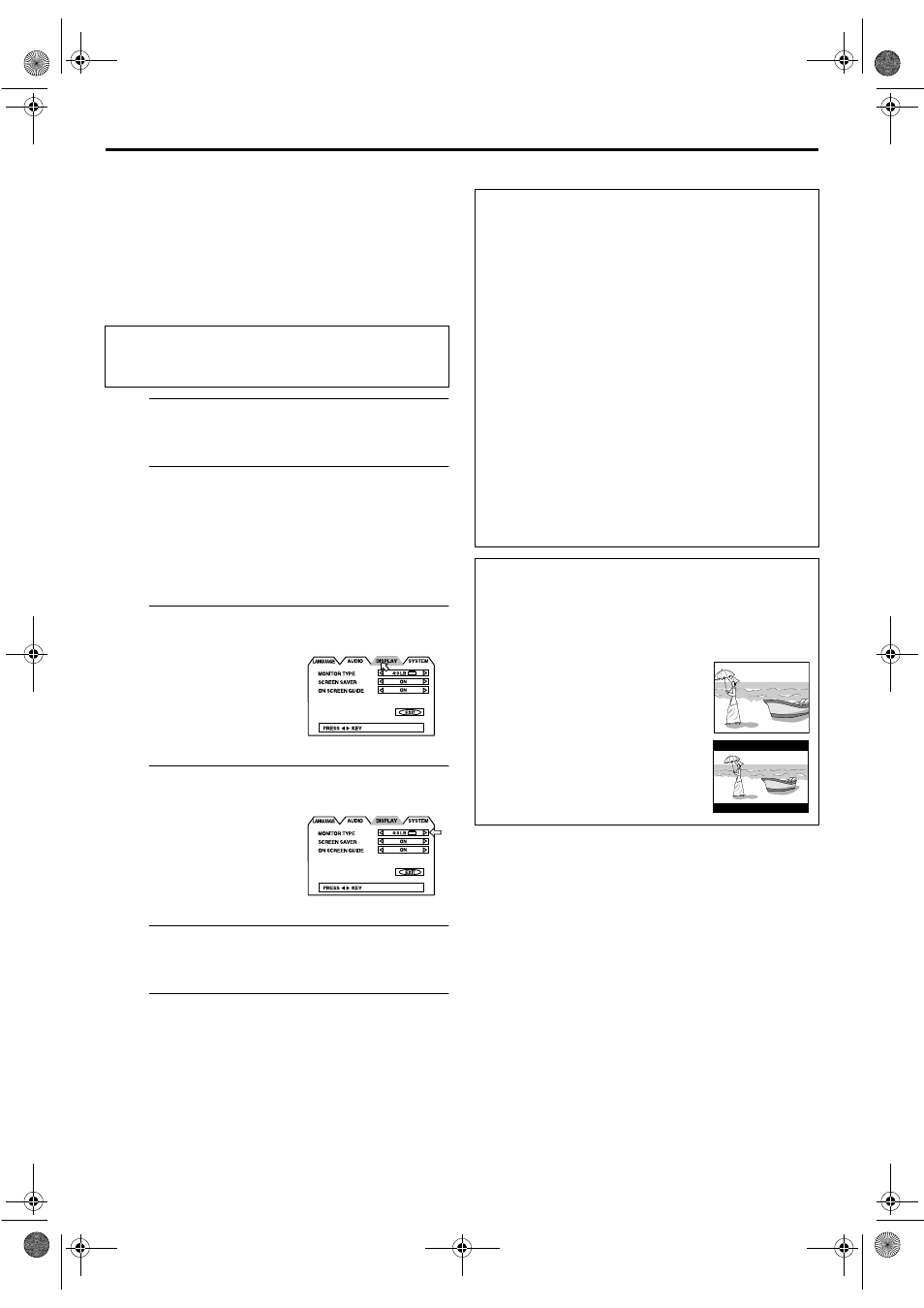

INITIAL SETTINGS (cont.)
Monitor Set
(DVD deck)
You can select the monitor type depending the TV used
when you play back DVD VIDEO discs recorded for
wide-screen TVs.
A
Turn on the unit.
Press 1.
B
Select the DVD deck.
On the unit
Press S-VHS/DVD repeatedly so that the DVD indicator
lights up.
On the remote control
Press DVD so that the DVD indicator lights up.
C
Access the DVD menu screen.
D
Select the mode.
E
Select the mode setting.
Press w e to select the desired setting.
F
Return to the normal screen.
Press SET UP MENU.
* The default setting is bold in the table below.
● Turn on the TV and select the video channel (or AV
mode).
● Slide the TV/S-VHS/DVD switch to the right.
A Press SET UP MENU.
B Press w e to move the
arrow to “DISPLAY”.
Press rt to move the arrow
to “MONITOR TYPE”.
8 MONITOR TYPE
16:9 WIDE : Select this when you connect the unit
to a wide-screen TV with 16:9 aspect
ratio. The unit automatically adjusts
the screen width of the output signal
correctly when playing back a 4:3
image source.
4:3PS : Select this when you connect the unit
to a TV with 4:3 aspect ratio. When
you play back a 16:9 image recorded
on a DVD VIDEO disc, the left and
right sides of the image are
automatically cut off. Depending on
the disc, it may not be possible to
play back in this mode. In that case,
set to “4:3LB”.
4:3LB : Select this when you connect the unit
to a TV with 4:3 aspect ratio. When
you play back a 16:9 image recorded
on a DVD VIDEO disc, it is displayed
with black bands at the top and
bottom of the screen.
Pan&Scan/Letter Box
In general, DVD VIDEO disc are produced for a wide-screen
TV with 16:9 aspect ratio.
Material with this ratio will not fit to a TV with 4:3 aspect
ratio. There are two styles to display the image, “Pan&Scan”
(PS) and “Letter Box” (LB).
Pan&Scan
The right and left side of the image are
cut off. The image fills the screen.
Letter Box
Black bands appear at the top and
bottom of the image.The image itself
appears in 16:9 aspect ratio.
