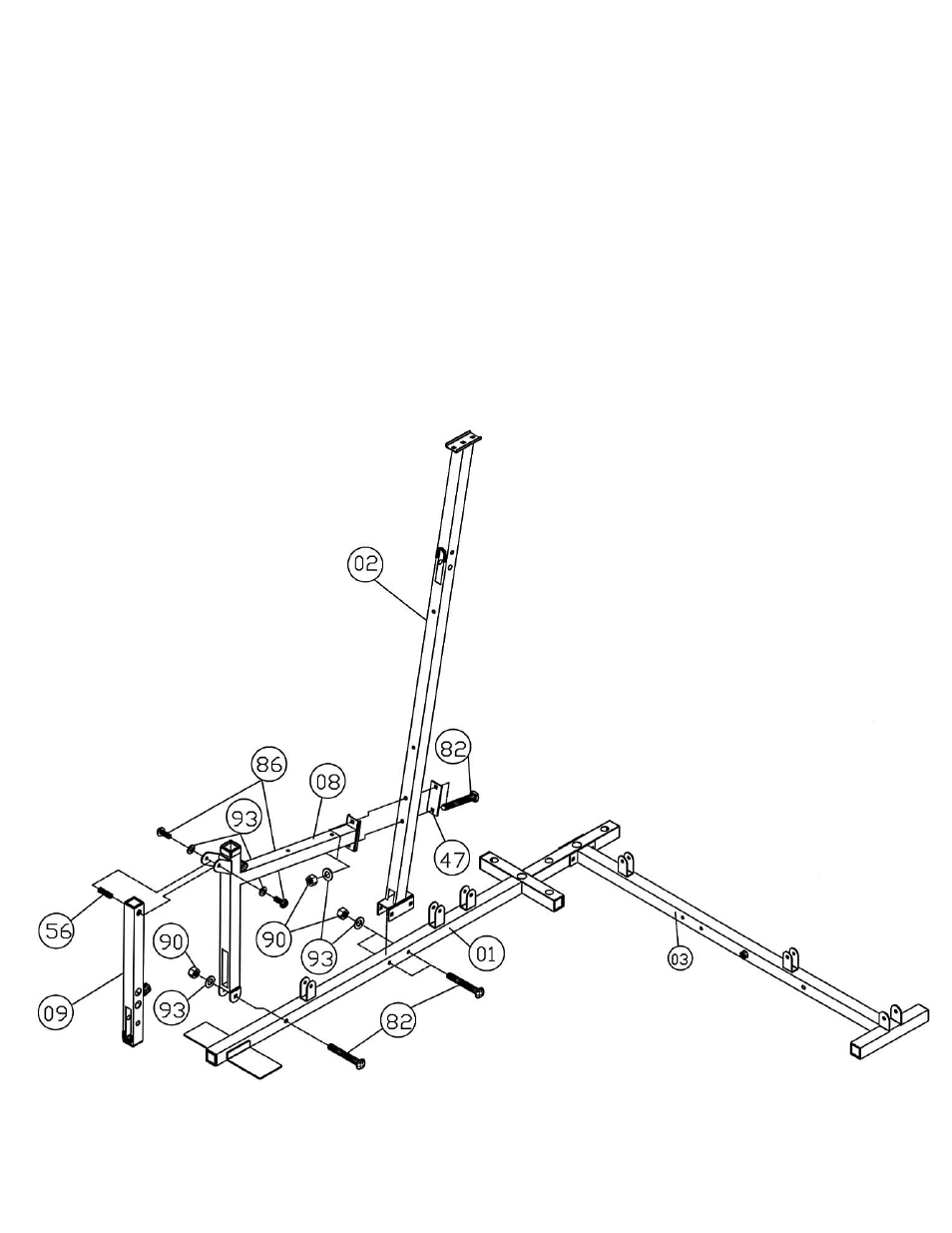

STEP 2 (See Diagram 2)

A.) Attach the Right Vertical Beam (#2) to the Right Base Frame (#1). Secure it with two M10

x 2 ½” Carriage Bolts (#82),

¾” Washers (#93), and M10 Aircraft Nuts (#90). NOTE:

Do not tighten the Nuts and Bolts yet.

B.) Attach the Right Seat Support (#8) to the Right Base Frame (#1). Secure it with one M10

x 2 ½” Carriage Bolt (#82),

¾” Washer (#93), and M10 Aircraft Nut (#90).

C.) Attach the Right Seat Support (#8) to the Right Vertical Beam (#2). Secure it with one

Bracket (#47), two M10 x 2 ½” Carriage Bolts (#82), two

¾” Washers (#93), and two

M10 Aircraft Nuts (#90).

D.) Attach the Leg Developer (#9) to the Right Seat Support (#8). Secure it with one M10 x 2”

Axle (#56), two M10 x ¾” Allen Bolts (#86), and two

¾” Washers (#93). NOTE: Do not

over tighten the bolts. Make sure the Leg Developer is able to swivel.

DIAGRAM

2
