Assembly instruction, Diagram 1 – Impex MWM 1801 User Manual
Page 6
ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.
NOTE: It is strongly recommended this machine to be assembled by two or more people to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Attach the Left Base Frame (#3) to the Right Base Frame (#1). Secure them with one Bracket
(#47), two M10 x 2 ½” Carriage Bolts (#82), two
∅
¾” Washers (#93), and two M10 Aircraft
Nuts (#90).

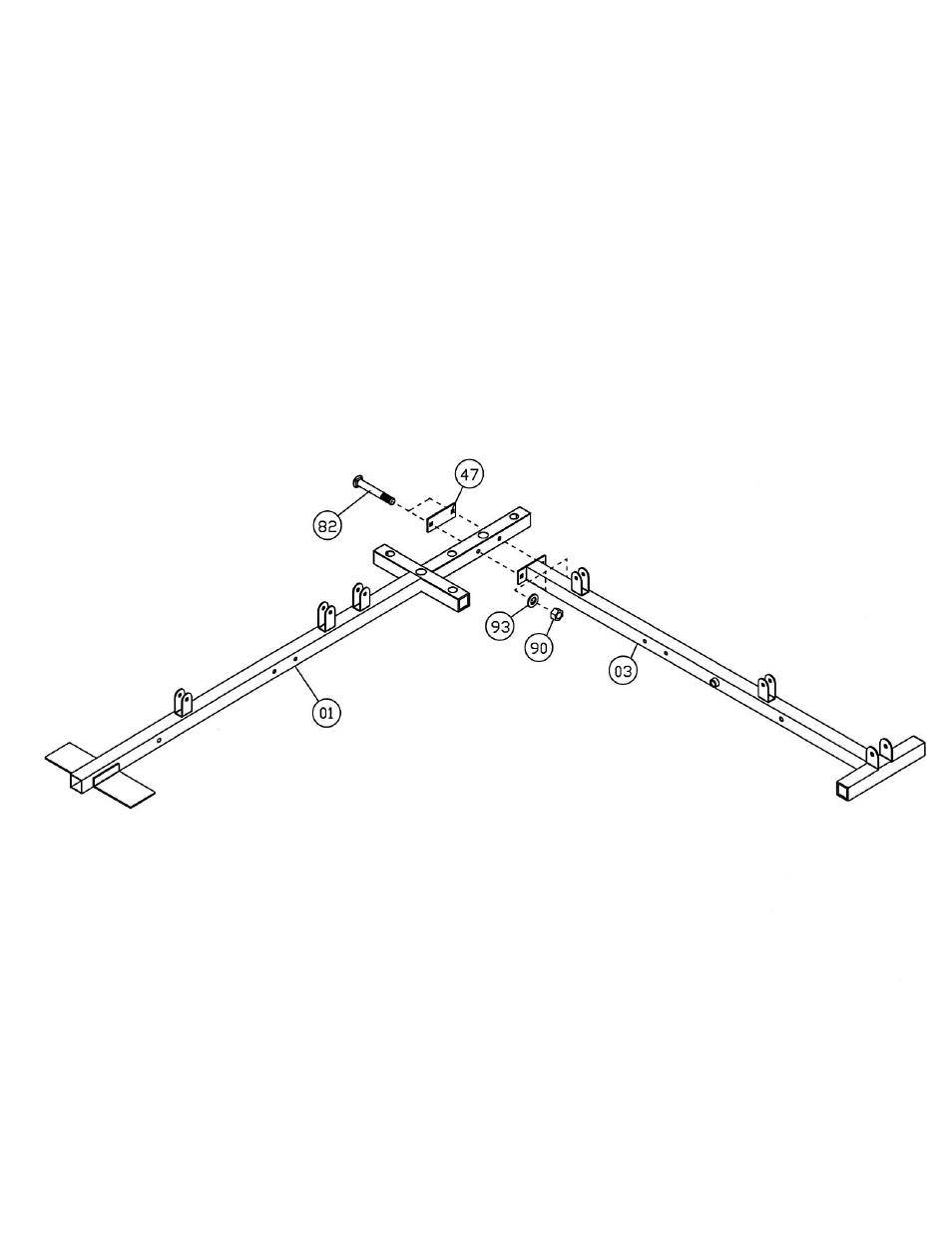

DIAGRAM 1
5
