Diagram 14 – Impex MWM 1801 User Manual

Page 25

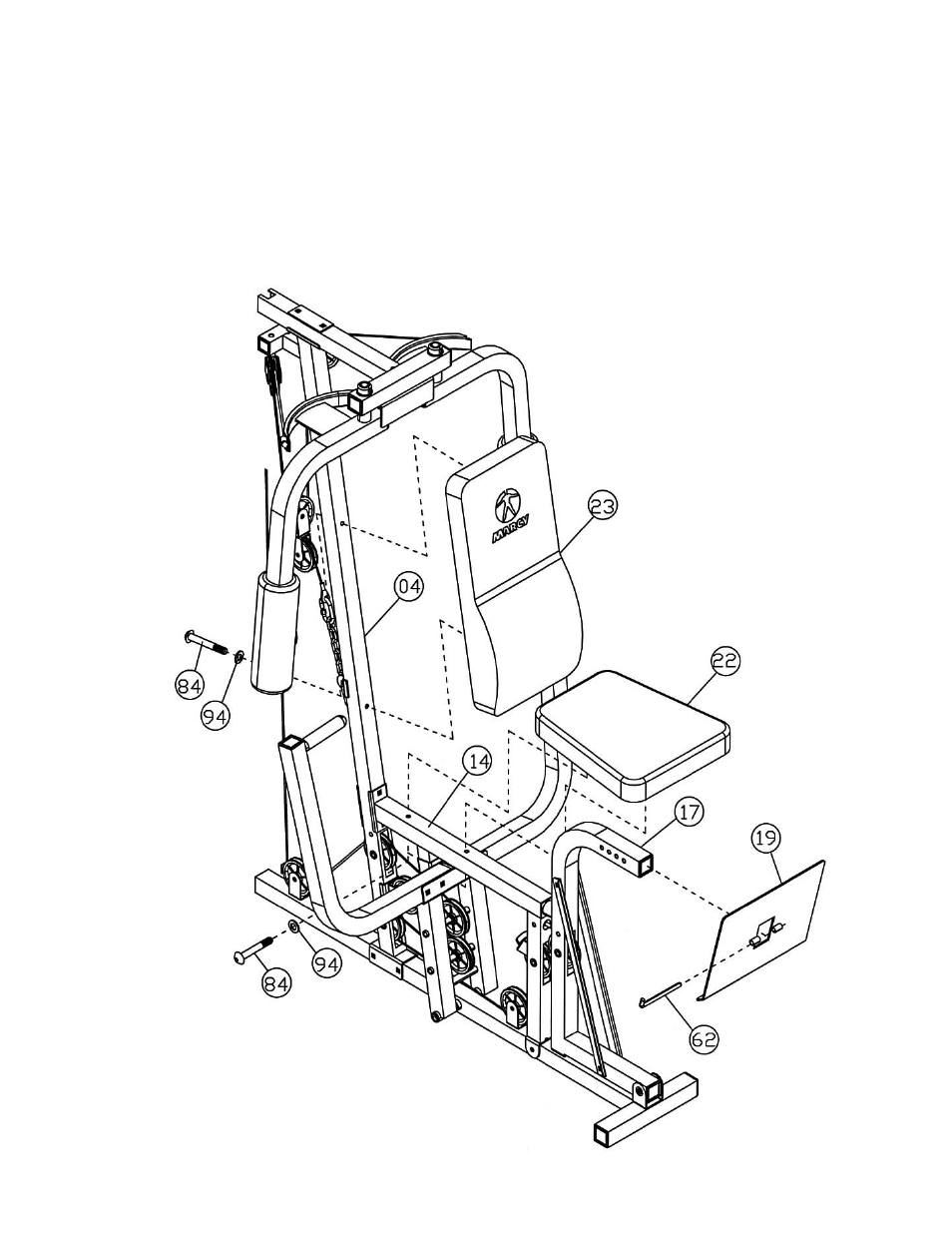

STEP 14 (See Diagram 14)

A.) Attach a Backrest Board (#23) to the Left Vertical Beam (#4). Secure it with two M8 x 2 1/8”

Allen Bolts (#84) and

∅

5/8” Washers (#94).

B.) Place the Seat (#22) onto the Left Seat Support (#14). Secure it with two M8 x 2 1/8” Allen

Bolts (#84) and two

∅

5/8” Washers (#94).

C.) Attach the Leg Press Plate (#19) to the Leg Press Frame (#17). Secure it with a L-Shaped

Pin (#62).

DIAGRAM 14
