Rear view – InFocus DISPERINDAG IN3118HD User Manual
Page 11
IN3118HD User’s Manual

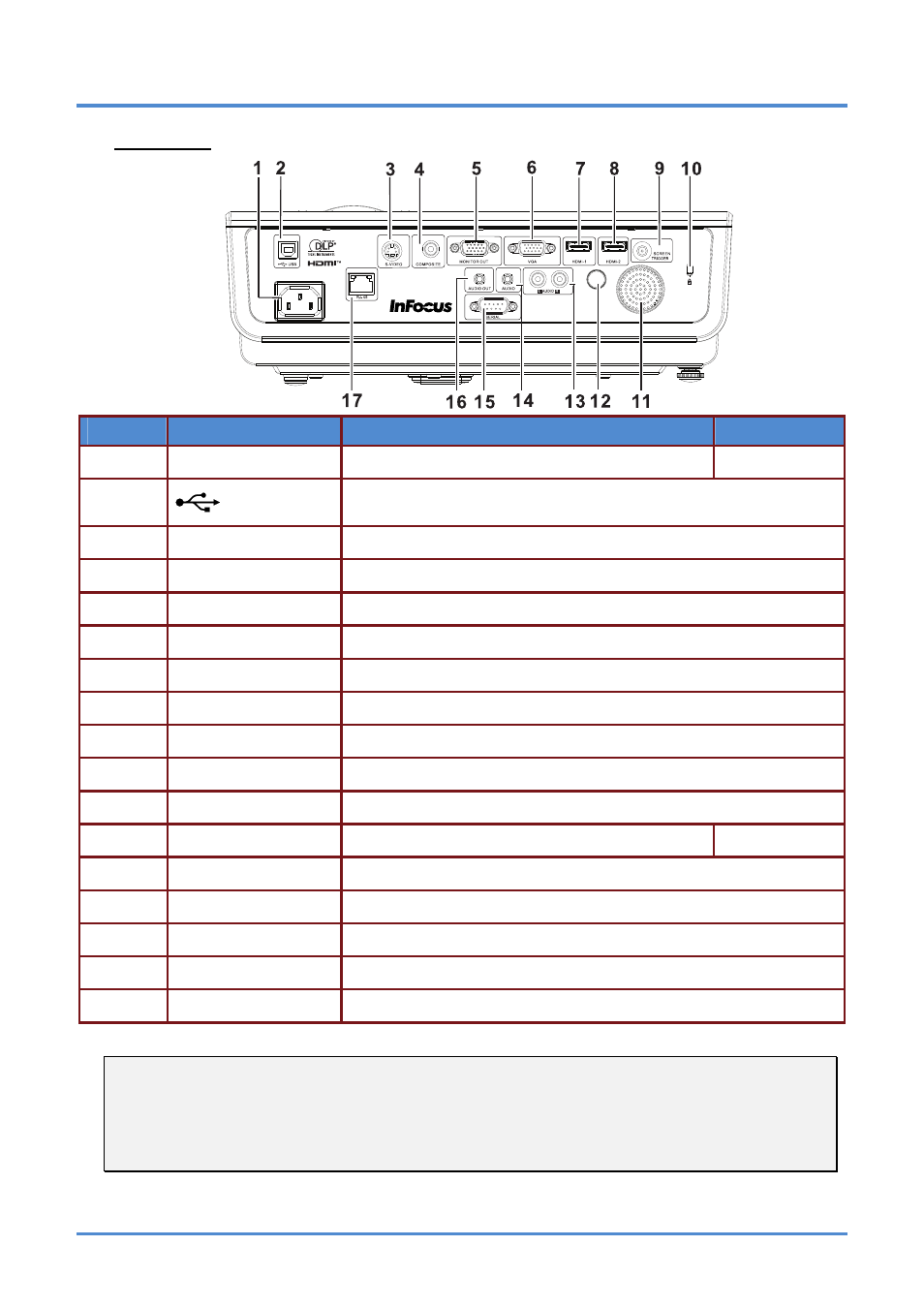

Rear view
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
AC IN
Connect the POWER CABLE
2.
(USB)
Connect the USB CABLE from a computer
(used for presentation slide control with the projector remote)
3.
S-VIDEO IN
Connect the S-VIDEO CABLE from a video device
4.
VIDEO IN
Connect the COMPOSITE CABLE from a video device
5.
VGA OUT
Connect the RGB CABLE to an external monitor
6.
VGA IN
Connect the RGB CABLE from a computer
7.
HDMI – 1
Connect the HDMI CABLE from an HDMI device
8.
HDMI – 2
Connect the HDMI CABLE from an HDMI device
9.
DC 12V TRIGGER
Connect a 12V screen trigger (200ma max)
10.
Security Lock
Secure to permanent object with a security lock system
11.
Speaker
Outputs the projector audio
12.
IR receiver
Receives the remote control IR signal
13.
AUDIO IN (L and R)
Connect the AUDIO CABLES from an input device
14.
AUDIO IN
Connect an AUDIO CABLE from an input device
15.
RS-232C
Connect RS-232 serial port cable for command control
16.
AUDIO OUT
Connect an AUDIO CABLE to external speaker system
17.
RJ – 45
Connect a LAN CABLE for networking purposes
Note:
If your video equipment has various input sources, it is recommended to connect in priority of
HDMI, component, S-Video, Composite for better picture quality.
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
– 4 –
