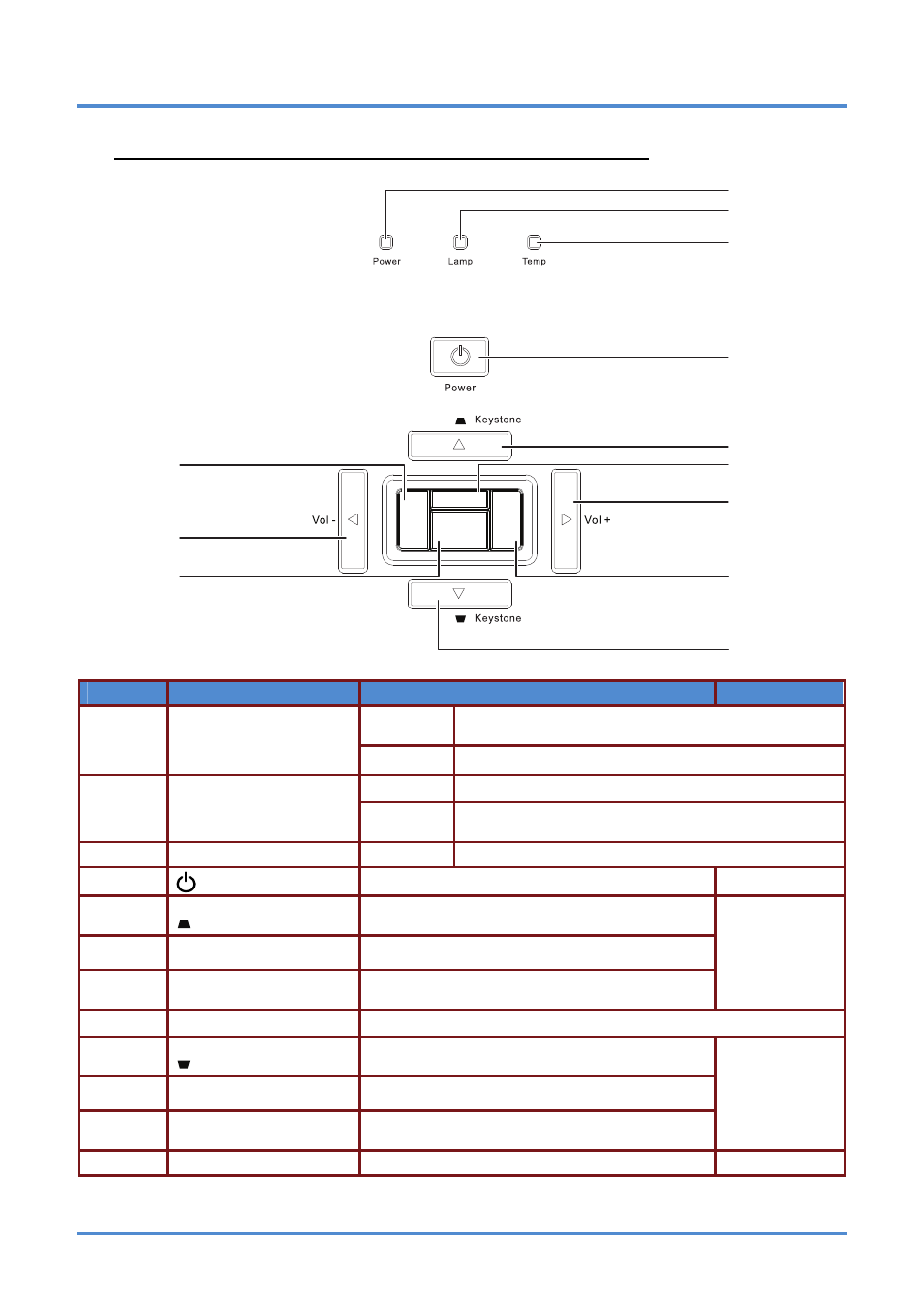

Top view—On-screen Display (OSD) buttons and LEDs
Source
Menu
Enter
Re-sync
11
10
12
1
2
4
5
6
3
7
8
9
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
Solid
Green
Power On / Standby
1.
Power LED
Off
Power Off (AC Off)
Solid Red
The lamp is powered on.
2.
Lamp LED
Flashing
Red
The lamp is warming up or cooling down.
(see LED Error Messages on page 38)
3.
Temp LED
Solid Red
Error code (see LED Error Messages on page 38)
4.
(Power button)
Turn the projector On or Off.
5.
▲ (Up cursor) /
Keystone
Navigate the OSD
Quick Menu – For Keystone
6.
Menu
Open and exit OSD menus
7.
► (Right cursor) /
Vol+
Navigate and change settings in the OSD
Quick Menu – For Volume
8.
Re-sync
Optimize image size, position, and resolution
9.
▼ (Down cursor) /
Keystone
Navigate the OSD
Quick Menu – For Keystone
10.
Enter
Enter or confirm highlighted OSD menu item
11.
◄ (Left cursor) /
Vol-
Navigate and change settings in the OSD
Quick Menu – For Volume
12.
Source
Enter the Source menu
