INSTALLATIONS
MB899 User’s Manual 25

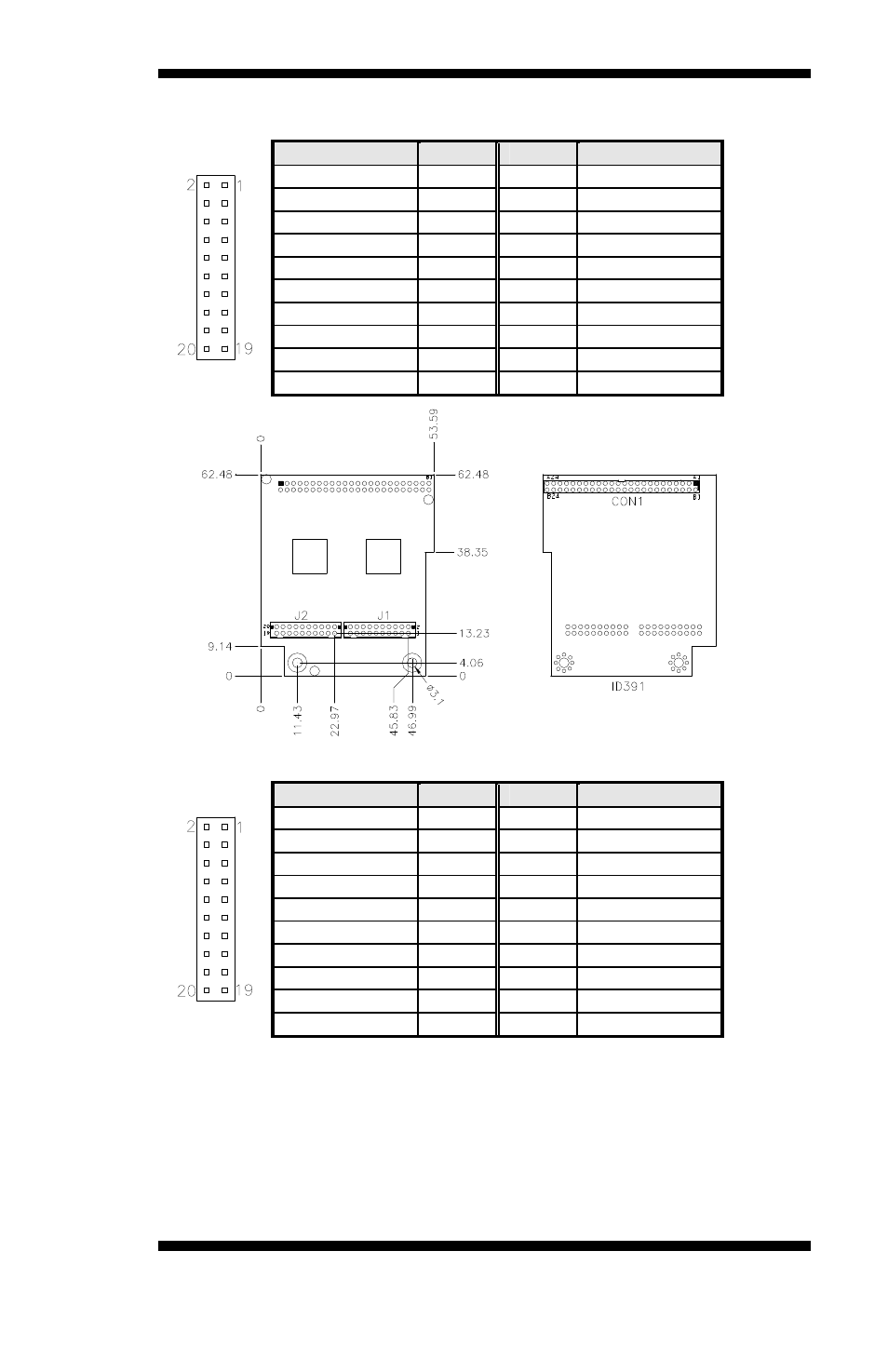

ID391 – J2 DVI Connector
Signal Name Pin # Pin # Signal Name
TDC1- 2 1 TDC1+
Ground 4 3 Ground
TLC- 6 5 TLC+
+5V 8 7 Ground
NC 10 9 HPDET
TDC2- 12 11 TDC2+
Ground 14 13 Ground
TDC0- 16 15 TDC0+
NC 18 17 NC
DDC_SC 20 19 DDC_SD
ID391D – J1, J2 1
st
/2
nd
DVI Connectors
Signal Name Pin # Pin # Signal Name
TDC1- 2 1 TDC1+
Ground 4 3 Ground
TLC- 6 5 TLC+
+5V 8 7 Ground
NC 10 9 HPDET
TDC2- 12 11 TDC2+
Ground 14 13 Ground
TDC0- 16 15 TDC0+
NC 18 17 NC
DDC_SC 20 19 DDC_SD
Remarks: When using dual DVI, the first DVI video output is through J1. After
setting the drivers in Windows, then the second DVI output (via J2) will
function. ID391D and ID391 are different since the latter (ID391) has video
output via J2. The pin assignments of J1 and J2 are the same.
