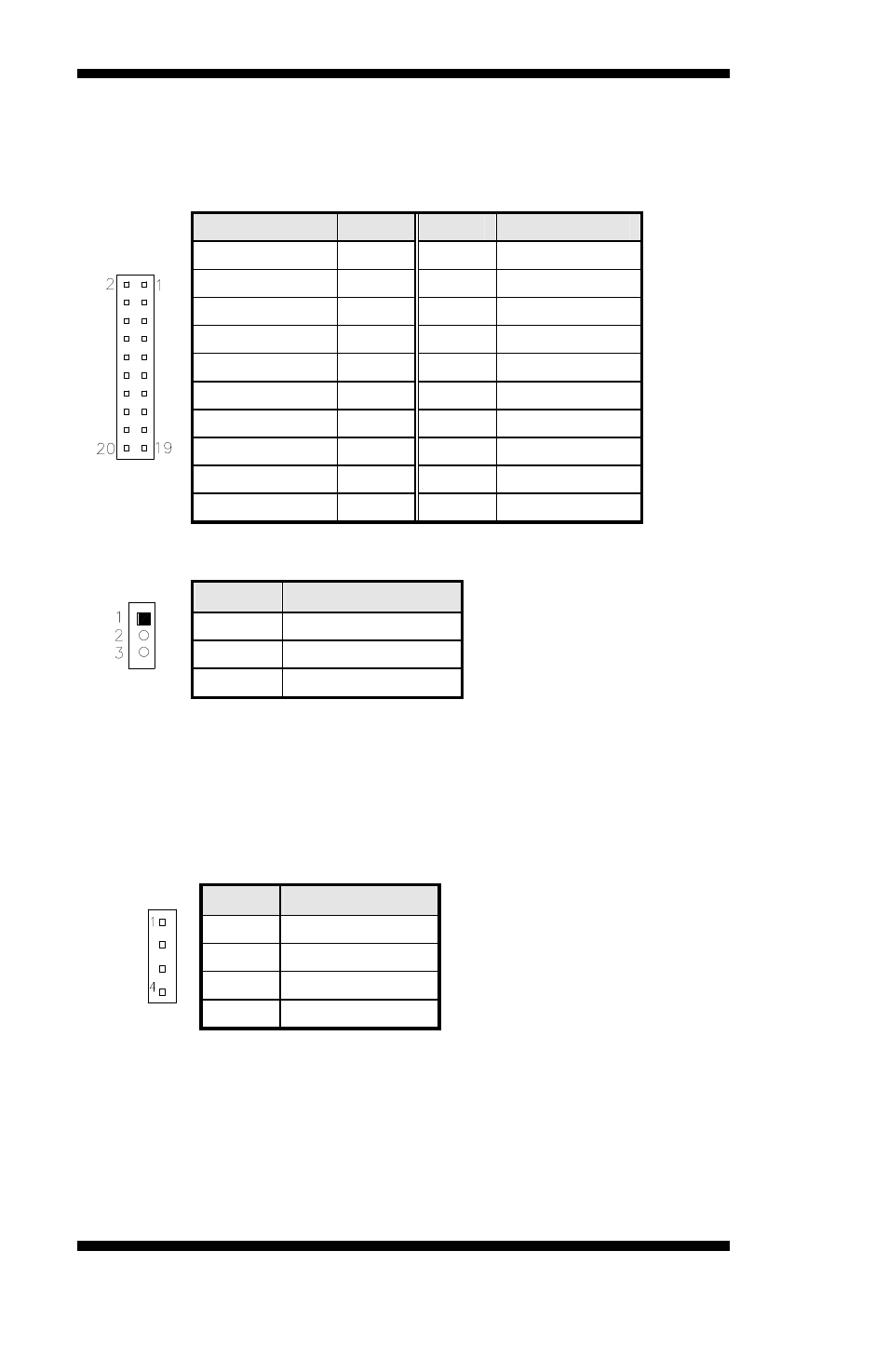

J9, J10: LVDS Connectors (1st channel, 2nd channel)
The LVDS connectors on board consist of the first channel (J9) and
second channel (J10) and supports 18-bit or 36-bit.
Signal Name Pin #
Pin #
Signal Name
TX0-
2
1
TX0+
Ground
4
3
Ground
TX1-
6
5
TX1+
5V/3.3V
8
7
Ground
NA
10
9
NA
TX2-
12
11
TX2+
Ground
14
13
Ground
TXC-
16
15
TXC+
5V/3.3V
18
17
ENABKL
+12V
20
19
+12V
J11: LCD Backlight Connector
Pin #
Signal Name
1
+12V
2
Backlight Enable
3
Ground
J13: Mini PCI Connector
U36: Mini PCI- E(x1) Connector (bottom side)
J15: Speaker Connector
The J15 connector supports 2W/8ohm stereo audio power amplifier.
Pin #
Signal Name
1
Audio L
2
Ground
3
Ground
4
Audio R
