11 SEAT-TO-FLOOR
Invacare ® Tracer™ EX2 Wheelchair 58 Part No 1110546
8-INCH FRONT CASTERS

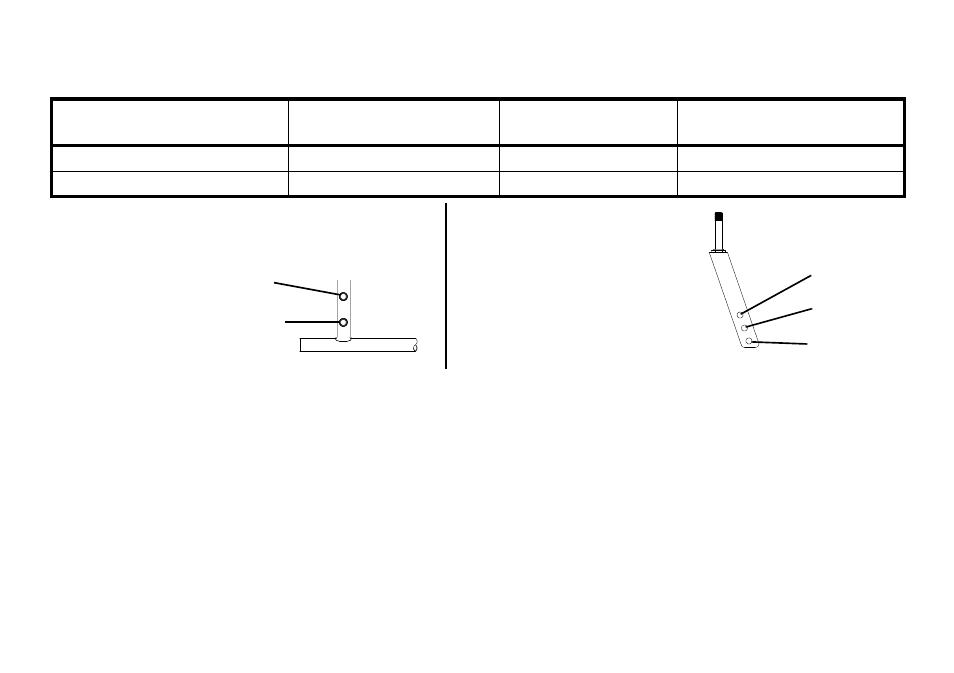

FIGURE 1 Changing Seat-to-Floor Height
SEAT-TO-FLOOR HEIGHT
(IN INCHES)
FRONT CASTER
MOUNTING POSITION
REAR WHEEL SIZE REAR WHEEL
MOUNTING POSITION
17½ Top 24 inch Top
19½ Bottom 24 inch Bottom
DETAIL “A” -
REAR WHEEL MOUNTING POSITIONS -
ADULT/HEMI FRAME STYLE
DETAIL “B” - 8 INCH FORK
MOUNTING POSITIONS
Top
Bottom
Top
Bottom
Middle
