5 FRONT RIGGINGS
Invacare ® Tracer™ EX2 Wheelchair 36 Part No 1110546
5.4 Installing Impact Guards/Calf Strap
1. Remove impact guard/calf strap from packaged container if not already secured to the footrest.
2. Secure one impact guard to each footrest.
3. Secure one side of the calf strap around each footrest (with the impact guards attached, if present).

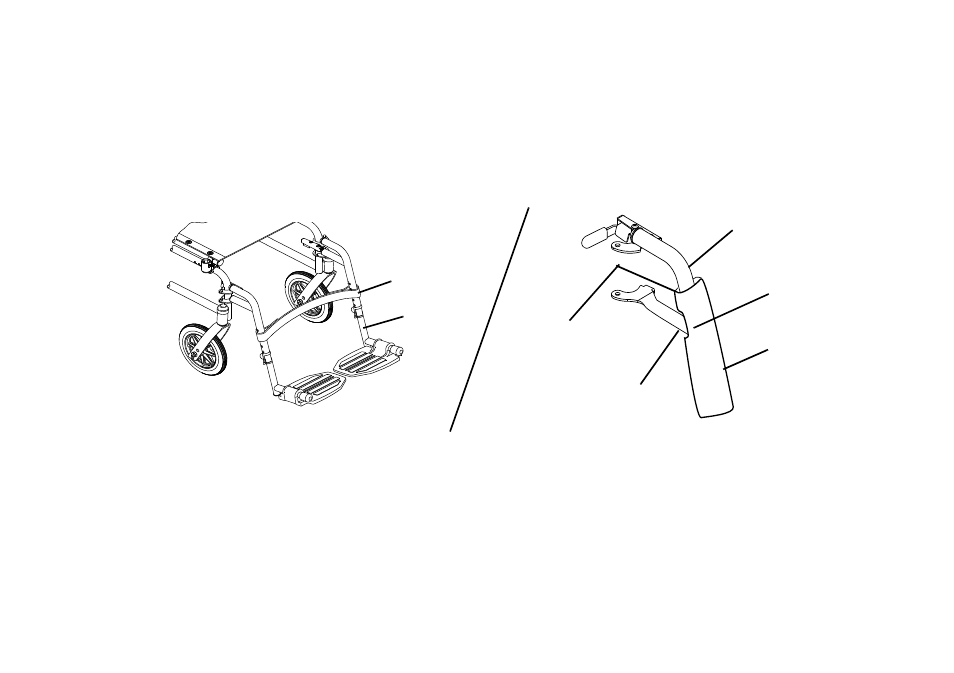

FIGURE 6 Installing Impact Guards/Calf Strap

Ensure the upper portion of the impact guard is between the two horizontal supports of the footrest.
Calf Strap
Footrest
Horizontal Support
Upper Portion of Impact
Guard Impact
Guard
Notch
Horizontal
Support
