12
Insignia NS-27LCD 27” LCD TV
www.insignia-products.com

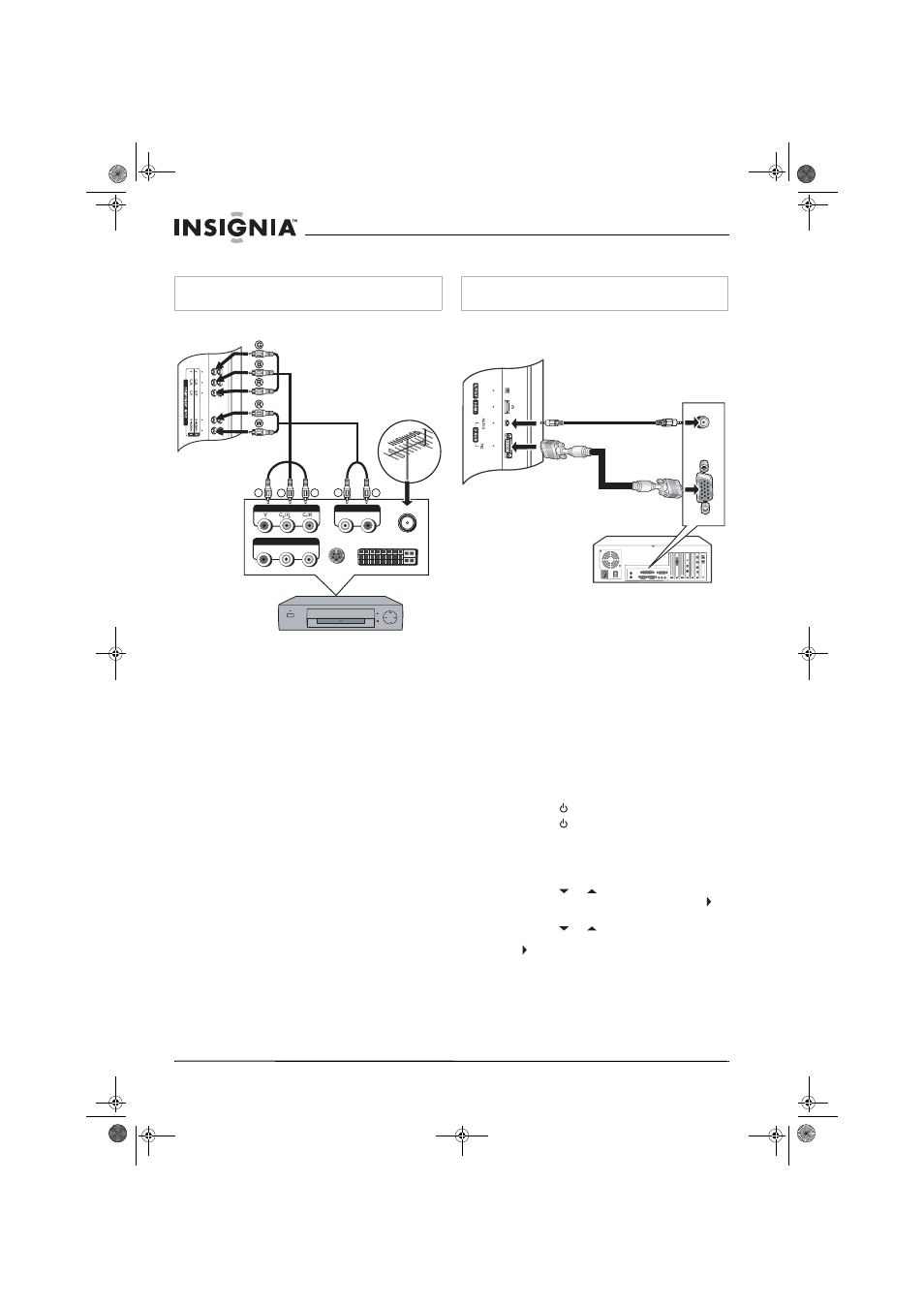

Connecting a DTV receiver
To watch your DTV:
1 Turn on your TV.
2 Press the INPUT button one or more times to
select Component1.
3 Turn on your DTV receiver.
Connecting a computer
Use the following illustration to connect a
computer to your TV.
To watch TV on your computer monitor:
1 Turn on your TV.
2 Press the INPUT button one or more times to
select VGA.
3 Turn on your computer, then set up your
computer for external VGA input. See your
computer documentation for more
information.
Using your TV
Turning your TV on and off
To turn on your TV:
1 Make sure that the power cord is connected
to your TV and an electrical outlet.
2 Press the button to turn on your TV.
3 Press the button again to turn off your TV
Selecting the TV source
To select the TV source:
1 Press the MENU button.
2 Press the or button one or more times
to highlight Setup, then press the OK or
button to open the Setup menu.
3 Press the or button one or more times
to highlight Tuning Band, then press the OK
or button to access the tuning band
options.
Warning
Make sure that you turn off and unplug your TV before
installing devices.
G W R B R
S-VIDEO
ANT IN
L - AUDIO - R VIDEO
DVI
L - AUDIO - R
AUDIO
AV OUT
COMPONENT
G=green (Y)
W=white (audio left)
R=red (audio right, Cr.Pr)
B=blue (Cb/Pb) TV
DTV receiver
Audio cable
Video cable
Warning
Make sure that you turn off and unplug your TV before
installing devices.
D SUB cable
Audio cable
TV
Computer
