11
Insignia NS-27LCD 27” LCD TV
www.insignia-products.com

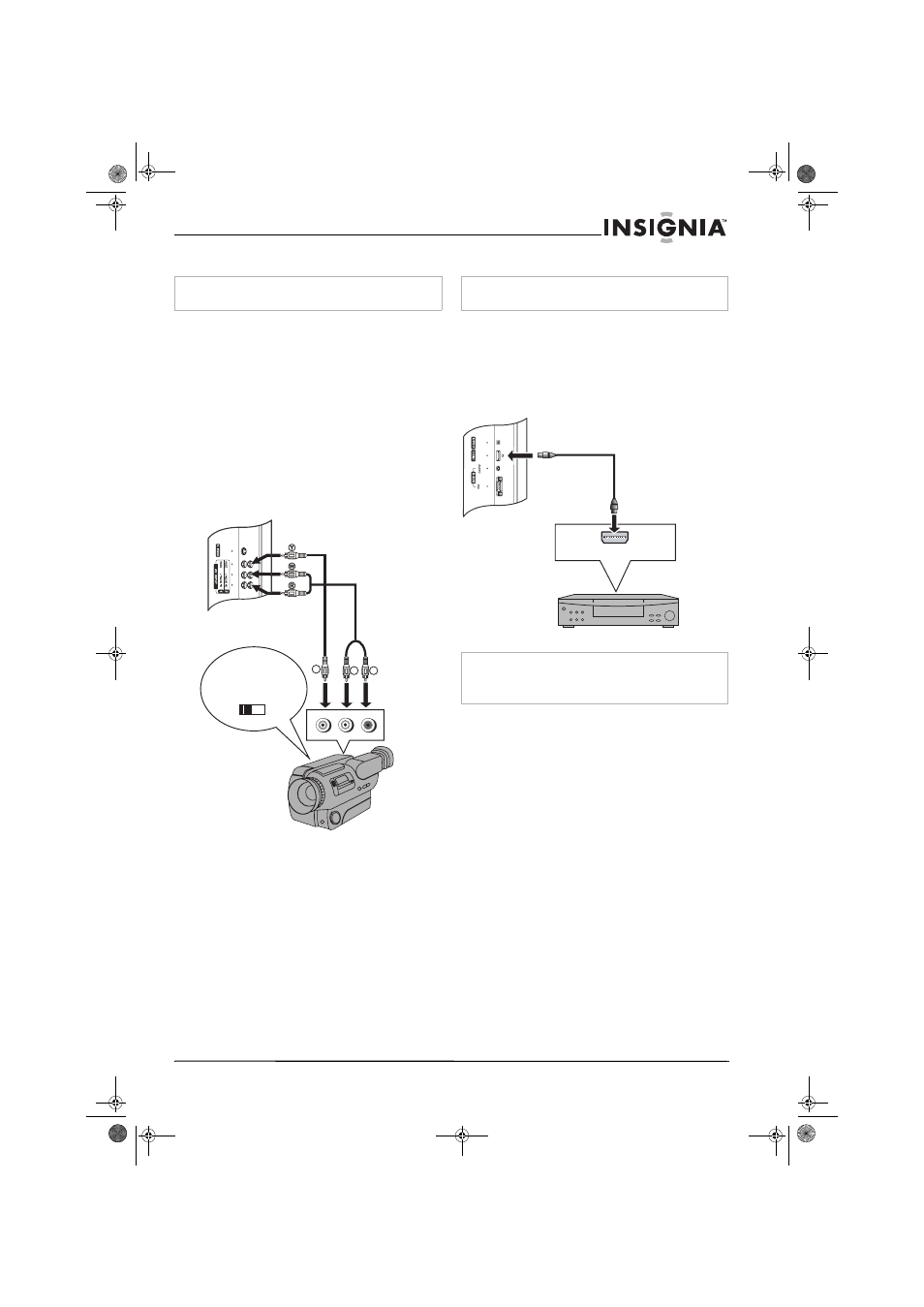

Connecting a camcorder
Use the following illustration to connect a
camcorder to your TV.
To connect a camcorder:
1 Plug the audio/video cable into the AUDIO L,
AUDIO R, and VIDEO jacks ont the back of
your TV.
2 Plug the other end of the audio/video cable
into the audio and video out jacks on the
camcorder.
To playback from the camcorder:
1 Turn on your TV.
2 Press the INPUT button one or more times to
select Composite2.
3 Turn on the camcorder, then set it to output
mode. See your camcorder documentation
for more information.
4 Insert a tape into the camcorder, then press
the Play button.
Connecting a DVD player
Use the following illustration to connect a DVD
player to your TV.
To connect a DVD player:
• Plug the HDMI cable into the HDMI jack
on the back of your TV and to the HDMI
out jack on the back of the DVD player.
To play a DVD:
1 Turn on your TV.
2 Press the INPUT button one or more times to
select HDMI.
3 Turn on the DVD player.
4 Insert a DVD, then press the Play button.
Warning
Make sure that you turn off and unplug your TV before
installing devices.
VIDEO L- AUDIO - R
Y W R
TV
Y=yellow (video)
W=white (audio left)
R=red (audio right)
Video cable Audio cable
Camcorder
OUT IN
Warning
Make sure that you turn off and unplug your TV before
installing devices.
Note
If the DVD player has DVI output only, use a DVI to HDMI
adapter cable (not supplied) to connect the DVD player to the
HDMI jack on the back of your TV. Then connect the audio
cable to the D-SUB AUDIO IN jack on the back of your TV.
TV
DVD player
HDMI
Output
