2 serial printer cabling – IBM SpotLine M110 User Manual
Page 46
46
Pin 3 TD Transmit Data
Pin 2 RD Receive Data
Pin 5 GND Ground
Pin 4 DTR Data Terminal Ready

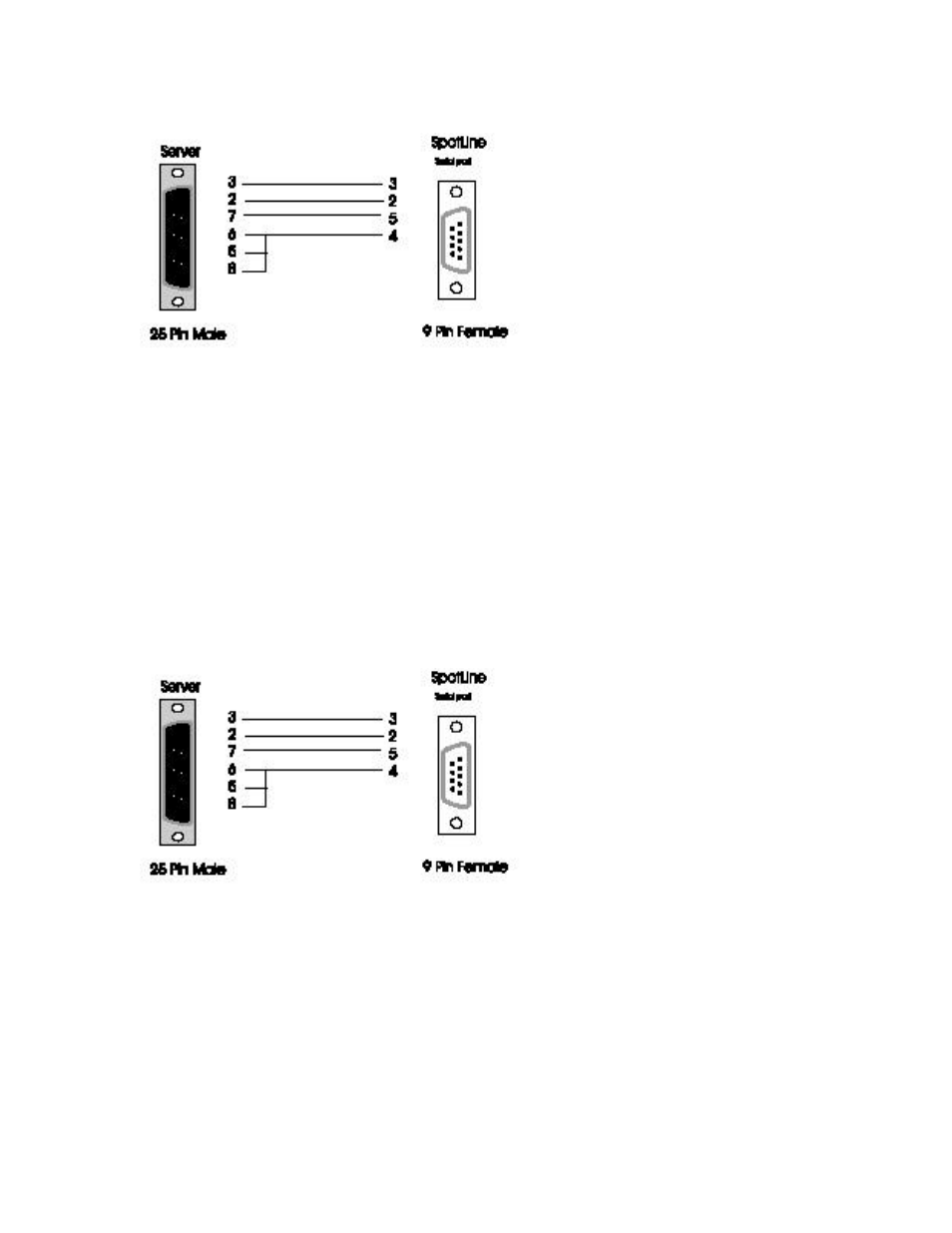

25 Pin Serial Server (Male) to 9 Pin Serial Port 1 or 2
6.2 Serial Printer Cabling
Pin 2 RD Receive Data
Pin 3 TD Transmit Data
Pin 5 GND Ground
Pin 4 DTR Data Terminal Ready
Pin 6 DSR Data Set Ready
25 Pin Serial Printer (Male) on 9 Pin Seria l Port 1 or 2
