6
www.insignia-products.com

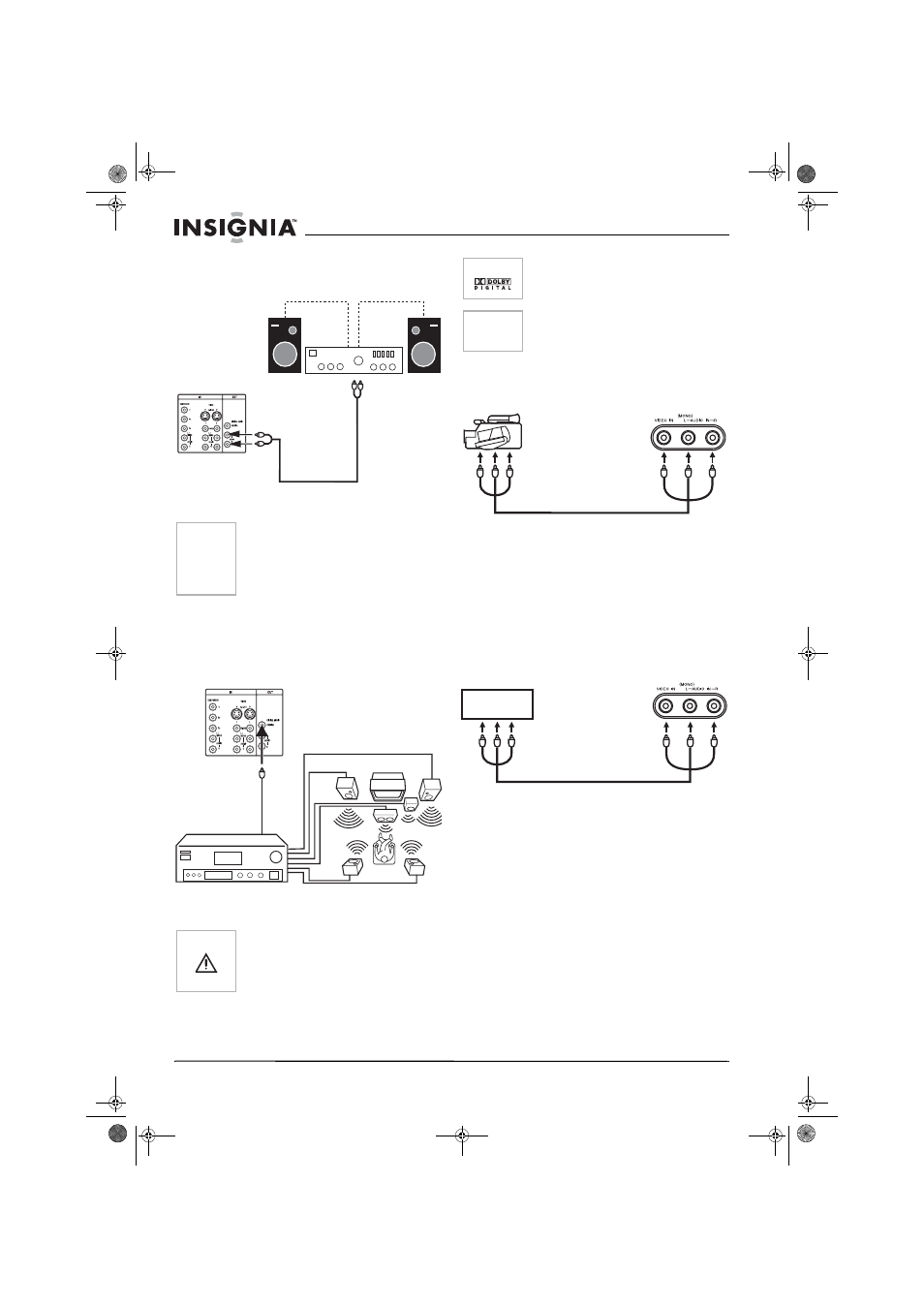

To control the audio, turn on your TV and the
stereo amplifier, and turn off your TV’s built-in
speakers (see “Turning off the built-in speakers”
on page 22).
Using an AV amplifier with built-in digital
surround sound
If you are using an amplifier with built-in digital
surround sound as follows, you can enjoy
various audio systems including Dolby Digital
Surround audio that sounds just like the movie.
Connecting your TV to a camcorder
To playback from a camcorder, connect the camcorder
to your TV as shown.
Connecting your TV to a Game
You can also use your TV as a display device for
many video games. However, due to the wide
variety of signals generated by these devices
and subsequent hook-up variations required,
they have not all been included in the suggested
connection diagrams. You need to consult each
component's owner's manual for additional
information.
Note To hear sound when using an external audio
amplifier, the volume of both your TV and the
amplifier must be set above 0 (zero).
For example, if the volume of your TV is set to 0,
you will not be able to hear any sound, even if the
volume of the amplifier is at its highest level.
Caution When you make the above connection, do not set
DOLBY DIGITAL to DOLBY DIGITAL“ON” on the
AV Amplifier. If you do, the speakers will emit a
loud noise, possibly causing damage to your
hearing or to the speakers.
Audio cable (not
supplied)
To Audio (L) input
jack
Amplifier
TV back To Audio (R) input
jack
To Audio (L) output
jack
To Audio (R) output
jack
TV
Coaxial digital cable (not
supplied)
To Coaxial Digital Audio
IN jack
To Coaxial Digital Audio OUT jack
AV amplifier with built-in
digital surround decoder
TV back
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
Note This unit does not have DTS audio out. There will
be no sound output if connected to an AV
amplifier with a built-in DTS decoder.
To Audio/Video
OUT jacks
Camcorder
Audio/Video cable (not
supplied)
Front of TV
TV GAME
To Audio/Video OUT
jack
Audio/Video cable (not
supplied)
Front of TV
