1 flash rom, Figure 12. flash connection to peripheral bus – Intel IQ80333 User Manual
Page 46
46
Customer Reference Board Manual
Software Reference
4.2.1
Flash ROM
The Flash ROM is an 8 MB Intel StrataFlash
®
(part# 28F640) that sits on the Peripheral Bus and is
accessed using PCE0.
Under normal operation, the very first instruction access by the Intel XScale
®
core begins at location
0x0 on the 80333 Internal Bus. By default, address 0x0 is pointing to PCE0 where Flash is located.
Currently, the Intel Flash Recovery Utility (FRU) can be used with the IQ80333. Another alternative
to FRU would be to reprogram the Flash through JTAG or using Redboot commands, when Redboot
is currently loaded onto the board. For more information on using Redboot to program the Flash,
please see Redboot Manual.

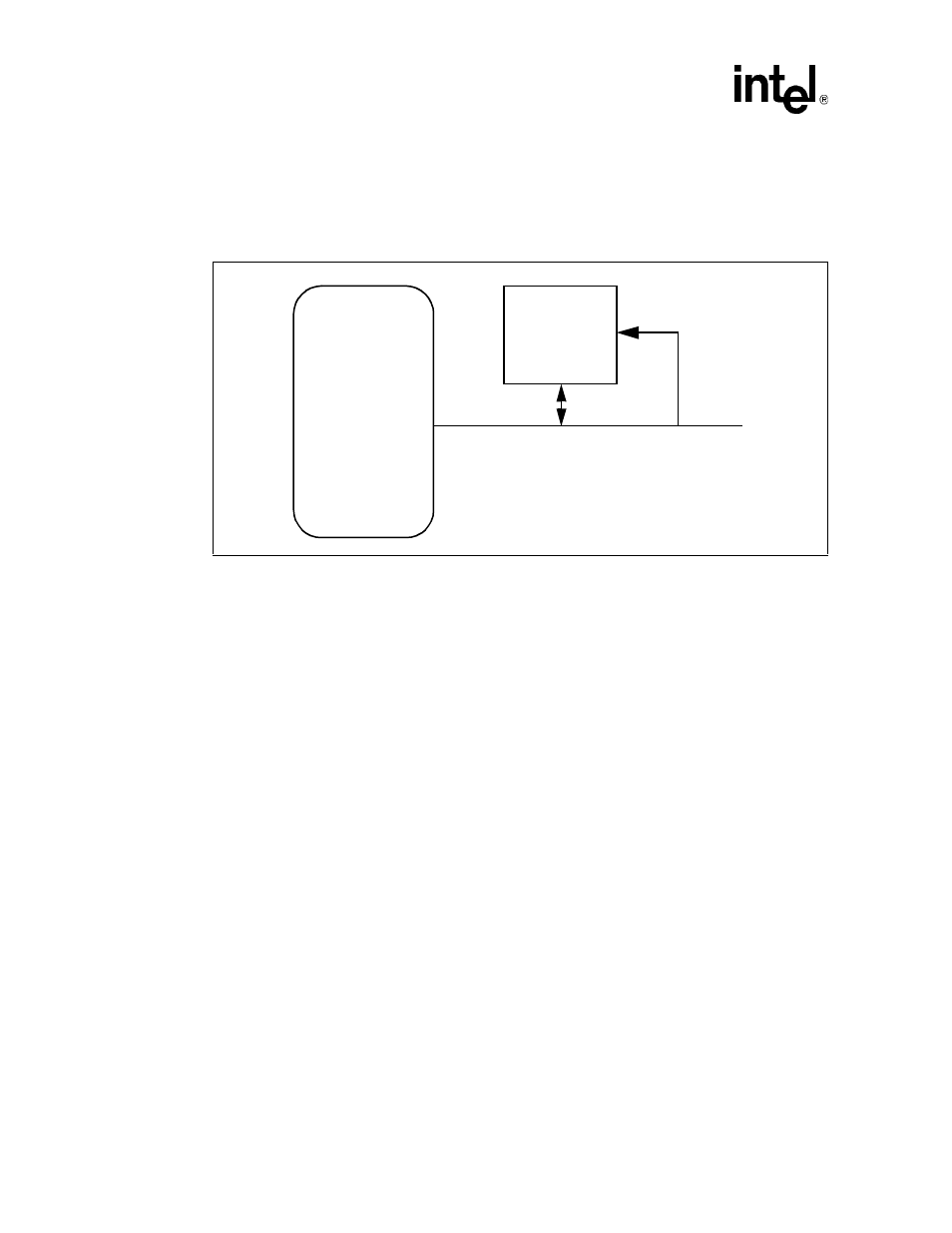

Figure 12.
Flash Connection to Peripheral Bus
Intel
®
80333
I/O Processor
CS
PC
E0
Flash
28F640J3C
16-bit
8 Mb
Intel
®
80333 I/O Processor
