Intel Desktop Boards D865GBF/D865GLC Product Guide
84
Add-In Card and Peripheral Interface Connectors

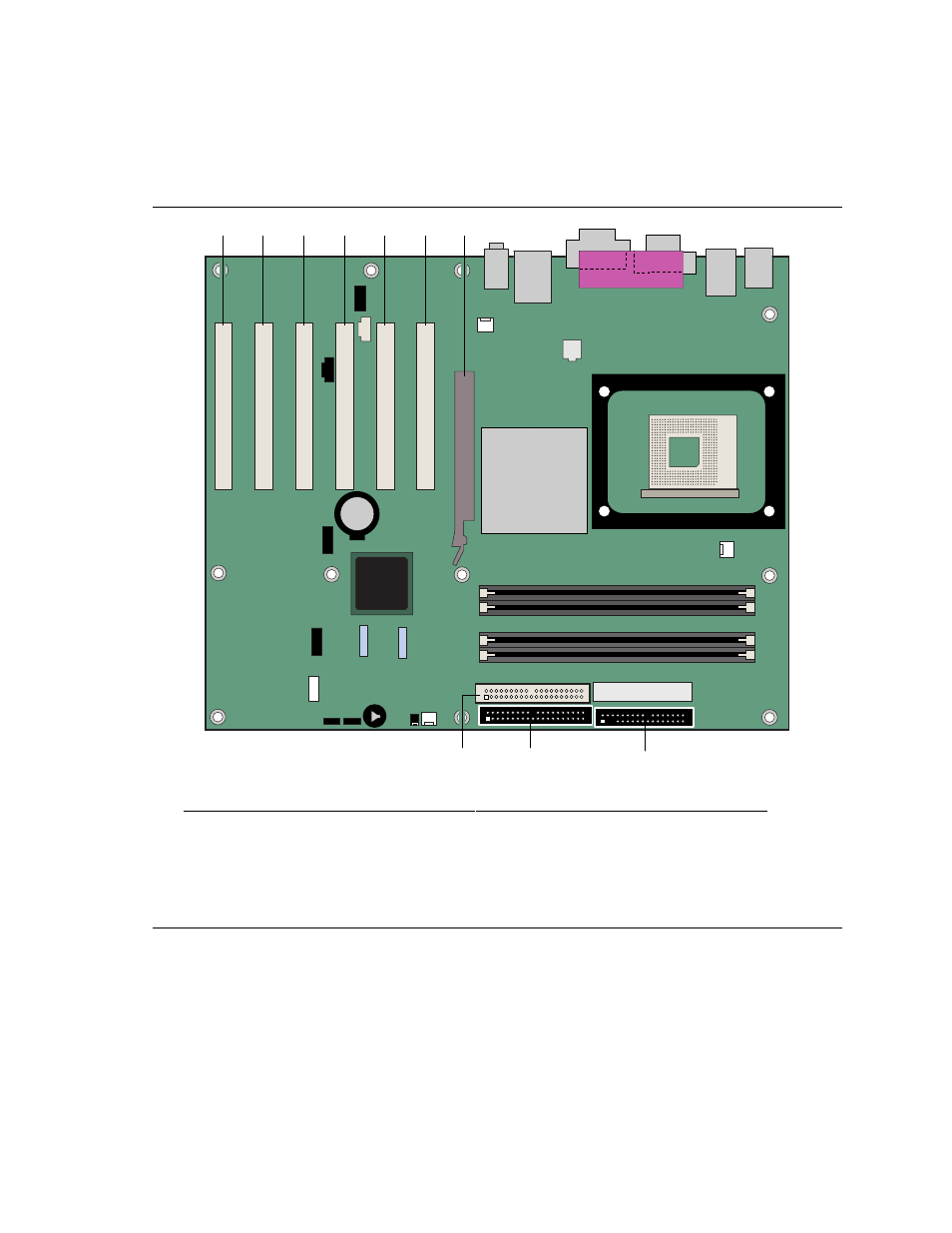

Figure 20 shows the PCI bus add-in card and peripheral interface connectors for Desktop Board
D865GBF. Desktop Board D865GLC has three PCI bus add-in card connectors.
OM15238
B
C
G
H
J
I
A
E
F
D
OM15238
Item Description
Item Description
A
PCI bus add-in card connector 6
F
PCI bus add-in card connector 1
B
PCI bus add-in card connector 5
G
AGP
C
PCI bus add-in card connector 4
H
Floppy drive
D
PCI bus add-in card connector 3
I
Primary IDE
E
PCI bus add-in card connector 2
(SMBus routed)
J Secondary
IDE
Figure 20. PCI Bus Add-in Card and Peripheral Interface Connectors
